Ominaisuudet

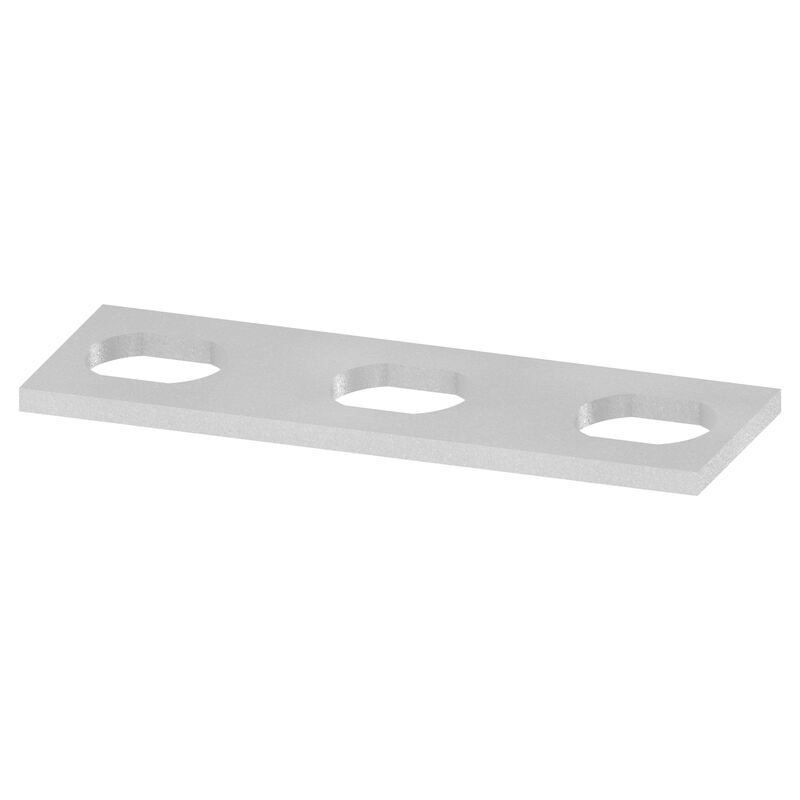

| Version | Cross-connector (terminal), when screwed in, grey, 99 A, Number of poles: 3, Pitch in mm (P): 6.00, Insulated: No, Width: 17.2 mm |
| Order No. | 0156000000 |
| Type | QL 3 SAK2.5 |
| GTIN (EAN) | 4008190027360 |
| Qty. | 100 items |
| Depth | 0,6 mm |
| Depth (inches) | 0,024 inch |
| Height | 6 mm |
| Height (inches) | 0,236 inch |
| Width | 17,2 mm |
| Width (inches) | 0,677 inch |
| Net weight | 0,375 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Copper |
| Colour | grey |
| Version | for cross-connection link |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Number of cross-connected terminals | 3 |
| Rated current, 2-pole | 41 A |
| Rated current, multi-pole | 41 A |
| Type | Cross-connector |
| Pitch in mm (P) | 6 mm |
| Installation advice | Direct mounting |
| Number of poles | 3 |
| Rated current | 99 A |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0156000000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| ROHS | Conform |
Lisävarusteet
-
Tuotteen tunnus:0266700000VPE:100 items
Connecting sleeve (terminal), when screwed in, Width: 4.9 mm, Height: 4.9 mm, Depth: 8 mm, Number of poles: 1, Copper
-
