Ominaisuudet
| Version | Interface, RS, 2-wire, Screw connection |
| Order No. | 9448030000 |

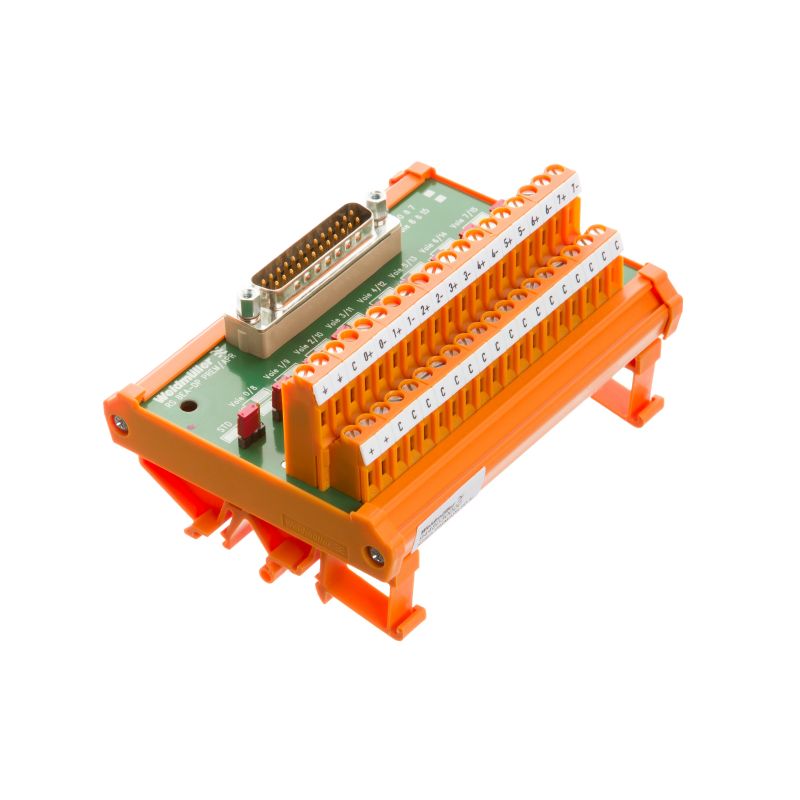

| Type | RS 8AI PREM/APR SD S |
| GTIN (EAN) | 4032248253333 |
| Qty. | 1 items |
| Depth | 72 mm |
| Depth (inches) | 2,835 inch |
| Height | 87 mm |
| Height (inches) | 3,425 inch |
| Width | 116 mm |
| Width (inches) | 4,567 inch |
| Net weight | 206,8 g |
| Storage temperature | -40...60 °C |
| Operating temperature | -20...50 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6aI, 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 7b5ffb72-271d-4c73-8b09-bd0aaee3697a |
| Operating temperature UL, max. | 50 °C |
| Operating temperature UL, min. | 0 °C |
| Rated current Imax | 0,5 A |
| Rated voltage UN | ≤ 25 V AC 50 V DC |
| Rated voltage DC UN (supply) | 24 V |
| Rated current (supply) | 3 A |
| LED status display per channel | No |
| Disconnection per channel | Yes |
| Voltage point of measurement | No |
| Current-measuring testpoint | No |
| Type of test point | No |
| LED status of the supply voltage | No |
| Power supply fuse | No |
| Common pole polarity | Positive or negative can be selected using jumper |
| Connection on control side | D-sub connectors, acc. to IEC 60807 / DIN 41652 |
| Connection supply | LL2N 5.08 mm |
| Number of poles (control side) | 25-pole plug |
| Protective earth connection | Shielding in SUB-D plug-in connector |
| Wiring system | 2-wire |
| Operating voltage | ≤ 25 V AC / 50 V DC |
| Max. current for common pole | 3.15 A |
| Max. current per channel | 0,5 A |
| According to | DIN EN 50178 |
| Rated insulation voltage | <50 V AC |
| Surge voltage category | III |
| Pollution severity level | 2 |
| Pulse voltage test (1,2/50μs) | 0,8 kV |
| Insulation test voltage AC | 0,35 kV |
| Clamping range, max. | 6 mm² |
| Clamping range, min. | 0,13 mm² |
| Flexible with sleeve, max. | 2,5 mm² |
| Flexible with sleeve, min. | 0,5 mm² |
| Flexible, max. H05(07) V-K | 4 mm² |
| Flexible, min. H05(07) V-K | 0,5 mm² |
| Max. wire cross-section, AWG | AWG 12 |
| Min. wire cross-section, AWG | AWG 26 |
| Sleeve with plastic collar, max. | 2,5 mm² |
| Solid, max. H05(07) V-U | 6 mm² |
| Solid, min. H05(07) V-U | 0,5 mm² |
| Stripping length | 6 mm |
| Tightening torque, max. | 0,6 Nm |
| Tightening torque, min. | 0,5 Nm |
| Type of connection | Screw connection |
| Type of connection | Screw connection |
| Clamping range, min. | 0,13 mm² |
| Clamping range, max. | 6 mm² |
| Solid, min. H05(07) V-U | 0,5 mm² |
| Solid, max. H05(07) V-U | 6 mm² |
| Flexible, min. H05(07) V-K | 0,5 mm² |
| Flexible, max. H05(07) V-K | 4 mm² |
| Flexible with sleeve, max. | 2,5 mm² |
| Flexible with sleeve, min. | 0,5 mm² |
| Ferrule with plastic collar, max. | 2,5 mm² |
| Wire cross-section, min. AWG | AWG 26 |
| Wire cross-section, max. AWG | AWG 12 |
| Tightening torque, min. | 0,5 Nm |
| Tightening torque, max. | 0,6 Nm |
| Stripping length | 6 mm |
| Approval/Certificate/Document of Conformity | [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_153606) |
| Product Change Notification |
[20210310 Technical change to RS and RSM modules](https://mdcop.weidmueller.com/mediadelivery/asset/900_199735)
[20220525 Technical change to RS and RSM](https://mdcop.weidmueller.com/mediadelivery/asset/900_257205) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002780 |
| ETIM 7.0 | EC002780 |
| ETIM 8.0 | EC002780 |
| ETIM 9.0 | EC002780 |
| ECLASS 9.0 | 27-14-11-52 |
| ECLASS 9.1 | 27-14-11-52 |
| ECLASS 10.0 | 27-14-11-52 |
| ECLASS 11.0 | 27-14-11-52 |
| ECLASS 12.0 | 27-14-11-52 |
| ECLASS 13.0 | 27-14-11-52 |
| ECLASS 14.0 | 27-14-11-52 |
| Approvals |  |
| ROHS | Conform |
