RSM-16 FUS 1CO Z

RSM-16 FUS 1CO Z

Lataa tietosivu Samankaltaiset tuotteet

RSM-16 FUS 1CO Z

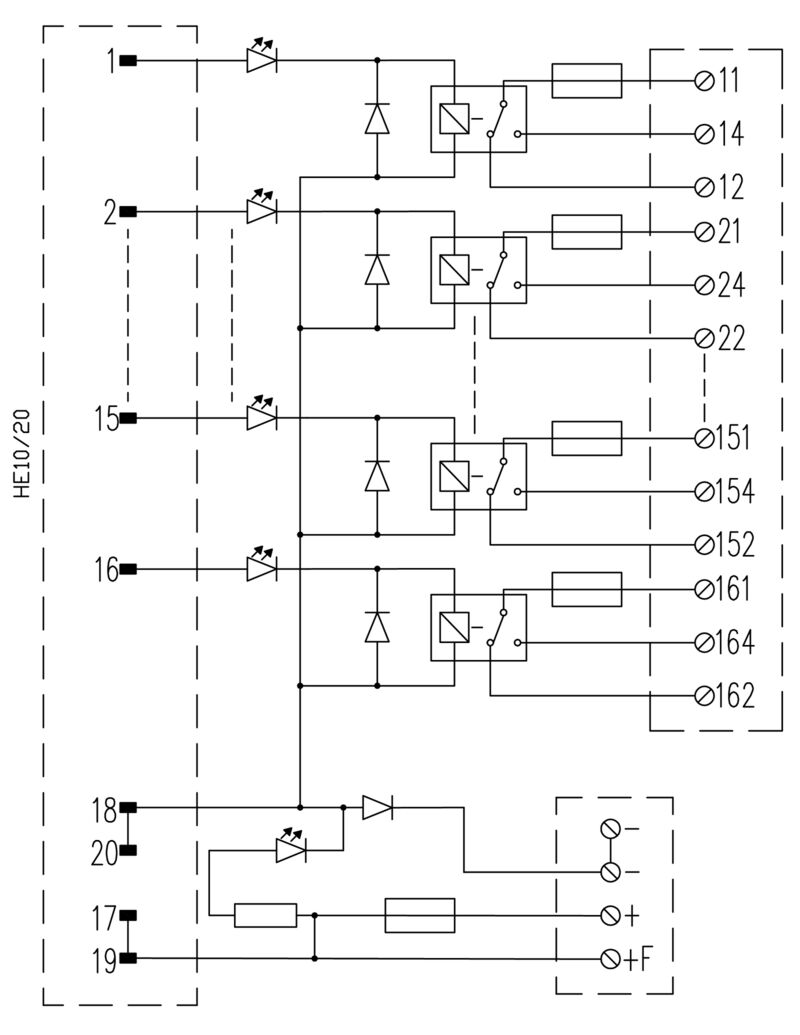

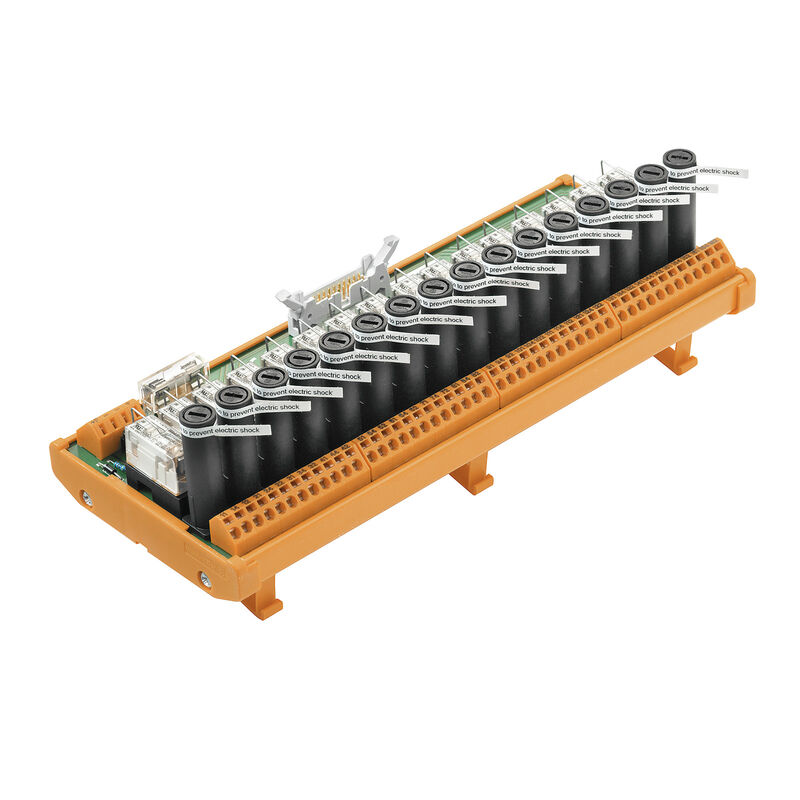

Interface, RSM, 16 with fuse, RCL, Tension-clamp connection

Tuotteen tunnus 9447120000

Ominaisuudet

General ordering data

Version	Interface, RSM, 16 with fuse, RCL, Tension-clamp connection
Order No.	9447120000
Type	RSM-16 FUS 1CO Z
GTIN (EAN)	4032248253128
Qty.	1 items

Dimensions and weights

Depth	75 mm
Depth (inches)	2,953 inch
Height	109 mm
Height (inches)	4,291 inch
Width	261 mm
Width (inches)	10,276 inch
Net weight	794,5 g

Storage temperature	-40...60 °C
Operating temperature	-25...40 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	7a, 7cI
REACH SVHC	Lead 7439-92-1 4,4'-isopropylidenediphenol 80-05-7
SCIP	66e752f3-a24f-4fef-89c4-f29f52d01390

Operating temperature UL, max.	25 °C
Operating temperature UL, min.	0 °C
Rated voltage DC U_N (supply)	24 V
Rated current (supply)	2 A
Rated current fuse (supply)	3,15 A
Rated current fuse (channel)	5 A
Rated voltage DC U_N (input)	24 V
Rated voltage AC U_N (output)	250 V
Rated current I_max (output)	5 A

LED status display per relay	green
Fuse per relay	5 A
LED status of the supply voltage	yellow
Power supply fuse	3.15 A

Connection data

Connection (field side)	LMNZF 5.08mm
Connection on control side	Plug-in connector in acc. with IEC60603-13 / DIN41651
Connection supply	LMNZF 5.08mm
Number of poles (control side)	20-pole plug

Mechanical service life

3 x 10⁷ switching cycles

Ratings data input

Input voltage	24 V DC ± 10%
Input current	20 mA
Power rating	0.4 VA

Ratings data output

Relay type	RCL
Type of output	Potential-free contact
Contact material	AgNi 90/10
Rated voltage	≤ 250 Vdc ≤ 250 Vac
Max. AC continuous current	5 A
AC peak current	16 A
Minimum contact current	0,01 A
Minimum contact voltage	10 V

Insulation coordinates (EN50178)

According to	DIN EN 50178
Rated input insulation voltage	<50 V AC
Rated output insulation voltage	<250 V AC
Overvoltage category input/input	III
Overvoltage category input/output	III
Overvoltage category output/output	II
Pollution severity level	2
Pulse voltage test (1,2/50μs)	6 kV
Insulation test voltage AC	1,2 kV
Clearance input/output	≥ 5.5 mm
Clearance input/input	≥ 0.2 mm
Clearance output/output	≥ 1.17 mm

Connection field

Clamping range, max.	1,5 mm²
Clamping range, min.	0,15 mm²
Flexible with sleeve, max.	1,5 mm²
Flexible, max. H05(07) V-K	1,5 mm²
Flexible, min. H05(07) V-K	0,5 mm²
Max. wire cross-section, AWG	AWG 14
Min. wire cross-section, AWG	AWG 26
Solid, max. H05(07) V-U	1,5 mm²
Solid, min. H05(07) V-U	0,5 mm²
Stripping length	7 mm
Type of connection	Tension-clamp connection

Supply connection

Type of connection	Tension-clamp connection
Clamping range, min.	0,15 mm²
Clamping range, max.	1,5 mm²
Solid, min. H05(07) V-U	0,5 mm²
Solid, max. H05(07) V-U	1,5 mm²
Flexible, min. H05(07) V-K	0,5 mm²
Flexible, max. H05(07) V-K	1,5 mm²
Flexible with sleeve, max.	1,5 mm²
Wire cross-section, min. AWG	AWG 26
Wire cross-section, max. AWG	AWG 14
Stripping length	7 mm

Approval/Certificate/Document of Conformity	[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_153605)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_278294)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9447120000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002780
ETIM 7.0	EC002780
ETIM 8.0	EC002780
ETIM 9.0	EC002780
ECLASS 9.0	27-14-11-52
ECLASS 9.1	27-24-22-16
ECLASS 10.0	27-14-11-52
ECLASS 11.0	27-14-11-52
ECLASS 12.0	27-14-11-52
ECLASS 13.0	27-14-11-52
ECLASS 14.0	27-14-11-52

Approvals	![CE](/picture/CE.gif) ![UR](/picture/UR.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (UR)	E141197
