Ominaisuudet

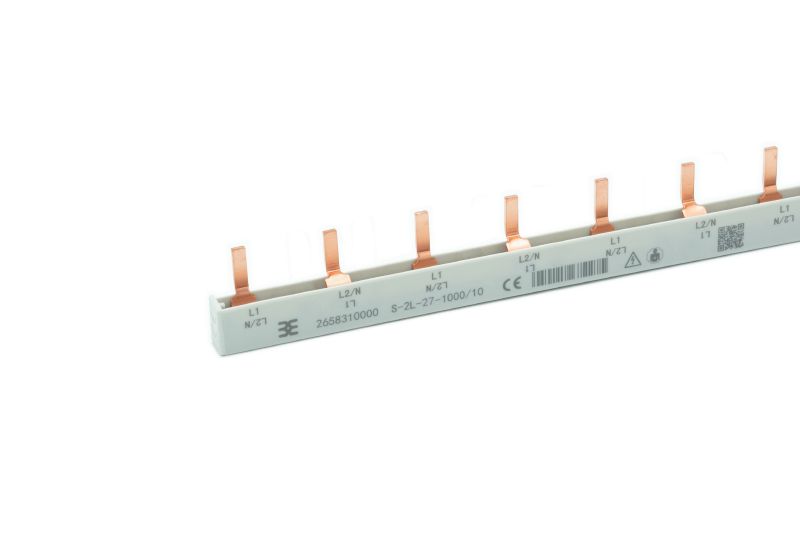

| Version | Cross-connector (terminal), grey, 63 A, Number of poles: 38, Pitch in mm (P): 27.00, Insulated: Yes, Width: 1016 mm |
| Order No. | 2658310000 |
| Type | S-2L-27-1000/10 |
| GTIN (EAN) | 4050118672213 |
| Qty. | 25 items |
| Depth | 9,3 mm |
| Depth (inches) | 0,366 inch |
| Height | 27 mm |
| Height (inches) | 1,063 inch |
| Width | 1 016 mm |
| Width (inches) | 40 inch |
| Net weight | 58 g |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Colour | grey |
| Explosion-tested version | No |
| Pitch in mm (P) | 27 mm |
| Number of poles | 38 |
| Rated cross-section | 10 mm² |
| Rated voltage | 400 V |
| Rated current | 63 A |
| Approval/Certificate/Document of Conformity | [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_165137) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| Approvals |  |
| ROHS | Conform |
