SAIE-M12SB-4-H10TL
SAIE-M12SB-4-H10TL
Dimensioned drawing
SAIE-M12SB-4-H10TL

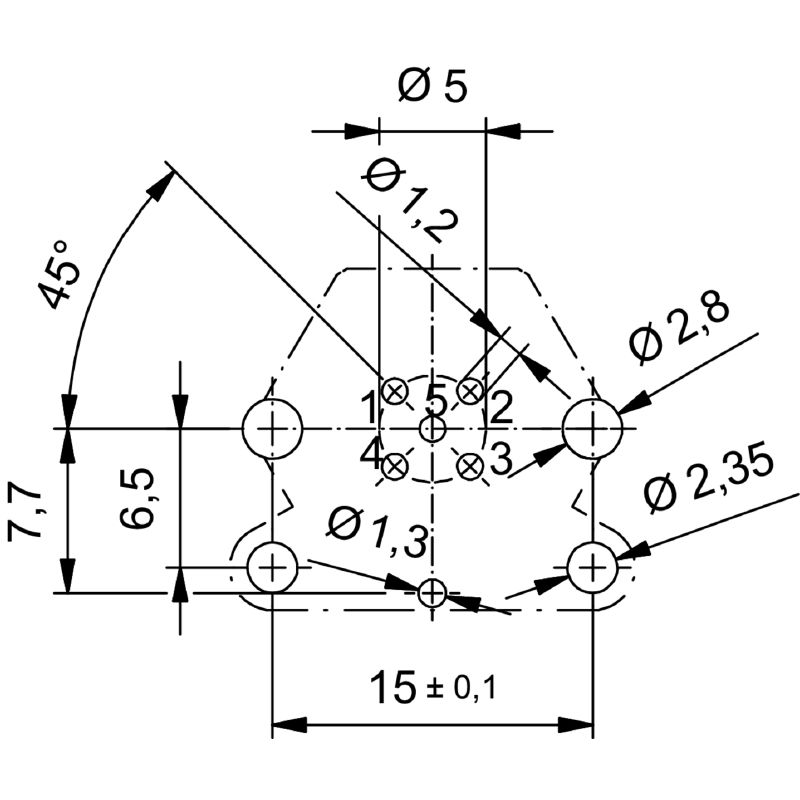

PCB design
SAIE-M12SB-4-H10TL

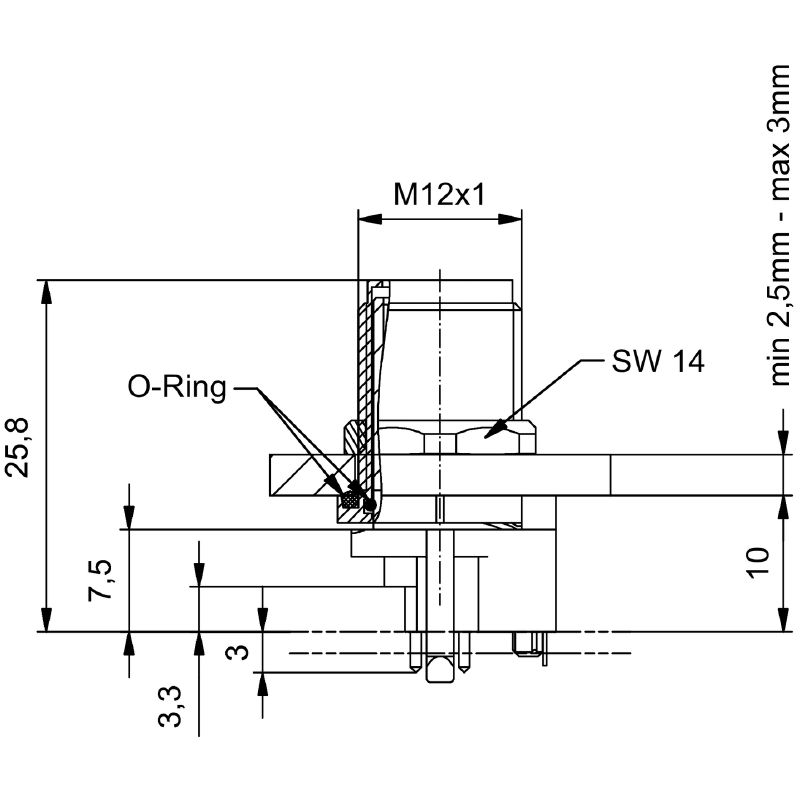

Front panel section
SAIE-M12SB-4-H10TL
Pole scheme
Male

SAIE-M12SB-4-H10TL

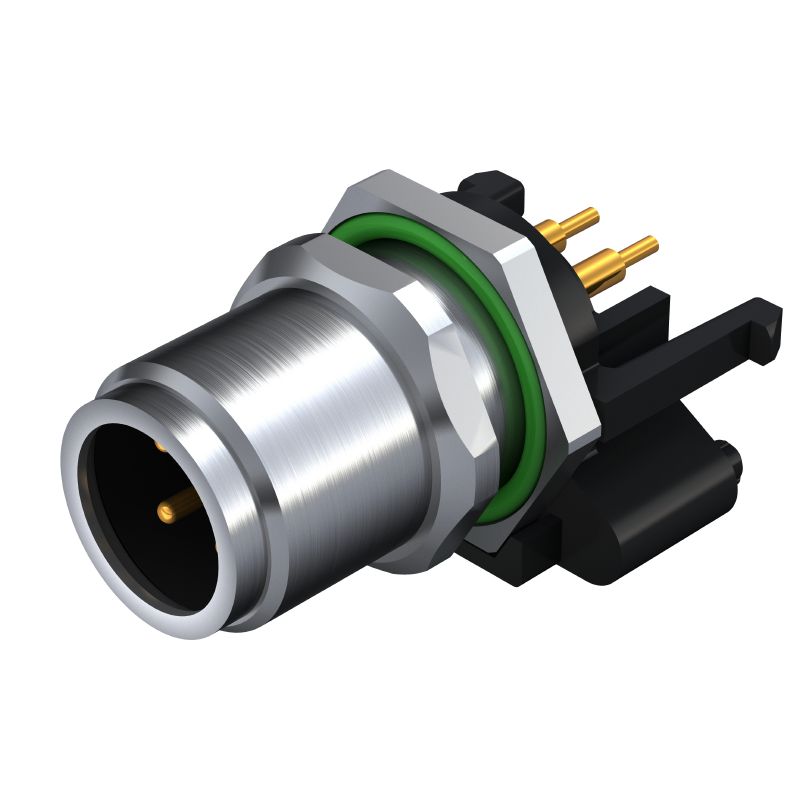

Built-in plugs, M12, Mounting thread: M 12, Number of poles: 4, Strand / cable length:

Tuotteen tunnus 2423990000
Lataa tietosivu Engineering Support Product Downloads
Samankaltaiset tuotteet 24
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data of PCB plug-in connector General Info Material data System parameters Classifications

Approvals

ROHS
Conform

General ordering data

Version
Built-in plugs, M12, Mounting thread: M 12, Number of poles: 4, Strand / cable length:
Order No.
2423990000
Type
SAIE-M12SB-4-H10TL
GTIN (EAN)
4050118431933
Qty.
10  items

Dimensions and weights

Net weight
15  g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Technical data of PCB plug-in connector

Coding
B-coded
Housing surface
nickel-plated
Housings
M12 pin
Mounting height
10  mm
Mounting thread
M12
Number of poles
4
Shield connection
Yes
Type of mounting
Rear panel mounting
Rated voltage
250  V
Rated voltage
250 V
Rated current
4  A
Rated current
4 A
Temperature range
-30…80 °C
Protection degree
IP67
Contact surface
Au (Gold)
Housing main material
CuZn
nickel-plated
Connection thread
M12
Tightening torque
M12: 0.8 Nm
Mounting thread
M 12
Mounting torque
  • max.:
    1,2 Nm
Mounting torque range
1.2 Nm
Mounting onto the PCB
Dip solder
Insulation strength
100 MΩ
Pollution severity
3 (2 within the sealed area)
Plugging cycles
≥ 100
Contact material
Cu-alloy
Lock nut material
Nickel-plated CuZn
Material of the flange-mounted housing
Nickel-plated CuZn

General Info

Number of poles
4
Housing main material
CuZn
nickel-plated
Connection thread
M12
Contact material
Cu-alloy
Contact surface
Au (Gold)
Type of mounting
Rear panel mounting
Protection degree
IP67
Plugging cycles
≥ 100

Material data

Contact material
Cu-alloy
Contact surface
Au (Gold)

System parameters

Mounting onto the PCB
Dip solder
Insulation strength
100 MΩ
Number of poles
4
Pin series quantity
1
Plugging cycles
≥ 100
Protection degree
IP67

Classifications

ETIM 6.0
EC002638
ETIM 7.0
EC003568
ETIM 8.0
EC003568
ETIM 9.0
EC003568
ETIM 10.0
EC003568
ECLASS 9.0
27-44-03-09
ECLASS 9.1
27-44-03-09
ECLASS 10.0
27-44-03-09
ECLASS 11.0
27-44-01-10
ECLASS 12.0
27-44-01-10
ECLASS 13.0
27-44-01-10
ECLASS 14.0
27-44-01-10
ECLASS 15.0
27-44-01-10
