SAIE-M12SK-5-0.2VFM16-1.5

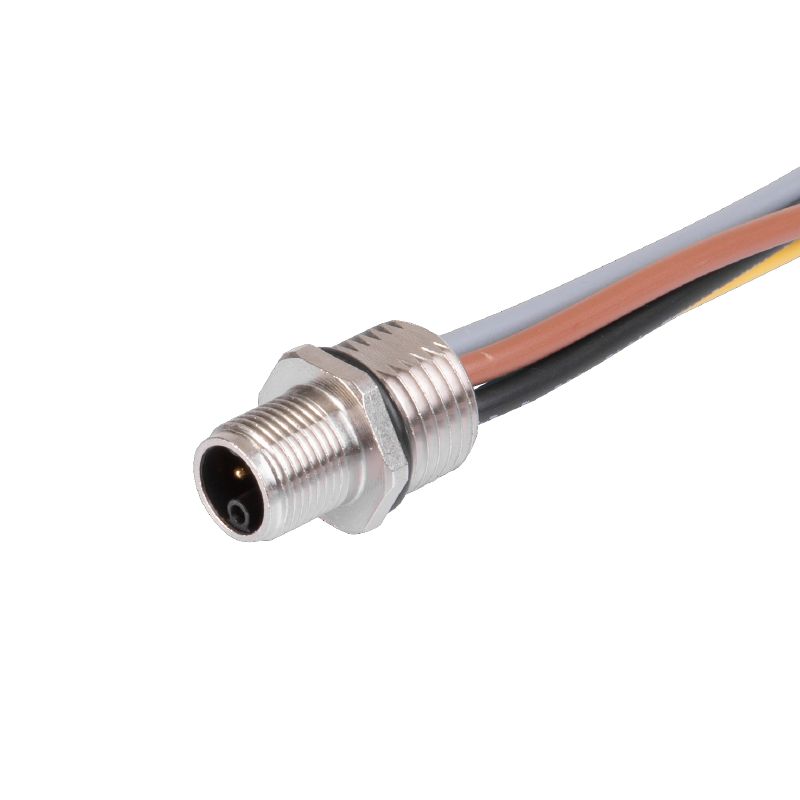

Product image
SAIE-M12SK-5-0.2VFM16-1.5

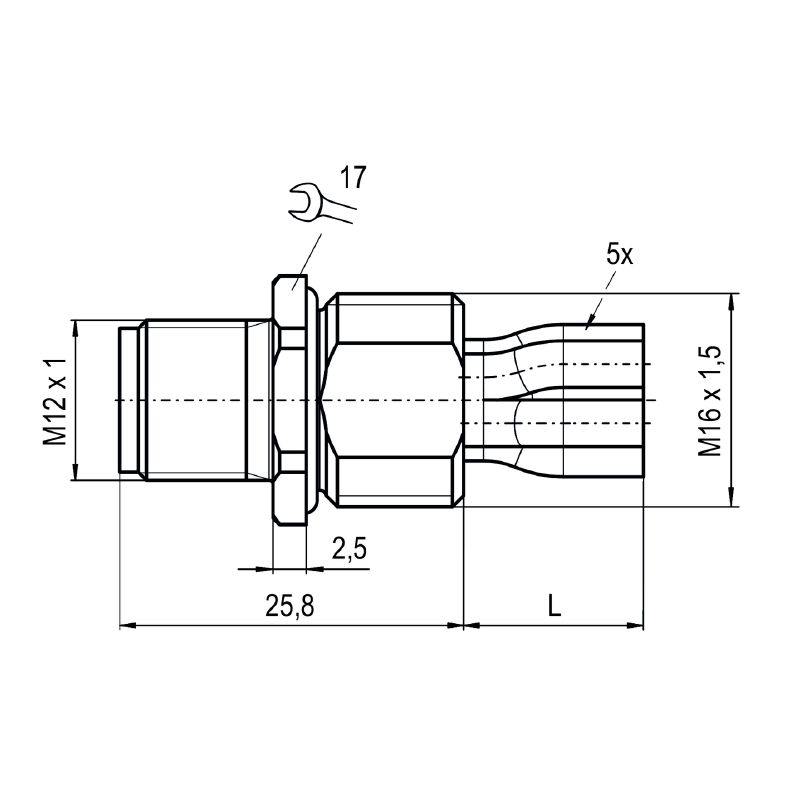

Dimensioned drawing
SAIE-M12SK-5-0.2VFM16-1.5

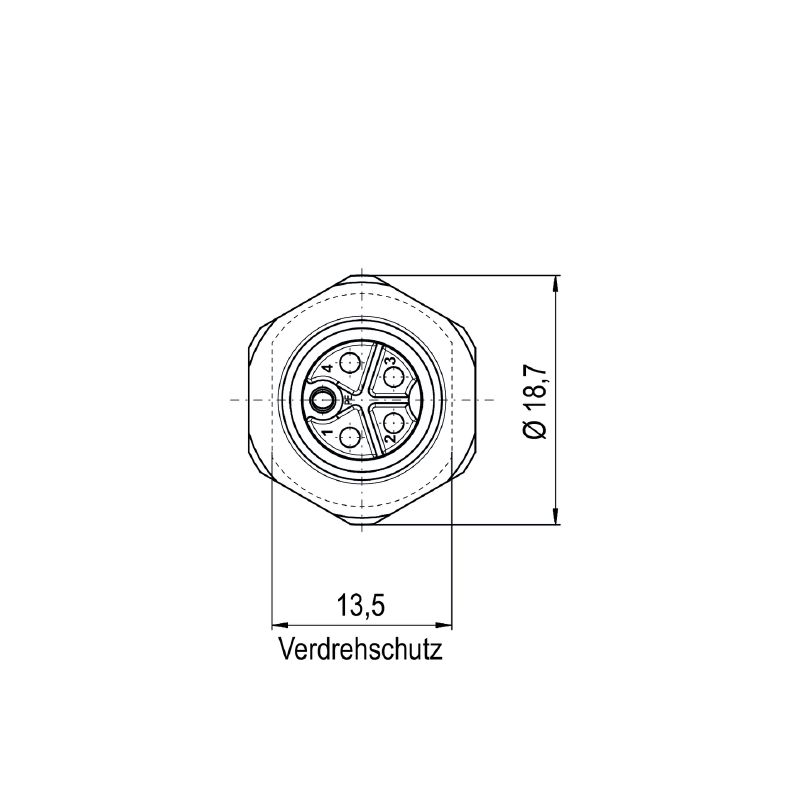

Dimensioned drawing
SAIE-M12SK-5-0.2VFM16-1.5
Pole scheme
Plug
SAIE-M12SK-5-0.2VFM16-1.5
Wiring diagram
SAIE-M12SK-5-0.2VFM16-1.5
Detailed drawing

SAIE-M12SK-5-0.2VFM16-1.5

Built-in plugs, M12, Female socket, straight, Mounting thread: M 16 x 1.5, Number of poles: 5, Strand / cable length: 0.2 m, Front mounting

Item No. 2968000000
Download data sheet Product Downloads
Related products 14
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable Technical data customisable plug-in connectors Standards General data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E310075

General ordering data

Version
Built-in plugs, M12, Female socket, straight, Mounting thread: M 16 x 1.5, Number of poles: 5, Strand / cable length: 0.2 m, Front mounting
Order No.
2968000000
Type
SAIE-M12SK-5-0.2VFM16-1.5
GTIN (EAN)
4099986779402
Qty.
1 items

Dimensions and weights

Net weight
25 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
ebf89fc8-a87f-4691-b87a-dfb9921774b4

Technical specifications for cable

Colour coding
black
brown
grey
blue
Green/yellow
Core cross-section
1.5 mm²
Number of poles
5 (4 + PE)
PE function
Yes
Strand / cable length
0.2 m

Technical data customisable plug-in connectors

Coding
K-coded
Contact surface
Gold-plated
Housing main material
Zinc diecast
Insulation resistance
≥ 100 MΩ
Nominal current
12 A
Nominal voltage
630 V
Number of poles
5
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP67
IP68
when screwed in
Temperature range of housing
-40 … +85 ° C

Standards

Connector standard
IEC 61076-2-111

General data

AF mérete
17 mm
Cicli di inserimento
≥ 100
Coding
K-coded
Connection 2
Flying wires
Connection thread
M12
Contact surface
Gold-plated
Core cross-section
1.5 mm²
Courant nominal
12 A
Grado di protezione
IP65
IP67
IP68
when screwed in
Housing main material
Zinc diecast
Monteringsgänga
M 16 x 1.5
Mounting torque
  • max.:
    2 Nm
Mounting torque range
2 Nm
Nominal voltage
630 V
Počet pólů
5
Resistencia del aislamiento
≥ 100 MΩ
Temperature range of housing
-40 … +85 ° C
Tightening torque
1 Nm
Type of mounting
Front mounting
złącze 1
M12
Длина жилы / кабеля
0.2 m
오염 심각도
3

Classifications

ETIM 8.0
EC003570
ETIM 9.0
EC003570
ETIM 10.0
EC003570
ECLASS 14.0
27-44-01-03
ECLASS 15.0
27-44-01-03
