Version | Protected component assemblies, SAI Active, Accessories, Sensor/Actuator plug-in connector |
Order No. | 2018050000 |

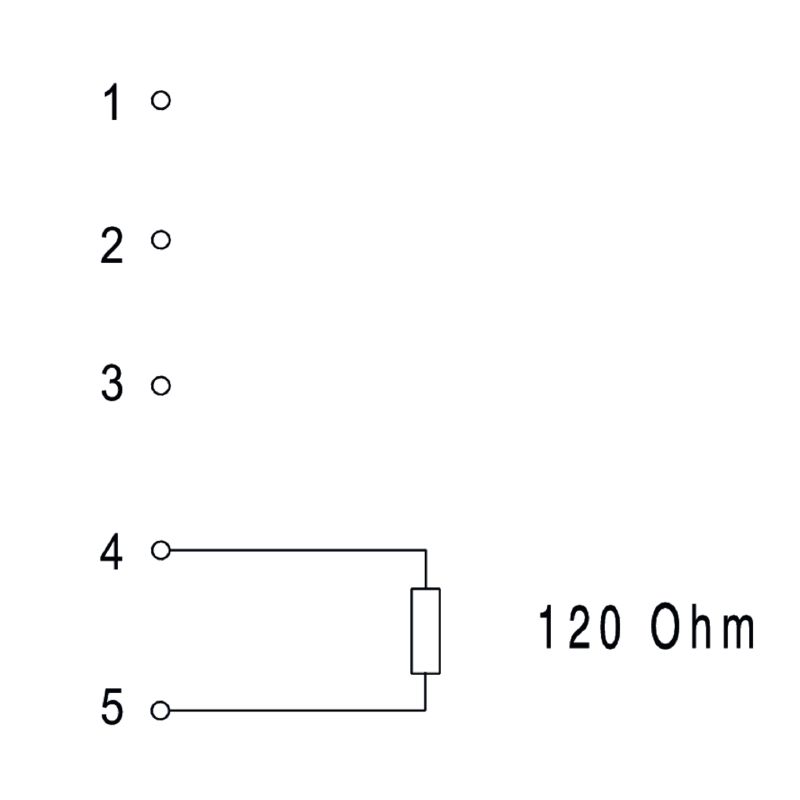

Type | SAIEND CAN-M12B 5P A-COD |
GTIN (EAN) | 4050118401448 |
Qty. | 1 items |
Net weight | 8,8 g |
RoHS Compliance Status | Compliant with exemption |
RoHS Exemption (if applicable/known) | 6c |
REACH SVHC | Lead 7439-92-1 |
SCIP | 1c533b66-fcff-4da5-b89f-fd55fbf5cb55 |
Number of poles | 5 |
Coding | A-coded |
Connection thread | M12 |
Rated voltage | 60 V |
Version |
Socket connector
straight |
Rated voltage | 60 V |
Engineering Data | |
Product Change Notification | |
Catalogues | |
Brochures |
ETIM 6.0 | EC002925 |
ETIM 7.0 | EC002925 |
ETIM 8.0 | EC002925 |
ETIM 9.0 | EC002925 |
ETIM 10.0 | EC002925 |
ECLASS 9.0 | 27-44-01-06 |
ECLASS 9.1 | 27-44-01-06 |
ECLASS 10.0 | 27-44-01-06 |
ECLASS 11.0 | 27-44-01-06 |
ECLASS 12.0 | 27-44-01-06 |
ECLASS 13.0 | 27-44-01-06 |
ECLASS 14.0 | 27-44-01-06 |
ECLASS 15.0 | 27-44-01-06 |
Approvals | ![]() ![]() |
ROHS | Conform |
