SAIFG-M12S-L-F12-M16
SAIFG-M12S-L-F12-M16

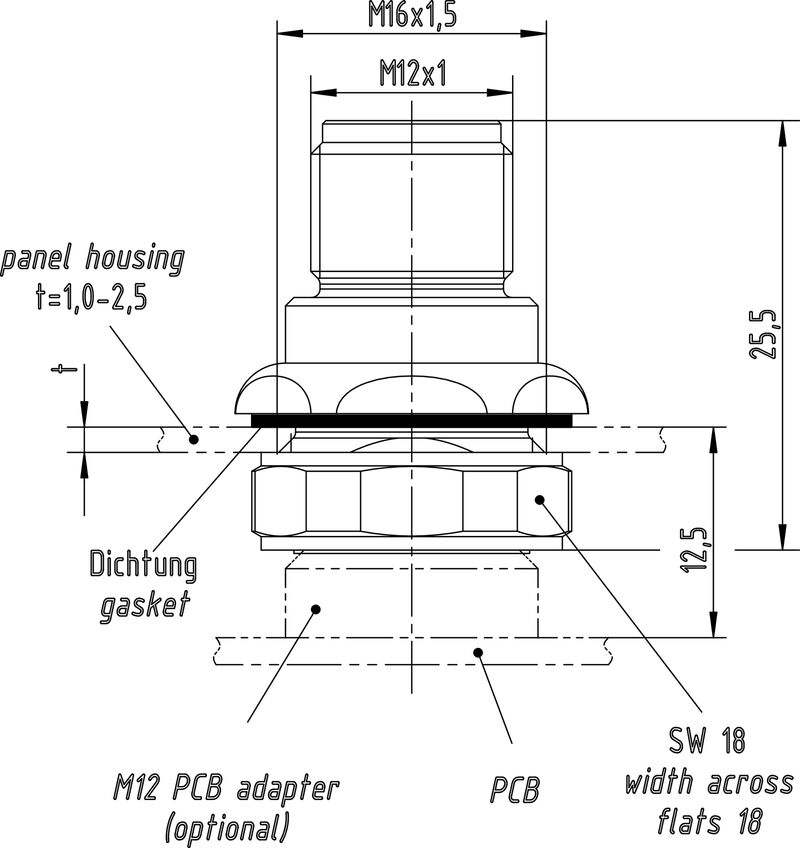

Dimensioned drawing

SAIFG-M12S-L-F12-M16

Built-in plugs, M12, Mounting thread: M 16 x 1.5, Number of poles: 5, Strand / cable length:

Product ID 2530830000
Gegevensblad downloaden Product Downloads
Verwante producten 2
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data of PCB plug-in connector General Info Classifications

Approvals

ROHS
Conform

General ordering data

Version
Built-in plugs, M12, Mounting thread: M 16 x 1.5, Number of poles: 5, Strand / cable length:
Order No.
2530830000
Type
SAIFG-M12S-L-F12-M16
GTIN (EAN)
4050118540956
Qty.
60  items

Dimensions and weights

Net weight
1,967  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Technical data of PCB plug-in connector

Coding
L-coded
Housings
M12 pin
Mounting height
12  mm
Number of poles
5
Type of mounting
Frontpanel mounting
Rated voltage
63  V
Rated current
16  A
Protection degree
IP67
when screwed in
Contact surface
Gold over nickel
Housing main material
Zinc diecast
Connection thread
M12
Tightening torque
M12: 0.8 - 1.2 Nm
Mounting thread
M 16 x 1.5
Plugging cycles
500
Contact material
Cu-alloy

General Info

Number of poles
5
Housing main material
Zinc diecast
Connection thread
M12
Contact material
Cu-alloy
Contact surface
Gold over nickel
Type of mounting
Frontpanel mounting
Protection degree
IP67
when screwed in
Plugging cycles
500

Classifications

ETIM 6.0
EC000437
ETIM 7.0
EC003556
ETIM 8.0
EC003556
ETIM 9.0
EC003556
ETIM 10.0
EC003556
ECLASS 9.1
27-44-02-02
ECLASS 10.0
27-44-02-24
ECLASS 11.0
27-44-02-24
ECLASS 12.0
27-44-02-24
ECLASS 13.0
27-44-02-24
ECLASS 14.0
27-44-02-24
ECLASS 15.0
27-44-02-24
