SAIL-M8BW-3-40U
SAIL-M8BW-3-40U
Dimensioned drawing
Angled socket

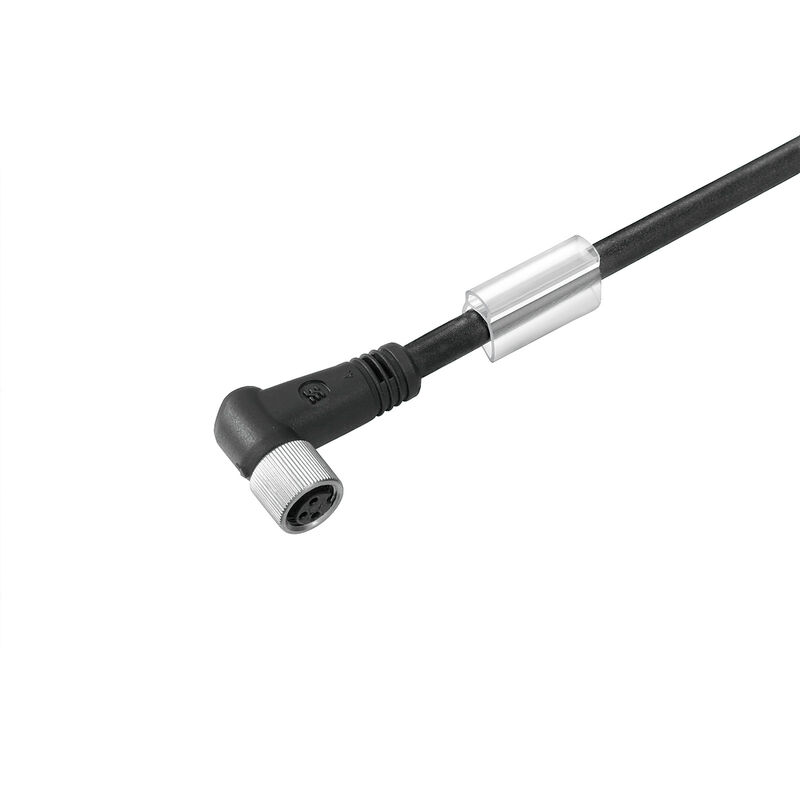

SAIL-M8BW-3-40U
Pole scheme
Socket
SAIL-M8BW-3-40U
Wiring diagram

SAIL-M8BW-3-40U

Tämä tuote ei ole pian enää saatavana.

Last order date: /Date(1790719200000)/

Sensor/Aktuator-Ledning, En ände utan kontakt, M8, Antal poler : 3, 40 m, Hona, vinklad, Skärmad: Nej, LED: Nej, Mantelmaterial: PUR, Halogener: Nej

Tuotteen tunnus 9457384000
Lataa tietosivu Tekninen tuki Tuotelataukset
Samankaltaiset tuotteet 13
Dopuszczenia Allmänna beställningsdata Mått och vikter Miljööverenstämmelse för produkt Technical specifications for cable General technical data Electrical properties General standards Plug, left Plug, right Product images Klassificeringar

Dopuszczenia

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Uppfyllelse
UL File Number Search
[UL-webbplats](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

Allmänna beställningsdata

Version
Sensor/Aktuator-Ledning, En ände utan kontakt, M8, Antal poler : 3, 40 m, Hona, vinklad, Skärmad: Nej, LED: Nej, Mantelmaterial: PUR, Halogener: Nej
Order No.
9457384000
Type
SAIL-M8BW-3-40U
GTIN (EAN)
4050118504316
Qty.
1 items
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1790719200000)/

Mått och vikter

Diameter
3,6 mm
Net weight
896 g

Miljööverenstämmelse för produkt

RoHS Compliance Status
Kompatibel med undantag
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles
5 Mio
Bending cycles at torsion
> 5 Mio.
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Cable length
40 m
Colour coding
brown
blue
black
Configurable cable length
No
Core cross-section
0,25 mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Drain wire integrated
No
Halogen
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
Irradiation crosslinked
No
Length of torsion
1 m
Number of poles
3
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Outside diameter
3.6 mm + 0.15 mm
Resistance to oils
Yes
Resistance to spread of flame
in accordance with IEC 60332-2-2
In accordance with UL1581 UL / CUL FT2
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
noir (similaire à RAL 9005)
Shielded
Non
Speed
3,33 m/s
Suitable for cable carriers
Igen
Temperature range, moving
-25...60 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
180 °/m
Welding spark resistance
Nie

General technical data

Coding
A-coded
Connection thread
M8
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
Jmenovitý proud
4 A
jumpered
No
LED
No
Nominal voltage
60 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP69
IP65
IP66
Temperature range of housing
-25…+85 °C
Threaded ring material
Brass, nickel-plated
Version
Socket, angled

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
60 V

General standards

Certificate no. (cULus)
E307231

Plug, left

Plug left
M8, IP69, female contact, angled 90°, Plastic, unshielded

Plug, right

Plug right
free conductor end

Product images

Klassificeringar

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
