Ominaisuudet
| Version | Valve plug, Straight plug - valve plug, C |
| Order No. | 9457400500 |

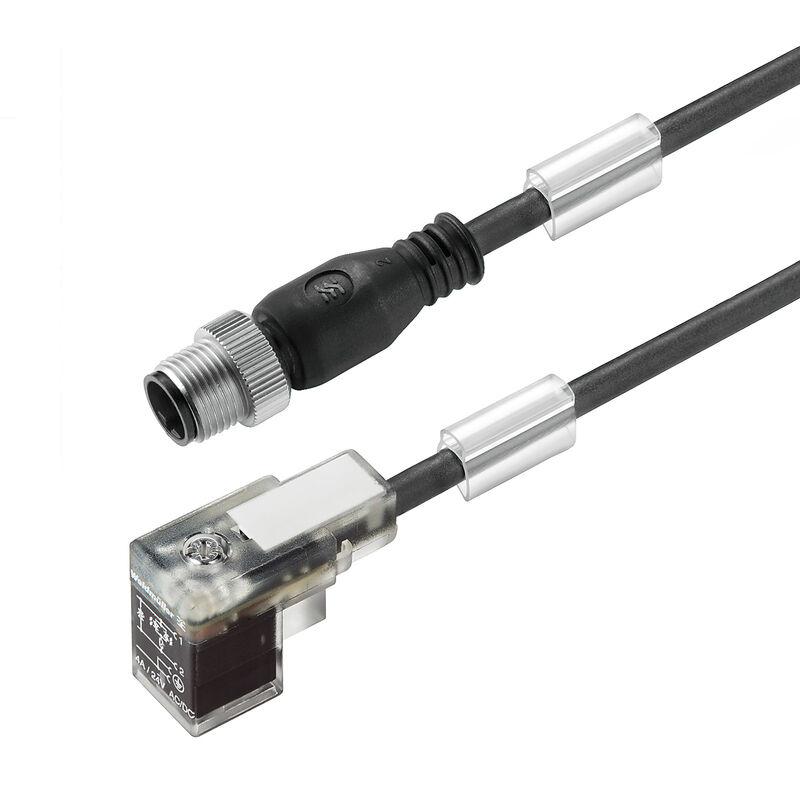

| Type | SAIL-VSC-M12G-5.0U |
| GTIN (EAN) | 4008190316594 |
| Qty. | 1 items |
| Net weight | 177 g |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 4060c755-8d0b-4d43-bdb3-4ffabe9d7497 |
| Acceleration | 5 m/s² |
| Bending cycles | 2 Mio |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 5 x cable diameter |
| Cable length | 5 m |
| Colour coding |
brown
blue Green/yellow |
| Core cross-section | 0,5 mm² |
| Halogen | No |
| Insulation | PP |
| Number of poles | 3 |
| Outside diameter | 4.6 mm ± 0.2 mm |
| Resistant to welding beads | No |
| Sheath material | PUR |
| Sheathing colour | black |
| Shielded | No |
| Speed | 200 m/s |
| Suitable for cable carriers | Yes |
| Temperature range, moving | -25...80 °C |
| Temperature range, stationary | -50...80 °C |
| Torsion resistance | 0 °/m |
| Welding spark resistance | No |
| All valve plugs are fitted with protective circuits | Zener diode |
| Coding |
Industrial design C (9.4 mm)
M12 = A-coded |
| Connection thread | Miscellaneous |
| Contact material | CuZn |
| Contact surface | tinned |
| LED | Yes |
| Protection degree |
IP67
when screwed in |
| Rated current | 4 A |
| Rated voltage | 24 V |
| Temperature range of housing | -25…+80 °C |
| Tightening torque |
Mounting screw M3: 0.4 Nm
M2.5 mounting screw: 0.3 Nm M12: 0.8 - 1.2 Nm |
| Version | Straight plug - valve plug |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 9.0 | EC001855 |
| ECLASS 9.0 | 27-06-03-12 |
| ECLASS 9.1 | 27-06-03-11 |
| ECLASS 10.0 | 27-06-03-12 |
| ECLASS 11.0 | 27-06-03-12 |
| ECLASS 12.0 | 27-06-03-12 |
| ECLASS 13.0 | 27-06-03-12 |
| Approvals |   |
| ROHS | Conform |
