Ominaisuudet
| Version | Feed-through terminal block, Screw connection, black, 10 mm², 57 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 32, V-0, Epoxy resin, EP, 160 °C |
| Order No. | 0126700000 |

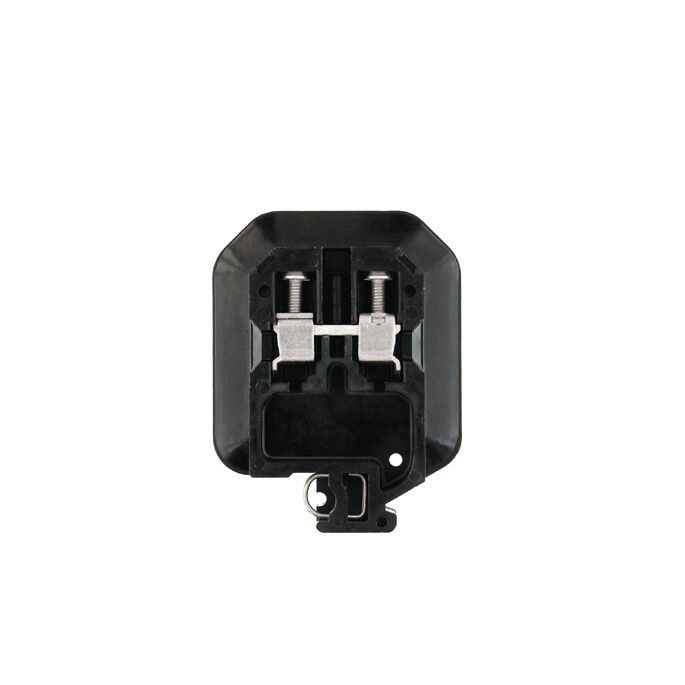

| Type | SAKH 10 EP/SW |
| GTIN (EAN) | 4008190033156 |
| Qty. | 50 items |
| Depth | 76,5 mm |
| Depth (inches) | 3,012 inch |
| Height | 57 mm |
| Height (inches) | 2,244 inch |
| Width | 14 mm |
| Width (inches) | 0,551 inch |
| Net weight | 45,2 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Continuous operating temp., min. | −60 °C |
| Continuous operating temp., max. | 160 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Epoxy resin, EP |
| Colour | black |
| UL 94 flammability rating | V-0 |
| Certificate No. (ATEX) | TUEV18ATEX8206U |
| Certificate No. (IECEX) | IECEXTUR18.0016U |
| Max. voltage (ATEX) | 1100 V |
| Current (ATEX) | 57 A |
| Wire cross section max. (ATEX) | 16 mm² |
| Max. voltage (IECEX) | 1100 V |
| Current (IECEX) | 57 A |
| Wire cross section max. (IECEX) | 16 mm² |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7 | Ex eb II C Gb |
| Ex 2014/34/EU label | II 2 G D |
| Version |
Screw connection
for screwable cross-connection One end without connector |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 32 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | Yes |
| Number of similar terminals | 1 |
| Open sides | right |
| Type of mounting | Snap-on |
| Connection type, additional connection | Screw connection |
| Blade size | 1.0 x 5.5 mm |
| Clamping range, max. | 16 mm² |
| Clamping range, min. | 1,5 mm² |
| Clamping screw | M 4 |
| Connection cross-section, stranded, max. | 16 mm² |
| Connection cross-section, stranded, min. | 1,5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | B6 |
| Number of connections | 2 |
| Stripping length | 12 mm |
| Tightening torque, max. | 1,2 Nm |
| Tightening torque, min. | 1,2 Nm |
| Torque level with DMS electric screwdriver | 4 |
| Twin wire-end ferrules, max. | 6 mm² |
| Twin wire-end ferrules, min. | 0,75 mm² |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 6 |
| Wire connection cross section AWG, min. | AWG 14 |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross section, finely stranded, min. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 1 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1,5 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 1,5 mm² |
| Certificate No. (CSA) | 200039-1501714 |
| Current size B (CSA) | 76 A |
| Current size C (CSA) | 76 A |
| Current size D (CSA) | 5 A |
| Voltage size B (CSA) | 600 V |
| Voltage size C (CSA) | 1000 V |
| Voltage size D (CSA) | 600 V |
| Wire cross section max. (CSA) | 6 AWG |
| Wire cross section min. (CSA) | 14 AWG |
| Rail | TS 32 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 6 |
| Wire connection cross section AWG, min. | AWG 14 |
| Rated cross-section | 10 mm² |
| Rated voltage | 1 000 V |
| Rated DC voltage | 1 000 V |
| Rated current | 57 A |
| Current at maximum wires | 57 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0,56 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 1,82 W |
| Pollution severity | 3 |
| Certificate No. (UR) | E60693 |
| Current size B (UR) | 65 A |
| Current size C (UR) | 65 A |
| Current size D (UR) | 5 A |
| Voltage size B (UR) | 600 V |
| Voltage size C (UR) | 600 V |
| Voltage size D (UR) | 600 V |
| Wire cross section max. (UR) | 6 AWG |
| Wire cross section min. (UR) | 14 AWG |
| Approval/Certificate/Document of Conformity |
[Attestation Of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_68766)
[UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253944) [CB Test Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89278) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89279) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_107212) [CCC Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_178474) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253943) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36579) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284523) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_281294) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0126700000) |
| User Documentation |
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
[NTI SAKH 10 EP SW](https://mdcop.weidmueller.com/mediadelivery/asset/900_107208) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
| ECLASS 14.0 | 27-25-01-01 |
| Approvals |          |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
Lisävarusteet
-
Tuotteen tunnus:1046370000VPE:160 items
Dekafix, Terminal marker, 5 x 8 mm, Pitch in mm (P): 8.00 Weidmueller, To customer specification
-
Tuotteen tunnus:1856750000VPE:160 items
Dekafix, Terminal marker, 5 x 8 mm, Pitch in mm (P): 8.00 Weidmueller, To customer specification
-
Tuotteen tunnus:0693060000VPE:50 items
End bracket, black, TS 32, V-0, Width: 7.5 mm, 160 °C
-
Tuotteen tunnus:0445600000VPE:20 items
End bracket, grey, TS 32, None, Steel, Width: 10.5 mm, 100 °C
-
Tuotteen tunnus:0249000000VPE:100 items
Connecting sleeve (terminal), when screwed in, Width: 4.9, Height: 4.9 mm, Depth: 12 mm, Copper
-
Tuotteen tunnus:0267000000VPE:50 items
Connecting sleeve (terminal), when screwed in, Width: 8 mm, Height: 8 mm, Depth: 17 mm, Number of poles: 1, Cu Zn
-
Tuotteen tunnus:1609840000VPE:900 items
Dekafix, Terminal marker, 5 x 6.5 mm, Pitch in mm (P): 6.50 Weidmueller, white
-
-
-
Tuotteen tunnus:2007130000VPE:500 items
Dekafix, Terminal marker, 5 x 8 mm, Weidmueller, white
-
Tuotteen tunnus:1609850000VPE:180 items
Dekafix, Terminal marker, 5 x 6.5 mm, Pitch in mm (P): 6.50 Weidmueller, To customer specification
-
Tuotteen tunnus:1609801044VPE:1000 items
Dekafix, Terminal marker, 5 x 5 mm, Pitch in mm (P): 5.00 Weidmueller, white
-
Tuotteen tunnus:1046350000VPE:800 items
Dekafix, Terminal marker, 5 x 8 mm, Pitch in mm (P): 8.00 Weidmueller, white
-
Tuotteen tunnus:0338600000VPE:20 items
Cross-connector (terminal), when screwed in, grey, 99 A, Number of poles: 10, Pitch in mm (P): 18.00, Insulated: No, Width: 171.4 mm
-
Tuotteen tunnus:0123800000VPE:20 items
Cross-connector (terminal), when screwed in, grey, 99 A, Number of poles: 4, Pitch in mm (P): 8.00, Insulated: No, Width: 63.8 mm
-
Tuotteen tunnus:0123700000VPE:20 items
Cross-connector (terminal), when screwed in, grey, 99 A, Number of poles: 3, Pitch in mm (P): 18.00, Insulated: No, Width: 45.8 mm
-
Tuotteen tunnus:0123600000VPE:20 items
Cross-connector (terminal), when screwed in, grey, 99 A, Number of poles: 2, Pitch in mm (P): 8.00, Insulated: No, Width: 27.8 mm
-
Tuotteen tunnus:0267100000VPE:50 items
Mounting screw (Terminal), 4.00 mm, Steel, Depth: 7 mm, Width: 7 mm, Height: 30 mm
-
-
-
-
-
Tuotteen tunnus:0130100000VPE:20 items
Partition plate (terminal), black, Height: 50 mm, Width: 2.53 mm, V-0, Epoxy resin, EP
-
Tuotteen tunnus:1856740000VPE:800 items
Dekafix, Terminal marker, 5 x 8 mm, Pitch in mm (P): 8.00 Weidmueller, white
-
Tuotteen tunnus:0131700000VPE:20 items
End plate (terminals), black, Height: 58 mm, Width: 4 mm, V-0, Epoxy resin, EP
-
Tuotteen tunnus:0131400000VPE:50 items
Cross-connector (terminal), when screwed in, grey, 36 A, Number of poles: 2, Pitch in mm (P): 14.00, Insulated: No, Width: 16.9 mm
