Ominaisuudet

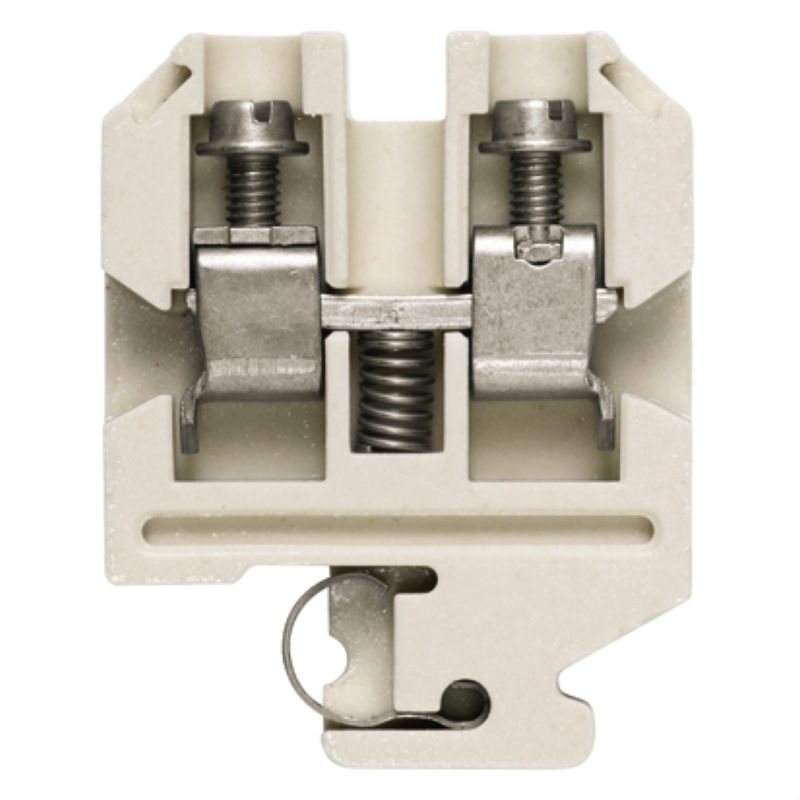

| Version | Feed-through terminal block, Screw connection, beige, 10 mm², 57 A, 800 V, Number of connections: 2, Number of levels: 1, TS 32, V-0, 5VB, Ceramic, 250 °C |
| Order No. | 9502610000 |
| Type | SAKK 10 |
| GTIN (EAN) | 4008190550592 |
| Qty. | 25 items |
| Depth | 53 mm |
| Depth (inches) | 2,087 inch |
| Height | 40 mm |
| Height (inches) | 1,575 inch |
| Width | 11,5 mm |
| Width (inches) | 0,453 inch |
| Net weight | 45,04 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Continuous operating temp., min. | −60 °C |
| Continuous operating temp., max. | 250 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Ceramic |
| Colour | beige |
| UL 94 flammability rating |
V-0
5VB |
| Certificate No. (ATEX) | TUEV18ATEX8208U |
| Certificate No. (IECEX) | IECEXTUR18.0018U |
| Max. voltage (ATEX) | 440 V |
| Current (ATEX) | 57 A |
| Wire cross section max. (ATEX) | 16 mm² |
| Max. voltage (IECEX) | 440 V |
| Current (IECEX) | 57 A |
| Wire cross section max. (IECEX) | 16 mm² |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7 | Ex eb II C Gb |
| Ex 2014/34/EU label | II 2 G D |
| Version |
Screw connection
for screwable cross-connection One end without connector |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 32 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | Yes |
| Installation advice | Direct mounting |
| Open sides | right |
| Type of mounting | Snap-on |
| Connection type, additional connection | Screw connection |
| Blade size | 1.0 x 5.5 mm |
| Clamping range, max. | 16 mm² |
| Clamping range, min. | 1,5 mm² |
| Clamping screw | M 4 |
| Connection cross-section, stranded, max. | 16 mm² |
| Connection cross-section, stranded, min. | 1,5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | B6 |
| Number of connections | 2 |
| Stripping length | 12 mm |
| Tightening torque, max. | 1,2 Nm |
| Tightening torque, min. | 1,2 Nm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 6 |
| Wire connection cross section AWG, min. | AWG 14 |
| Wire connection cross section, finely stranded, max. | 16 mm² |
| Wire connection cross section, finely stranded, min. | 1,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 1,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1,5 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 1,5 mm² |
| Certificate No. (CSA) | 12400-290 |
| Current size C (CSA) | 65 A |
| Voltage size C (CSA) | 600 V |
| Wire cross section max. (CSA) | 6 AWG |
| Wire cross section min. (CSA) | 14 AWG |
| Installation advice | Direct mounting |
| Rail | TS 32 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 6 |
| Wire connection cross section AWG, min. | AWG 14 |
| Rated cross-section | 10 mm² |
| Rated voltage | 800 V |
| Rated DC voltage | 800 V |
| Rated current | 57 A |
| Current at maximum wires | 76 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0,56 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 1,82 W |
| Pollution severity | 3 |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 6 AWG |
| Conductor size Factory wiring min. (UR) | 14 AWG |
| Conductor size Field wiring max. (UR) | 6 AWG |
| Conductor size Field wiring min. (UR) | 14 AWG |
| Current size C (UR) | 55 A |
| Voltage size C (UR) | 600 V |
| Approval/Certificate/Document of Conformity |
[Attestation Of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35847)
[ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_80325) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_80326) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89240) [CB Test Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89241) [CCC Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_178476) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36505) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284523) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66823) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9502610000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9502610000) |
| Product Change Notification | [PCN_SAKK_20190405](https://mdcop.weidmueller.com/mediadelivery/asset/900_87128) |
| User Documentation |
[NTI SAKK 10](https://mdcop.weidmueller.com/mediadelivery/asset/900_80328)
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
| ECLASS 14.0 | 27-25-01-01 |
| Approvals |          |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
| Certificate No. (cURusEX) | E184763 |
