Ominaisuudet

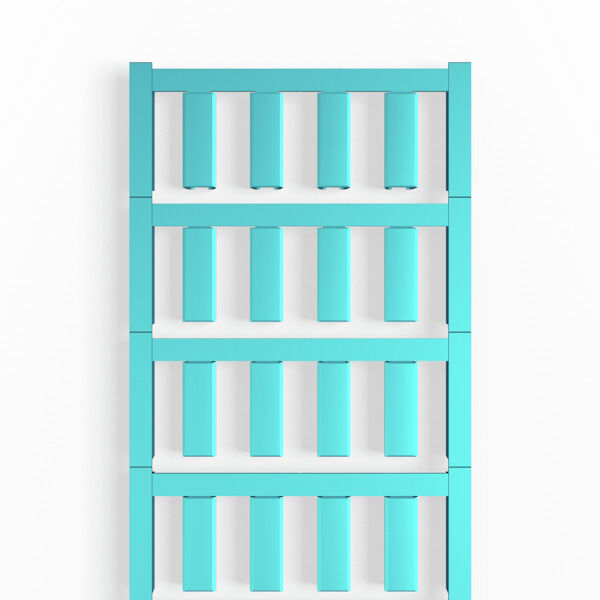

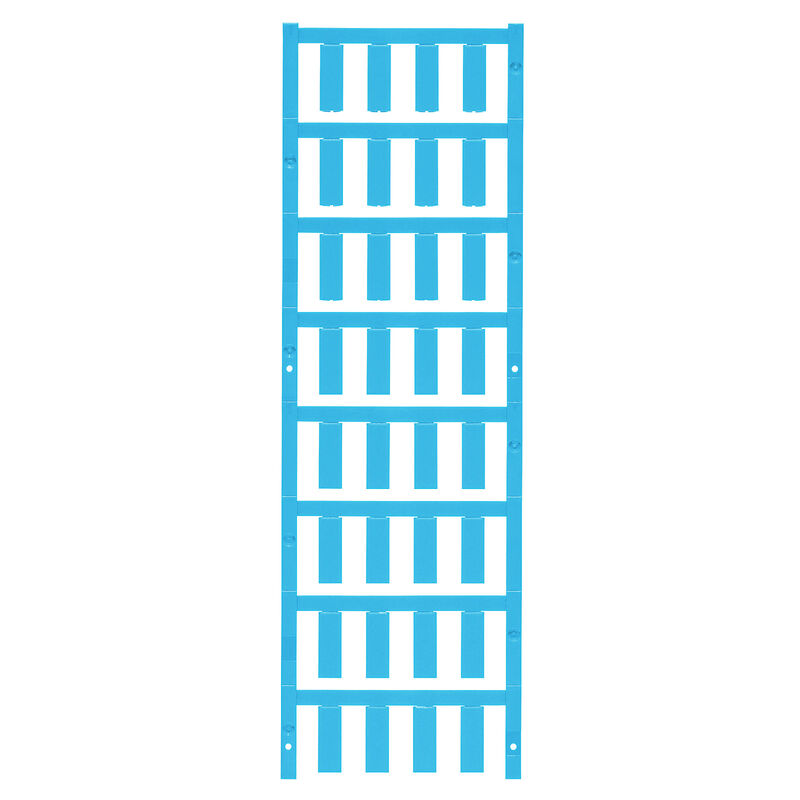

| Version | SlimFix, Conductor and cable markers, 4.1 - 4.9 mm, 21 x 7.4 mm, blue |
| Order No. | 1919030000 |
| Type | SF 4.5/21 MC NE BL V2 |
| GTIN (EAN) | 4032248554959 |
| Qty. | 96 items |
| Alternative product | [1918990000](~/p/1918990000) |
| Depth | 6,5 mm |
| Depth (inches) | 0,256 inch |
| Height | 21 mm |
| Height (inches) | 0,827 inch |
| Width | 7,4 mm |
| Width (inches) | 0,291 inch |
| Net weight | 0,906 g |
| Operating temperature range | -40...100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | blue |
| compatible printer | [PRINTJET CONNECT](~/p/2715590000) |
| Halogen | No |
| Material | Polyamide 66 |
| Number of markers per combination | 1 MultiCard = Conductor and cable markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | −40 °C |
| Recommended industries |
Transportation
Machinery |
| Size of labelling field | 21 x 7.4 mm |
| Type of printing | neutral |
| UL 94 flammability rating | V-2 |
| Width | 7,4 mm |
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. | 4 mm² |
| Conductor O.D. | 4.1 - 4.9 mm |
| Conductor O.D., max. | 4,9 mm |
| Conductor O.D., min. | 4,1 mm |
| Cross-section for connected wire | 4 - 6 mm² |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_64816) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1919030000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1919030000) |
| Product Change Notification |
[MultiCard Material modification](https://mdcop.weidmueller.com/mediadelivery/asset/900_308560)
[MultiCard Material Modifikation](https://mdcop.weidmueller.com/mediadelivery/asset/900_308561) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
