Ominaisuudet

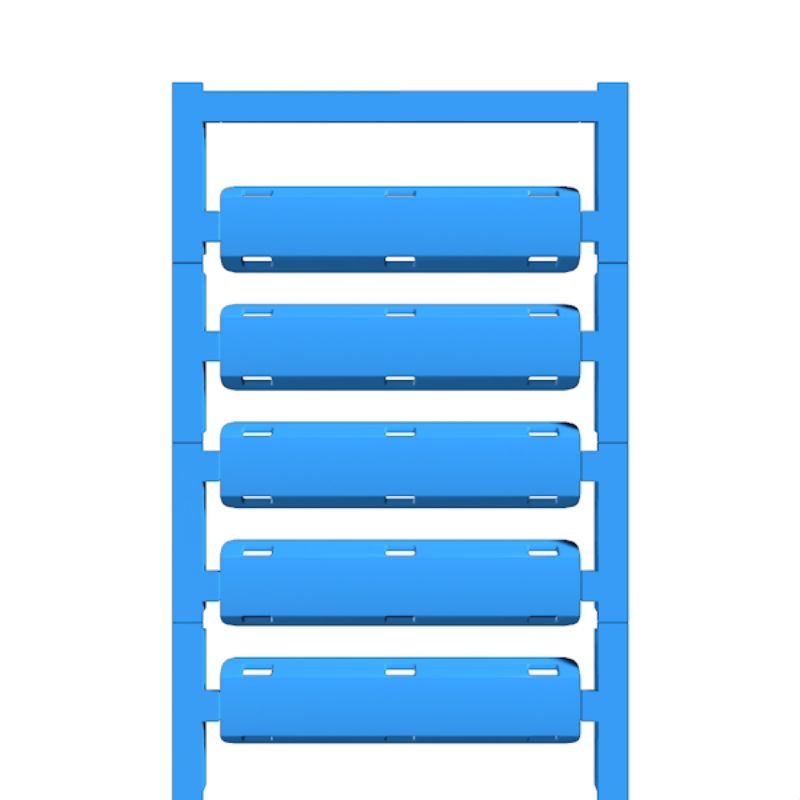

| Version | Conductor and cable markers, 7 - 40 mm, 60 x 10 mm, blue |
| Order No. | 2622420000 |
| Type | SFX-DT 10/60 S MC SDR |
| GTIN (EAN) | 4050118623444 |
| Qty. | 10 items |
| Depth | 1 mm |
| Depth (inches) | 0,039 inch |
| Height | 60 mm |
| Height (inches) | 2,362 inch |
| Width | 10 mm |
| Width (inches) | 0,394 inch |
| Net weight | 1,6 g |
| Operating temperature range | -40...100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | blue |
| compatible printer | [PRINTJET CONNECT](~/p/2715590000) |
| Detectible in accordance with Rondotest | 4.7 mm Al |
| Halogen | No |
| Material | Polyamide 66 |
| Number of markers per combination | 1 MultiCard = Conductor and cable markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | −40 °C |
| Printed characters | To customer specification |
| Recommended industries | Food processing industry |
| Size of labelling field | 60 x 9.5 mm |
| UL 94 flammability rating | HB |
| Version | Installation with cable ties |
| Width | 10 mm |
| Conductor cross-section, max. | 500 mm² |
| Conductor cross-section, min. | 16 mm² |
| Conductor O.D. | 7 - 40 mm |
| Conductor O.D., max. | 40 mm |
| Conductor O.D., min. | 7 mm |
| Cross-section for connected wire | 16 - 500 mm² |
| Halogen | No |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
