MetalliCard, Conductor and cable markers, 7 - 40 mm, 60 x 11 mm, silver

Cikkszám 1327780000
Adatlap letöltése Engineering Support Product Downloads
Accessories 2 Is accessory of 2 Related products 7
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
MetalliCard, Conductor and cable markers, 7 - 40 mm, 60 x 11 mm, silver
Order No.
1327780000
Type
SFX-M 11/60 AL
GTIN (EAN)
4050118132649
Qty.
50 items

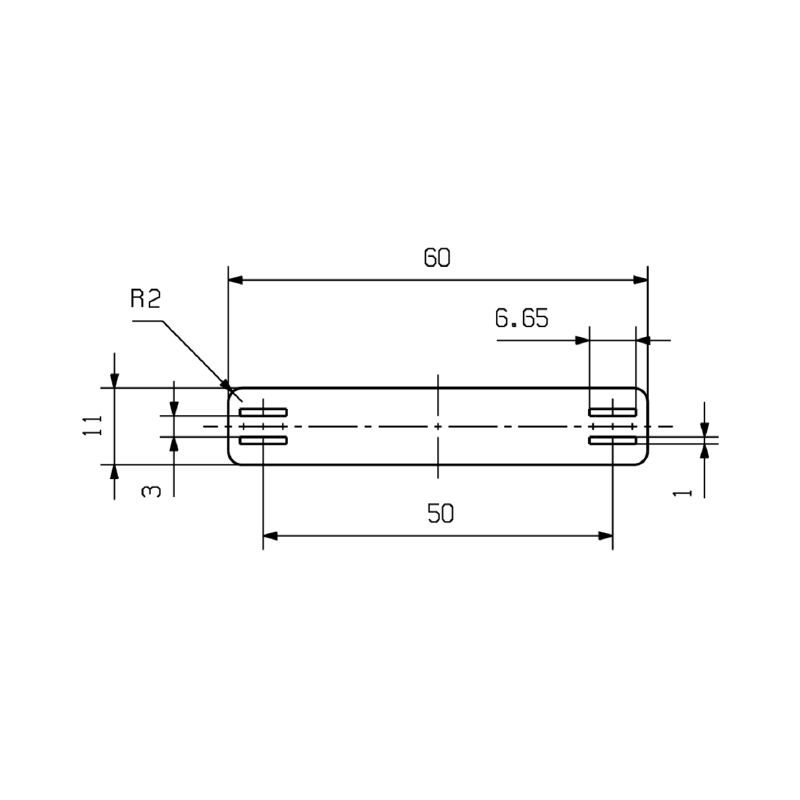

Dimensions and weights

Depth
0.8 mm
Depth (inches)
0.031 inch
Height
60 mm
Height (inches)
2.362 inch
Width
11 mm
Width (inches)
0.433 inch
Net weight
0.834 g

Temperatures

Operating temperature range
-55...130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
Anodized aluminium
Färgkod
silver
Larghezza
11 mm
Number of markers per combination
1 MetalliCard = Conductor and cable markers
Number of markers per packaging unit
  • Form of supply:
    MetalliCard
Nº por hoja
50
Operating temperature range
-55...130 °C
Printed characters
without
Recommended industries
Process
Energy
Size of labelling field
11.2 x 45 mm
Type d'impression
neutral
Változat
halogen-free
zakres temperatur roboczych, min.
-55 °C
작동 온도 범위, 최대
130 °C

Conductor and cable markers

Cable tie passage
Raised
Conductor cross-section, max.
500 mm²
Conductor cross-section, min.
16 mm²
Conductor O.D., max.
40 mm
Conductor O.D., min.
7 mm
Cross-section for connected wire
16 - 500 mm²
Suitable cable tie
Steel
Vnější prům. vodiče
7 - 40 mm

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
