Ominaisuudet

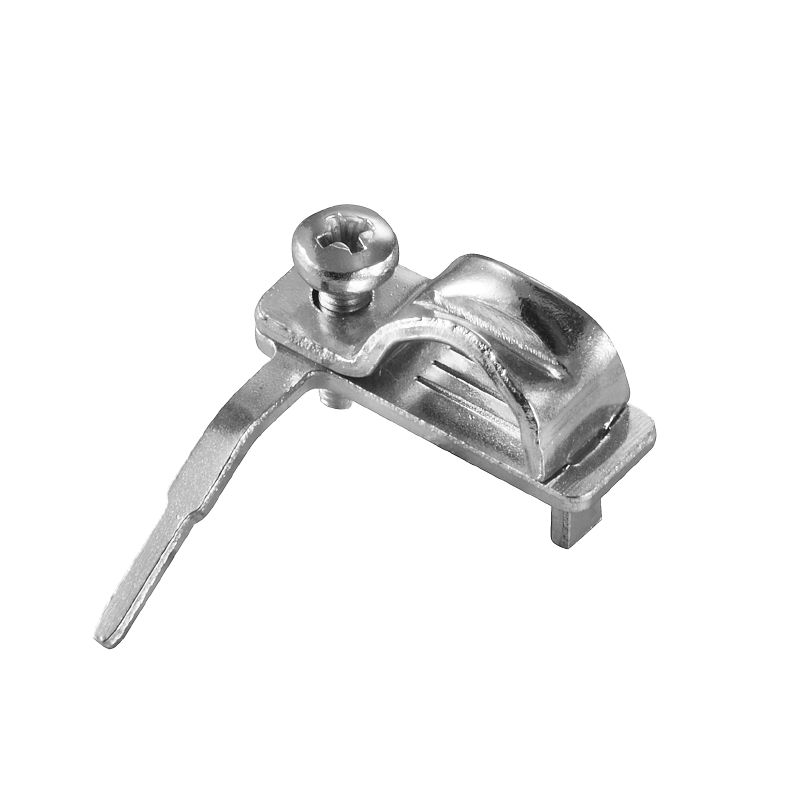

| Version | Shield clamp, Accessories, Screw flange, Number of poles: 1, zinc plated, Silver grey, Box |
| Order No. | 2903230000 |
| Type | SH ETH U |
| GTIN (EAN) | 4099986575172 |
| Qty. | 25 items |
| Packaging | Box |
| Depth | 26,9 mm |
| Depth (inches) | 1,059 inch |
| Height | 15,1 mm |
| Height (inches) | 0,594 inch |
| Width | 22,4 mm |
| Width (inches) | 0,882 inch |
| Net weight | 2,484 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Cable diameter, max. | 8 mm |
| Cable diameter, min. | 4,5 mm |
| Number of poles | 1 |
| Product family | Accessories |
| Shield surface | zinc plated |
| Shielding | 360° shield contact |
| Shielding material | Steel |
| Side termination, characteristic | Screw flange |
| Type of connection | Screw connection |
| Colour | Silver grey |
| Colour chart (similar) | RAL 7001 |
| Contact material | Cu-alloy |
| Contact surface | zinc plated |
| Storage temperature, min. | −40 °C |
| Storage temperature, max. | 80 °C |
| Operating temperature, min. | −40 °C |
| Operating temperature, max. | 80 °C |
| Packaging | Box |
| VPE length | 118 mm |
| VPE width | 89 mm |
| VPE height | 31 mm |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
| ETIM 8.0 | EC002637 |
| ETIM 9.0 | EC002637 |
| ECLASS 9.0 | 27-44-04-02 |
| ECLASS 9.1 | 27-44-04-02 |
| ECLASS 10.0 | 27-44-04-02 |
| ECLASS 11.0 | 27-46-02-01 |
| ECLASS 12.0 | 27-46-02-01 |
| ECLASS 13.0 | 27-46-02-01 |
| ECLASS 14.0 | 27-46-02-01 |
| ROHS | Conform |
