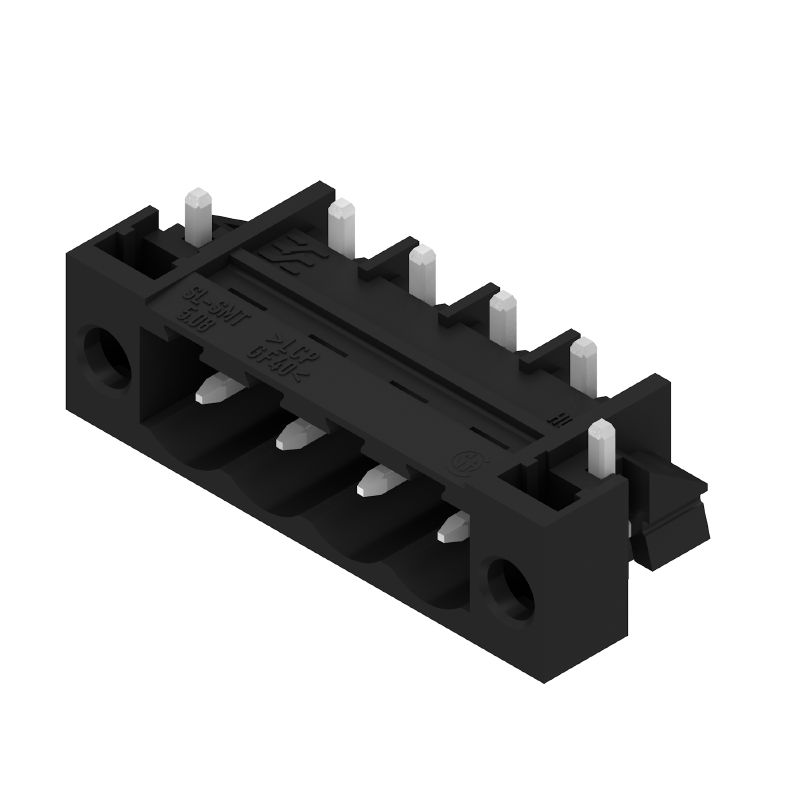

Product image
SL-SMT 5.08HC/04/270FL 1.5SN BK RL

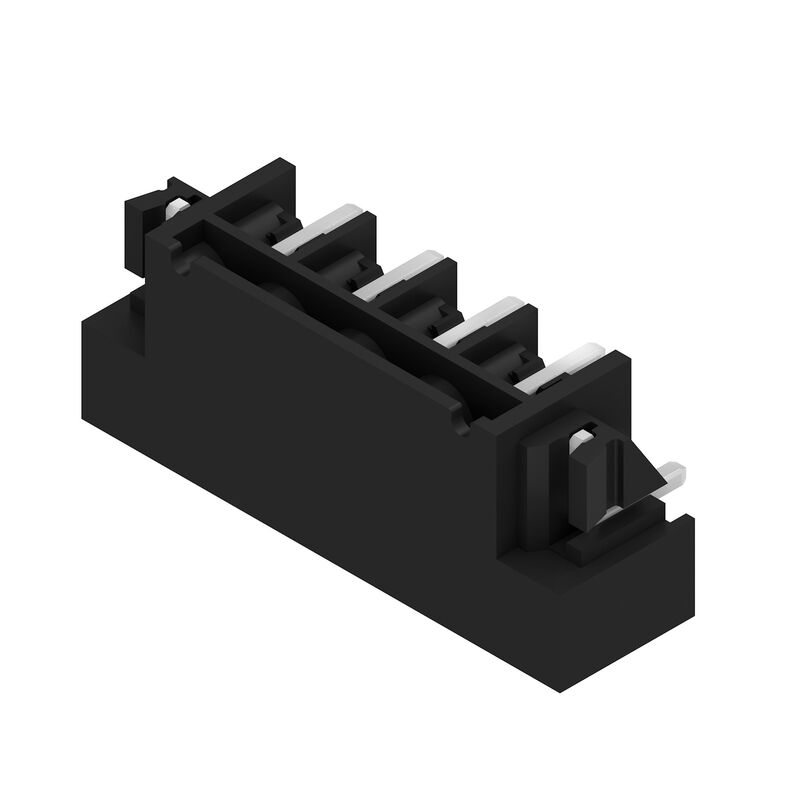

Product image
SL-SMT 5.08HC/04/270FL 1.5SN BK RL
Dimensional drawing
SL-SMT 5.08HC/04/270FL 1.5SN BK RL
Dimensional drawing
SL-SMT 5.08HC/04/270FL 1.5SN BK RL
Dimensional drawing
Optimised for the SMT process
Safe board-to-board connection
SL-SMT 5.08HC/04/270FL 1.5SN BK RL
Example of use
Compliant with existing standards
SL-SMT 5.08HC/04/270FL 1.5SN BK RL
Product benefits
Safe power transmission
Proven properties

SL-SMT 5.08HC/04/270FL 1.5SN BK RL

PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 5.08 mm, Number of poles: 4, 270°, Solder pin length (l): 1.5 mm, tinned, black, Tape

Tuotteen tunnus 1877020000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 4 On vastine kohteelle 31 Samankaltaiset tuotteet 11
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

General ordering data

Version
PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 5.08 mm, Number of poles: 4, 270°, Solder pin length (l): 1.5 mm, tinned, black, Tape
Order No.
1877020000
Type
SL-SMT 5.08HC/04/270FL 1.5SN BK RL
GTIN (EAN)
4032248467662
Qty.
350  items
Product data
IEC: 400 V / 27.5 A
UL: 300 V / 18.5 A
Packaging
Tape

Dimensions and weights

Depth
12  mm
Depth (inches)
0,472  inch
Height
10  mm
Height (inches)
0,394  inch
Height of lowest version
8,5  mm
Width
30,12  mm
Width (inches)
1,186  inch
Net weight
3,482  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Product family
OMNIMATE Signal - series BL/SL 5.08
Type of connection
Board connection
Mounting onto the PCB
THT/THR solder connection
Pitch in mm (P)
5,08  mm
Pitch in inches (P)
0,2  "
Outgoing elbow
270°
Number of poles
4
Number of solder pins per pole
1
Solder pin length (l)
1,5  mm
Solder pin length tolerance
0 / -0.3 mm
Solder pin dimensions
d = 1.2 mm
Octagonal
Solder eyelet hole diameter (D)
1,4  mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
15,24  mm
L1 in inches
0,6  "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Volume resistance
≤5 mΩ
Can be coded
Yes
Plugging force/pole, max.
9  N
Pulling force/pole, max.
7  N

Material data

Insulating material
LCP GF
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of solder connection
1...3 µm Ni / 2...4 µm Sn matt
Layer structure of plug contact
1...3 µm Ni / 2...4 µm Sn matt
Storage temperature, min.
−40  °C
Storage temperature, max.
70  °C
Operating temperature, min.
−50  °C
Operating temperature, max.
100  °C
Temperature range, installation, min.
−30  °C
Temperature range, installation, max.
100  °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
27,5  A
Rated current, max. number of poles (Tu=20°C)
19  A
Rated current, min. number of poles (Tu=40°C)
24  A
Rated current, max. number of poles (Tu=40°C)
16,5  A
Rated voltage for surge voltage class / pollution degree II/2
400  V
Rated voltage for surge voltage class / pollution degree III/2
320  V
Rated voltage for surge voltage class / pollution degree III/3
250  V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4  kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4  kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4  kV

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1176845
Rated voltage (Use group B / CSA)
300  V
Rated voltage (Use group D / CSA)
300  V
Rated current (Use group B / CSA)
18,5  A
Rated current (Use group D / CSA)
18,5  A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (UR)
UR
Certificate No. (UR)
E60693
Rated voltage (Use group B / UL 1059)
300  V
Rated voltage (Use group D / UL 1059)
300  V
Rated current (Use group B / UL 1059)
18,5  A
Rated current (Use group D / UL 1059)
10  A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

ESD Level packaging
static dissipative
Packaging
Tape
VPE length
350  mm
VPE width
330  mm
VPE height
55  mm
Tape depth (T2)
13  mm
Tape width (W)
44 mm
Tape pocket depth (K0)
12,5  mm
Tape pocket height (A0)
12,3  mm
Tape pocket width (B0)
32,5  mm
Tape pocket separation (P1)
16  mm
Tape hole separation (E)
1,75  mm
Tape pocket separation (F)
20,2  mm
Tape reel diameter ∅ (A)
330 mm
Surface resistance
Rs = 109 - 1012 Ω

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Diameter of solder eyelet D = 1.4+0.1mm
  • Solder eyelet diameter D = 1.5 + 0.1 mm, from 9 poles
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
