Ominaisuudet
| Version | graphically programmable logic module incl. programming adapter, CAN interface, Mounting foot |
| Order No. | 2007290000 |

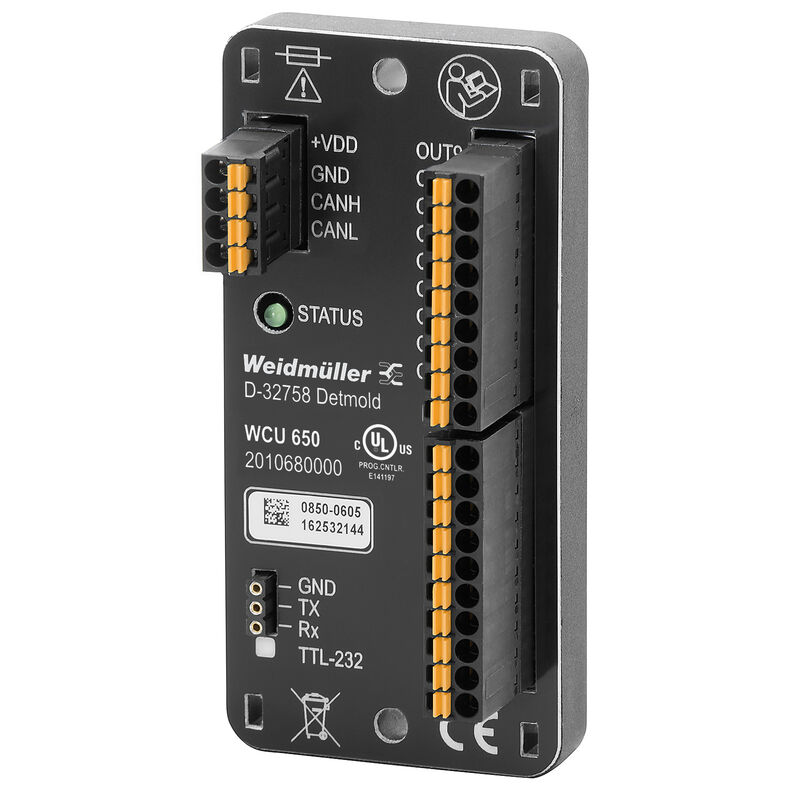

| Type | STARTERKIT WCU 650 |
| GTIN (EAN) | 4050118392517 |
| Qty. | 1 items |
| Delivery status | This article will no longer be available in the future. |
| Available until | 30.06.2024 |
| Alternative product | [2753440000](~/p/2753440000) |
| Depth | 30 mm |
| Depth (inches) | 1,181 inch |
| Height | 93 mm |
| Height (inches) | 3,661 inch |
| Width | 45 mm |
| Width (inches) | 1,772 inch |
| Net weight | 178 g |
| Storage temperature | -40 °C...70 °C |
| Operating temperature | -40 °C...70 °C |
| Humidity | 5 - 95% rel. humidity |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Type of connection | Plug-in spring-type terminals (0.25 - 1.5 mm²) |
| Vibration resistance | min. 50 m/s² (5 g) @ 10…150 Hz |
| Reverse polarity protection | yes (combined with external fuse) |
| Interface | TTL 232 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_164139) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2007290000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2007290000) |
| Software | [Runtime Software -- Programmiersoftware miCon-L](https://mdcop.weidmueller.com/mediadelivery/asset/900_35744) |
| User Documentation |
[Handbuch WCU-Serie Deutsch](https://mdcop.weidmueller.com/mediadelivery/asset/900_40538)
[Manual WCU-Series English](https://mdcop.weidmueller.com/mediadelivery/asset/900_40539) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001417 |
| ETIM 7.0 | EC001417 |
| ETIM 8.0 | EC001417 |
| ETIM 9.0 | EC001417 |
| ECLASS 9.0 | 27-24-22-16 |
| ECLASS 9.1 | 27-24-22-16 |
| ECLASS 10.0 | 27-24-22-16 |
| ECLASS 11.0 | 27-24-22-16 |
| ECLASS 12.0 | 27-24-22-16 |
| ECLASS 13.0 | 27-24-22-16 |
| ECLASS 14.0 | 27-24-22-16 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
On lisävaruste
-
Tuotteen tunnus:2010680000VPE:1 items
graphically programmable logic module, CAN interface, Mounting foot
ControlsLogic UnitLogic Unit
