Ominaisuudet
| Version | Tools, Stripping and cutting tool |
| Order No. | 9005000000 |
| Type | STRIPAX |
| GTIN (EAN) | 4008190072506 |
| Qty. | 1 items |
| Depth | 22 mm |
| Depth (inches) | 0,866 inch |
| Height | 99 mm |
| Height (inches) | 3,898 inch |
| Width | 190 mm |
| Width (inches) | 7,48 inch |
| Net weight | 174,63 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0 |

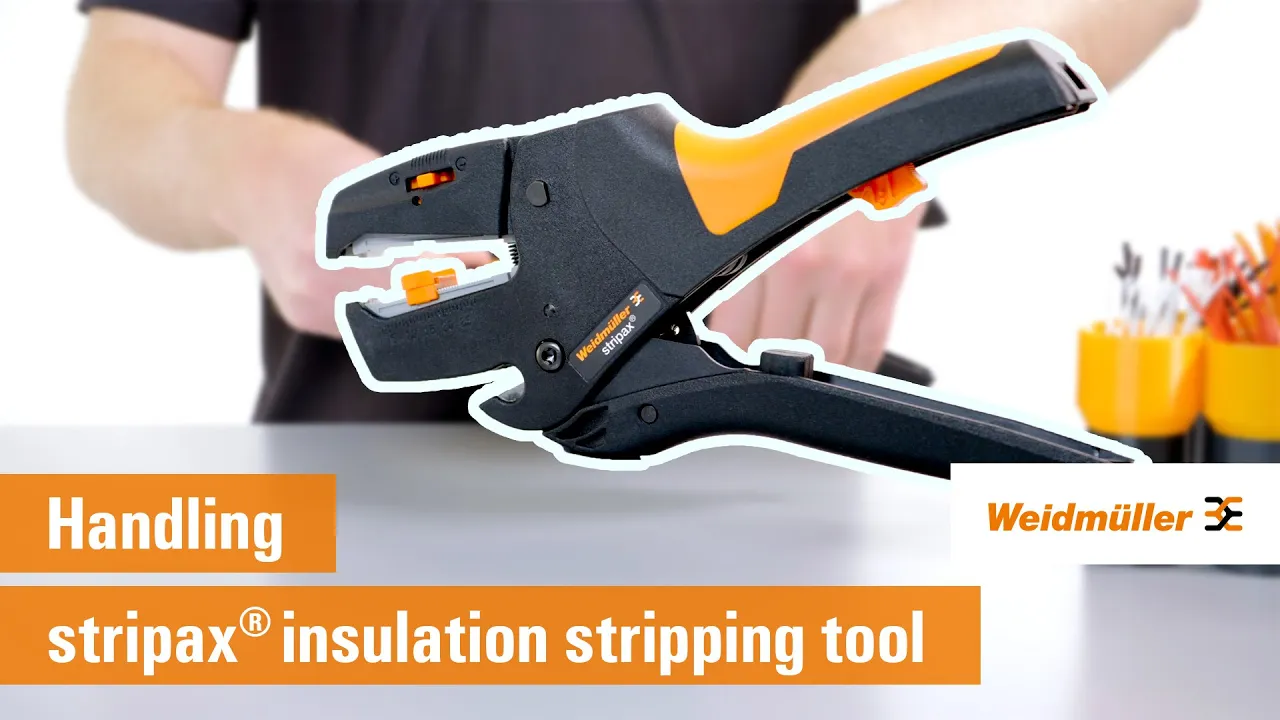

| Description of article | Stripping tool for up to 10 mm² |
| Cable type | Flexible and solid conductors with PVC insulation |
| Conductor cross-section (cutting capacity) | 6 mm² |
| Conductor cross-section, max. | 10 mm² |
| Conductor cross-section, min. | 0,08 mm² |
| Stripping length, max. | 25 mm |
| Stripping range AWG, max. | 8 AWG |
| Stripping range AWG, min. | 28 AWG |
| Stripping range, min. | 0,08 mm² |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66791) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9005000000) |
| Product Change Notification |
[Technische Änderung für Abisolierwerkzeug Stripax](https://mdcop.weidmueller.com/mediadelivery/asset/900_310793)
[Technical change to stripping tool Stripax](https://mdcop.weidmueller.com/mediadelivery/asset/900_310836) |
| User Documentation |
[Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_101183)
[Library and function block -- BDAL Stripax all version](https://mdcop.weidmueller.com/mediadelivery/asset/900_311055) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002109 |
| ETIM 7.0 | EC002109 |
| ETIM 8.0 | EC002109 |
| ETIM 9.0 | EC002109 |
| ECLASS 9.0 | 21-04-37-06 |
| ECLASS 9.1 | 21-04-37-06 |
| ECLASS 10.0 | 21-04-37-06 |
| ECLASS 11.0 | 21-04-37-06 |
| ECLASS 12.0 | 21-04-37-06 |
| ECLASS 13.0 | 21-04-37-06 |
| ECLASS 14.0 | 21-04-37-06 |
