Ominaisuudet

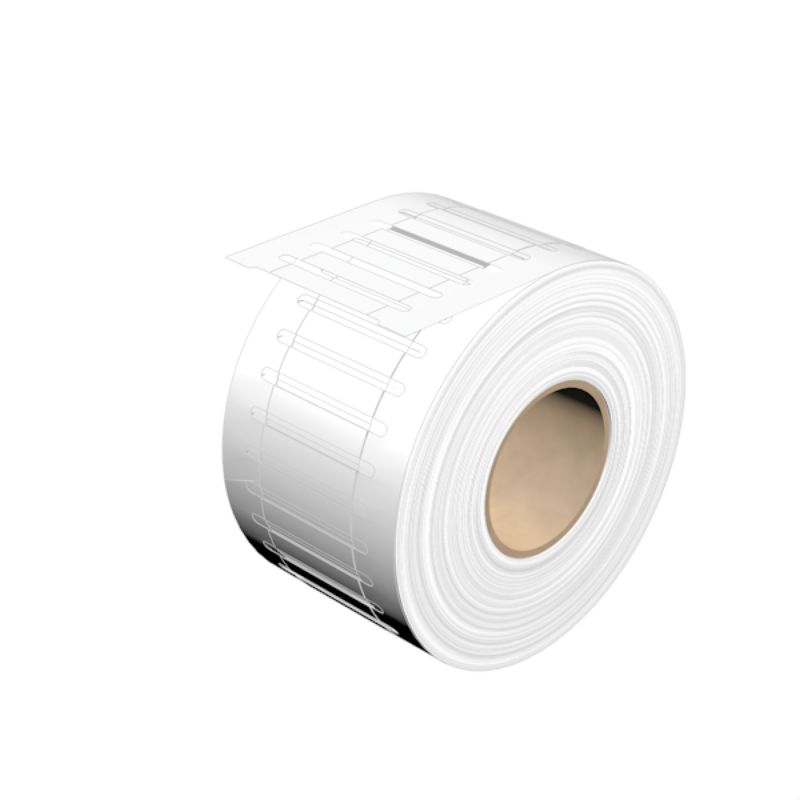

| Version | Terminal markers, Insert markers, 27 x 6.3 mm, white |
| Order No. | 1339570000 |
| Type | THM ESO 7 PA WS |
| GTIN (EAN) | 4050118144208 |
| Qty. | 1 items |
| Height | 27 mm |
| Height (inches) | 1,063 inch |
| Width | 6,3 mm |
| Width (inches) | 0,248 inch |
| Net weight | 327 g |
| Operating temperature range | -40...70 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | white |
| Material | Paper |
| Number of markers per combination | 1 Label reel = 2500 Insert markers |
| Number of markers per packaging unit | 2500 |
| Number of markers per packaging unit |
|
| Number per roll | 2500 |
| Operating temperature range | -40...70 °C |
| Operating temperature range, max. | 70 °C |
| Operating temperature range, min. | −40 °C |
| Width | 6,3 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61257) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1339570000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1339570000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000761 |
| ETIM 7.0 | EC000761 |
| ETIM 8.0 | EC000761 |
| ETIM 9.0 | EC000761 |
| ECLASS 9.0 | 27-14-11-37 |
| ECLASS 9.1 | 27-14-11-37 |
| ECLASS 10.0 | 27-14-11-37 |
| ECLASS 11.0 | 27-28-11-01 |
| ECLASS 12.0 | 27-28-11-01 |
| ECLASS 13.0 | 27-28-11-01 |
| ECLASS 14.0 | 27-28-11-01 |
| ROHS | Conform |
Lisävarusteet
-
Tuotteen tunnus:1631910000VPE:50 items

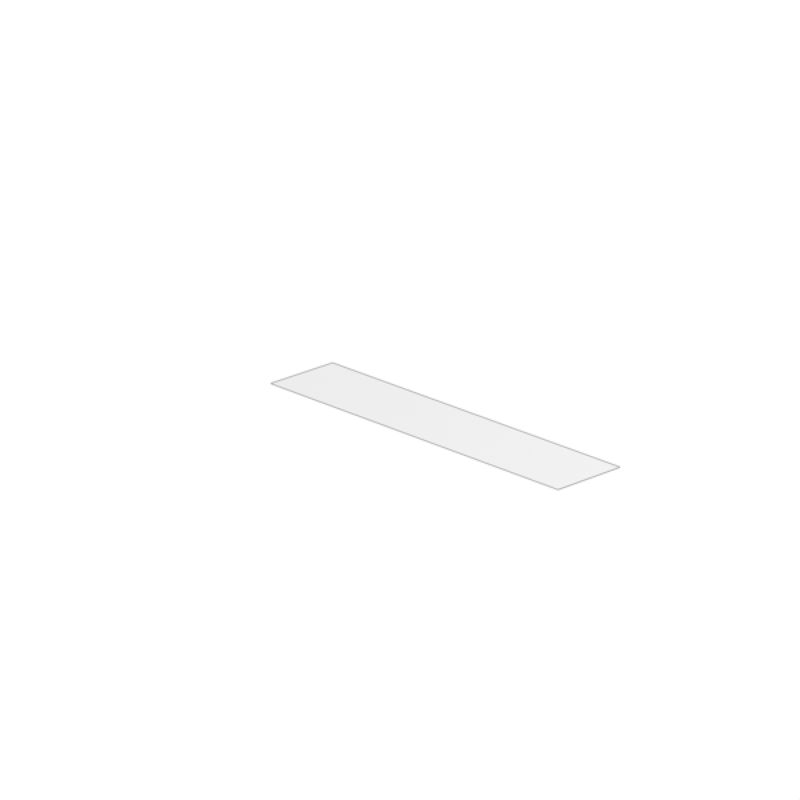

WKM, Conductor and cable markers, 7 - 115 mm, 30 x 8 mm, Wire and cable markers, Transparent
-
