Ominaisuudet

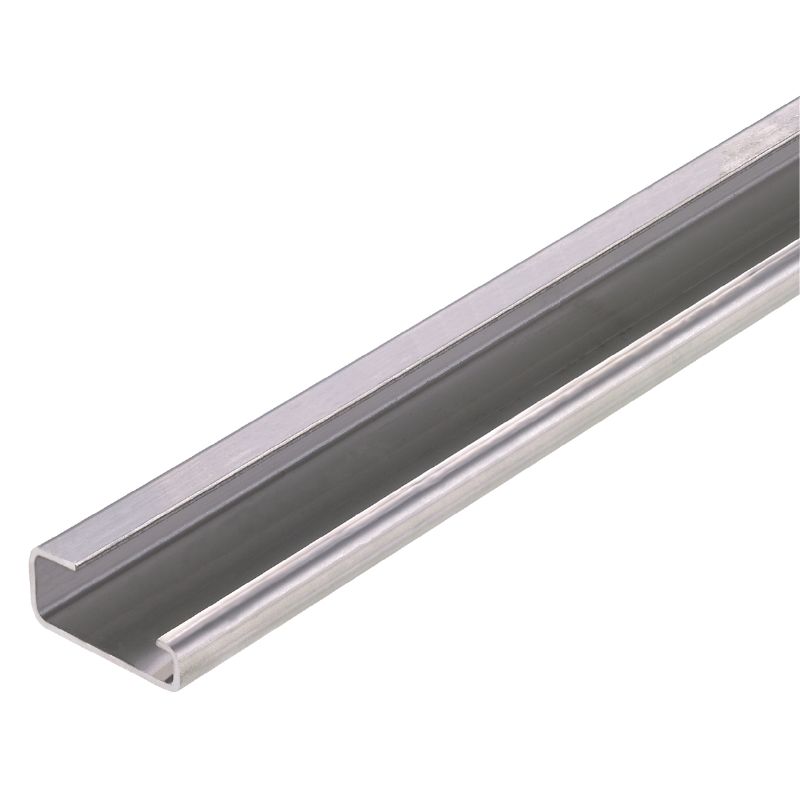

| Version | Terminal rail, Accessories, Stainless steel, rust-proof, untreated, Width: 2000 mm, Height: 33 mm, Depth: 15 mm |
| Order No. | 0293220000 |
| Type | TS 32X15 2M/CRN |
| GTIN (EAN) | 4032248014026 |
| Qty. | 2 |
| Depth | 15 mm |
| Depth (inches) | 0,591 inch |
| Height | 33 mm |
| Height (inches) | 1,299 inch |
| Width | 2 000 mm |
| Width (inches) | 78,74 inch |
| Net weight | 701 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Installation advice | Direct mounting |
| Length of the terminal rail |
|
| Material | Stainless steel, rust-proof |
| Pre-punched mounting rail | No |
| Slit gap |
|
| Slit length |
|
| Slit width |
|
| Spacing of holes, centre-to-centre | 0 mm |
| Standards | DIN EN 60715 |
| Surface finish | untreated |
| Thickness | 1,5 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_58949) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0293220000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0293220000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001285 |
| ETIM 7.0 | EC001285 |
| ETIM 8.0 | EC001285 |
| ETIM 9.0 | EC001285 |
| ECLASS 9.0 | 27-40-06-02 |
| ECLASS 9.1 | 27-40-06-02 |
| ECLASS 10.0 | 27-40-06-02 |
| ECLASS 11.0 | 27-40-06-02 |
| ECLASS 12.0 | 27-40-06-02 |
| ECLASS 13.0 | 27-40-06-02 |
| ECLASS 14.0 | 27-40-06-02 |
| ROHS | Conform |
