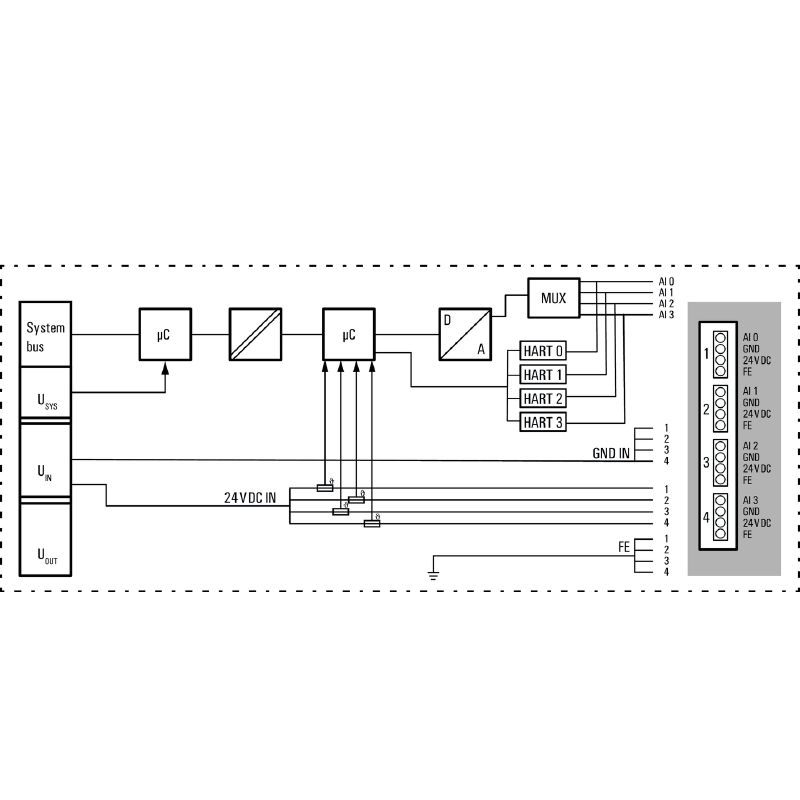

Ominaisuudet
| Version | Remote I/O module, IP20, Analog signals, Input, 4-channel, HART® |
| Order No. | 2617520000 |
| Type | UR20-4AI-I-HART-16-DIAG |
| GTIN (EAN) | 4050118622331 |
| Qty. | 1 items |
| Depth | 76 mm |
| Depth (inches) | 2,992 inch |
| Height | 120 mm |
| Height (inches) | 4,724 inch |
| Width | 11,5 mm |
| Width (inches) | 0,453 inch |
| Mounting dimension - height | 128 mm |
| Net weight | 88 g |
| Storage temperature | -40 °C ... +85 °C |
| Operating temperature | -20 °C ... +60 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 82327f13-cd27-455a-ab5b-a62e1996dcf8 |
| Accuracy | 0.1% FSR |
| Conversion time | 1 ms |
| Individual channel diagnosis | Yes |
| Input value | Current I (0…20 mA, 4…20 mA) |
| Internal resistance I | 250 Ω |
| Module diagnosis | Yes |
| Number of analogue inputs | 4 |
| Resolution | 16 Bit |
| Reverse polarity protection | Yes |
| Sensor connection |
2-wire
3-wire 4-wire |
| Sensor supply | Yes |
| Type | 2. I (0–20 mA or 4–20 mA) |
| Type of connection | PUSH IN |
| Wire connection cross section, finely stranded, max. | 1,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,14 mm² |
| Wire cross-section, finely stranded, max. (AWG) | AWG 16 |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, solid, max. | 1,5 mm² |
| Wire cross-section, solid, max. (AWG) | AWG 16 |
| Wire cross-section, solid, min. | 0,14 mm² |
| Wire cross-section, solid, min. (AWG) | AWG 26 |
| Air humidity (operation) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air humidity (storage) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air humidity (transport) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air pressure (operation) | ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2 |
| Air pressure (storage) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Air pressure (transport) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Pollution severity | 2 |
| Rail | TS 35 |
| Shock | 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27 |
| Surge voltage category | II |
| Test voltage | 500 V |
| UL 94 flammability rating | V-0 |
| Vibration resistance |
5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6
8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6 |
| Current consumption from IIN (the respective power segment) | 27 mA + Sensor feed |
| Current consumption from Isys, typ. | 8 mA |
| Reverse polarity protection | Yes |
| Voltage supply |
24 V DC +20 %/ -15 %
via the system bus |
| Connection type | PUSH IN |
| Field bus protocol |
EtherCAT
PROFIBUS DP-V1 Modbus/TCP EtherNet/IP PROFINET IRT |
| Galvanic isolation | 500 V DC between the current paths |
| Interface | u-remote system bus |
| Module type | Analogue input module |
| Transmission speed of system bus, max. | 48 Mbit |
| Approval/Certificate/Document of Conformity |
[KC certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_293738)
[Lloyds Register certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_49585) [CE Declaration of Conformity - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_281447) [DNV certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_49586) [RINA certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_52872) [Bureau Veritas - Type Approval Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_90817) [DEMKO15ATEX1525X](https://mdcop.weidmueller.com/mediadelivery/asset/900_216513) [KR Korean register certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_236881) [CCS certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_314296) [CCS certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_321094) [UKCA Declaration of Conformity - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_262121) |
| Engineering Data |
[Compatibility information -- Combinability of UR20](https://mdcop.weidmueller.com/mediadelivery/asset/900_164873)
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_289008) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2617520000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2617520000) |
| Software |
[WI-Manager, DTM-Library for online installation](https://mdcop.weidmueller.com/mediadelivery/asset/900_35364)
[Firmware -- Current firmware UR20-4AI-I-HART-16-DIAG](https://mdcop.weidmueller.com/mediadelivery/asset/900_165338) [Release notes for Weidmueller FDT-DTM Software version](https://mdcop.weidmueller.com/mediadelivery/asset/900_248446) |
| User Documentation |
[Handbuch u-remote DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_49496)
[Manual u-remote EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_49497) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001596 |
| ETIM 7.0 | EC001596 |
| ETIM 8.0 | EC001596 |
| ETIM 9.0 | EC001596 |
| ECLASS 9.0 | 27-24-26-01 |
| ECLASS 9.1 | 27-24-26-01 |
| ECLASS 10.0 | 27-24-26-01 |
| ECLASS 11.0 | 27-24-26-01 |
| ECLASS 12.0 | 27-24-26-01 |
| ECLASS 13.0 | 27-24-26-01 |
| ECLASS 14.0 | 27-24-26-01 |
| Approvals |                |
| ROHS | Conform |
