Ominaisuudet

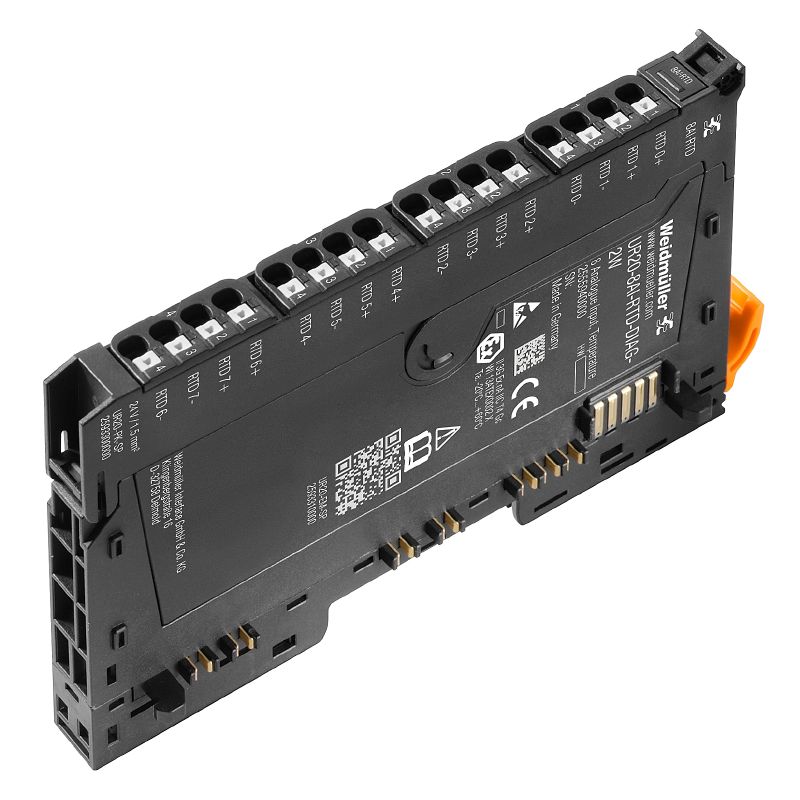

| Version | Remote I/O module, IP20, Analog signals, Temperature, RTD |
| Order No. | 2555940000 |
| Type | UR20-8AI-RTD-DIAG-2W |
| GTIN (EAN) | 4050118566062 |
| Qty. | 1 items |
| Depth | 76 mm |
| Depth (inches) | 2,992 inch |
| Height | 120 mm |
| Height (inches) | 4,724 inch |
| Width | 11,5 mm |
| Width (inches) | 0,453 inch |
| Mounting dimension - height | 128 mm |
| Net weight | 91 g |
| Storage temperature | -40 °C ... +85 °C |
| Operating temperature | -20 °C ... +60 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 82327f13-cd27-455a-ab5b-a62e1996dcf8 |
| Accuracy | 0.2% FSR / 0.3% FSR for Ni sensors / 0.6% FSR for Cu10 |
| Conversion time | 80 ms |
| Individual channel diagnosis | Yes |
| Measured temperature value, max. | 850 °C |
| Measured temperature value, min. | −200 °C |
| Module diagnosis | Yes |
| Number of analogue inputs | 8 |
| Resolution | 16 Bit |
| Reverse polarity protection | Yes |

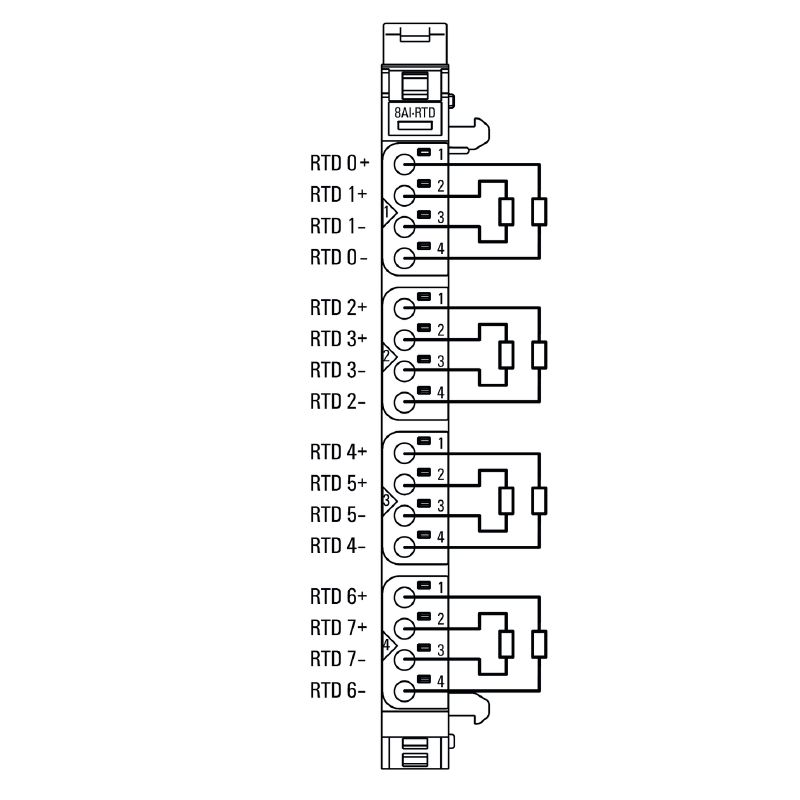

| Sensor connection | 2-wire |
| Temperature coefficient | ≤ 50 ppm/K |
| Type | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni 200, Ni500, Ni1000, Cu10, 40Ω, 80Ω, 150Ω, 300Ω, 500Ω,1kΩ, 2kΩ,4kΩ |
| Type of connection | PUSH IN |
| Wire connection cross section, finely stranded, max. | 1,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,14 mm² |
| Wire cross-section, finely stranded, max. (AWG) | AWG 16 |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, solid, max. | 1,5 mm² |
| Wire cross-section, solid, max. (AWG) | AWG 16 |
| Wire cross-section, solid, min. | 0,14 mm² |
| Wire cross-section, solid, min. (AWG) | AWG 26 |
| Air humidity (operation) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air humidity (storage) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air humidity (transport) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air pressure (operation) | ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2 |
| Air pressure (storage) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Air pressure (transport) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Pollution severity | 2 |
| Rail | TS 35 |
| Shock | 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27 |
| Surge voltage category | II |
| Test voltage | 500 V |
| UL 94 flammability rating | V-0 |
| Vibration resistance |
5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6
8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6 |
| Current consumption from IIN (the respective power segment) | < 20 mA |
| Current consumption from Isys, typ. | 8 mA |
| Reverse polarity protection | Yes |
| Voltage supply |
24 V DC +20 %/ -15 %
via the system bus |
| Field bus protocol |
PROFINET IRT
PROFINET RT CC-Link IE TSN PROFIBUS DP-V1 EtherCAT Modbus/TCP EtherNet/IP CANopen DeviceNet POWERLINK CC-Link |
| Galvanic isolation | 500 V DC between the current paths |
| Interface | u-remote system bus |
| Module type | Temperature module |
| Transmission speed of system bus, max. | 48 Mbit |
| Approval/Certificate/Document of Conformity |
[KC certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_293738)
[Lloyds Register certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_49585) [DNV certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_49586) [RINA certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_52872) [DEMKO15ATEX1525X](https://mdcop.weidmueller.com/mediadelivery/asset/900_216513) [CCS certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_314296) [CCS certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_321094) [UKCA Declaration of Conformity - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_262439) [CE Declaration of Conformity - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_281445) |
| Engineering Data |
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66375)
[Compatibility information -- Combinability of UR20](https://mdcop.weidmueller.com/mediadelivery/asset/900_164873) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2555940000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2555940000) |
| User Documentation |
[Handbuch u-remote DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_49496)
[Manual u-remote EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_49497) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001596 |
| ETIM 7.0 | EC001596 |
| ETIM 8.0 | EC001596 |
| ETIM 9.0 | EC001596 |
| ECLASS 9.0 | 27-24-26-01 |
| ECLASS 9.1 | 27-24-26-01 |
| ECLASS 10.0 | 27-24-26-01 |
| ECLASS 11.0 | 27-24-26-01 |
| ECLASS 12.0 | 27-24-26-01 |
| ECLASS 13.0 | 27-24-26-01 |
| ECLASS 14.0 | 27-24-26-01 |
| Approvals |                  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
| Certificate no. (cULusEX) | E223527 |
