VSPC TAZ 4CH 24V

Surge protection for instrumentation and control, without warning function / function indicator, U_P(L/N-PE) 65 V

Tuotteen tunnus 8924650000

Ominaisuudet

General ordering data

Version	Surge protection for instrumentation and control, without warning function / function indicator, U_P(L/N-PE) 65 V
Order No.	8924650000
Type	VSPC TAZ 4CH 24V
GTIN (EAN)	4032248696291
Qty.	1 items

Dimensions and weights

Depth	69 mm
Depth (inches)	2,717 inch
Height	90 mm
Height (inches)	3,543 inch
Width	17,8 mm
Width (inches)	0,701 inch
Net weight	40 g

Temperatures

Storage temperature	-40 °C...80 °C
Operating temperature	-40 °C...70 °C
Humidity	5...96 %

Probability of failure

SIL in compliance with IEC 61508	3
MTTF	3 567 a
SFF	100 %
λges	32
PFH in 1*10^-9 per hour	0

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	7a
REACH SVHC	Lead 7439-92-1
SCIP	71e97bb7-979f-4330-94c0-20c629bb05e3

Rated data UL

Certificate No. (UL)	E311081
UL certificate	[UL 497b Certificate](PDF/E311081VOL1SEC2.pdf)

CSA protection data

Gas group C	IIB
Gas group D	IIA
Gas groups A, B	IIC
Input voltage, max. U_i	39 V
Internal capacity, max. C_I	4 nF
Internal inductance, max. L_I	0 µH

General data

Colour	orange
Design	Terminal miscellaneous
Optical function display	No
Protection degree	IP20
Segment	Measurement - Monitoring - Setting
UL 94 flammability rating	V-0
Version	without warning function / function indicator

Insulation coordination acc. to EN 50178

Pollution severity	2
Surge voltage category	III

Rated data IEC / EN

Capacitance	680 pF
Discharge current I_max (8/20µs) wire-wire	0,1 kA
Discharge current I_n (8/20µs) wire-wire	0.05 kA
Fuse	10A
Max. continuous voltage, Uc (AC)	28 V
Max. continuous voltage, Uc (DC)	39 V
Number of poles	2
Overload - failure mode	Mode 1
Protection level on output side Wire-PE 1kV/µs, typically	55 V
Protection level on output side Wire-wire 1 kV/µs, typically	50 V
Protection level on output side Wire-wire 8/20 µs, typically	55 V
Protection level U_P (typ.)	65 V
Protection level, U_P wire - PE	55 V
Rated current I_N	10 A
Rated voltage (AC)	24 V
Rated voltage (DC)	28 V
Requirements category acc. to IEC 61643-21	C3
Signalling contact	No
Standards	According to IEC61643-21
Surge current-carrying capacity C3	20 A 10/1000 μs
Voltage type	DC
Volume resistance	0.20 Ω

Further details of approvals

GOST certificate

[GOST-Zertifikat](PDF/7950_n1-n4.pdf)

Connection data

Type of connection

Pluggable in VSPC BASE

Electrical data

Voltage type

General data

Number of poles	2
Protection degree	IP20
Colour	orange

Ratings IECEx/ATEX/cUL

cUL certificate

[cUL Certificate](pdf/VSPC.PDF)

Guarantee

Time interval

5 years

Important note

Product information

External wire bridges must be used for connection to PE.Mode 2: State where the voltage-limiting part of the SPD was short-circuited due to a very low impedance within the SPD. The line is inoperable, but the measuring equipment is still protected by means of a short-circuit.

Downloads

Approval/Certificate/Document of Conformity	[SIL Paper](https://mdcop.weidmueller.com/mediadelivery/asset/900_35329) [EU_Konformitätserklärung / EU_Declaration_of_Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_86287)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_45914)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.8924650000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8924650000)
User Documentation	[Beipackzettel / Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_35342)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000943
ETIM 7.0	EC000943
ETIM 8.0	EC000943
ETIM 9.0	EC000943
ECLASS 9.0	27-13-08-07
ECLASS 9.1	27-13-08-07
ECLASS 10.0	27-13-08-07
ECLASS 11.0	27-13-08-07
ECLASS 12.0	27-17-90-90
ECLASS 13.0	27-17-90-90
ECLASS 14.0	27-17-90-90

Tender specification sheets

Long specification

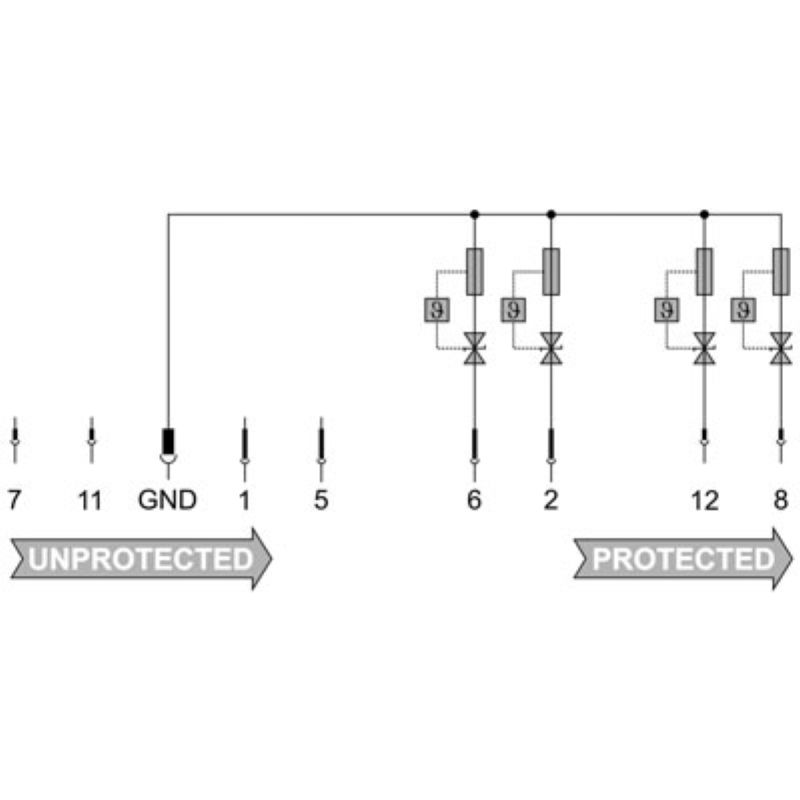

Surge protection plug for base element VSPC BASE 2/4CH, common mode voltage protection for four cables. Version: 24 V AC Single-stage protective circuitry in plug, consisting of suppressor protection to the common ground. Mechanical identification of the plug to the base element according to the switching type and rated voltage. Protected plug with coding pin and counter-profile for the base element. Optical identification of the protected plug based on the type of protected switching and the voltage level. It is possible to mark the plug.

Short specification

Surge protection plug for base element VSPC BASE 2/4CH, fine common mode voltage protection for four cables. Version: 24 V AC
