Ominaisuudet
| Version | cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm² |
| Order No. | 1491550000 |
| Type | VSTI/0,5-1,0 |
| GTIN (EAN) | 4050118301731 |
| Qty. | 100 items |
| Net weight | 1,22 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Conductor cross-section | 1 mm² |
| Conductor cross-section, max. | 1 mm² |
| Conductor cross-section, min. | 0,5 mm² |
| Identification colour | red |

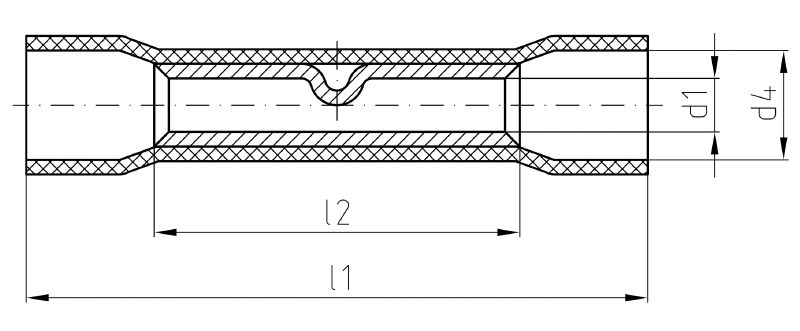

| Inside diameter of collar (d4) | 4,1 mm |
| Inside diameter of shaft (d1) | 1,6 mm |
| Insulation | Fully insulated |
| Length 1 (I1) | 25 mm |
| Length 2 (I2) | 15 mm |
| Material/plastic | PC |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001059 |
| ETIM 7.0 | EC001059 |
| ETIM 8.0 | EC001059 |
| ETIM 9.0 | EC001059 |
| ECLASS 9.0 | 27-40-02-12 |
| ECLASS 9.1 | 27-40-02-12 |
| ECLASS 10.0 | 27-40-02-12 |
| ECLASS 11.0 | 27-40-02-12 |
| ECLASS 12.0 | 27-40-02-12 |
| ECLASS 13.0 | 27-40-02-12 |
| ECLASS 14.0 | 27-40-02-12 |
| ROHS | Conform |
