Ominaisuudet

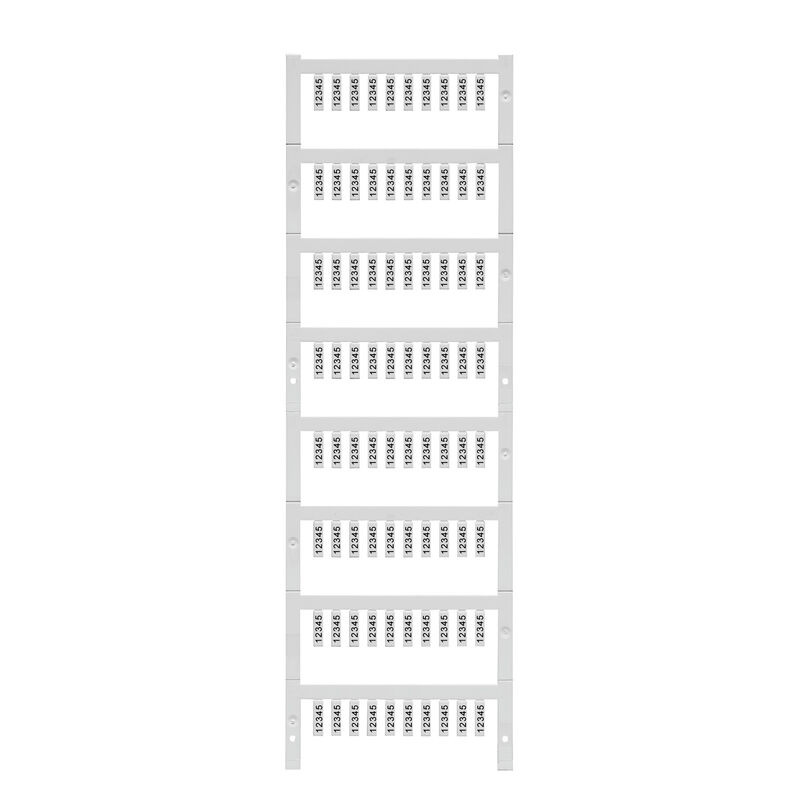

| Version | SlimFix, Conductor and cable markers, 1.2 - 1.6 mm, 12 x 3.2 mm, To customer specification |
| Order No. | 1906830000 |
| Type | VT SF 0/12 MC SDR V0 |
| GTIN (EAN) | 4032248529223 |
| Qty. | 80 items |
| Alternative product | [1919250000](~/p/1919250000) |
| Depth | 3,2 mm |
| Depth (inches) | 0,126 inch |
| Height | 12 mm |
| Height (inches) | 0,472 inch |
| Width | 3,2 mm |
| Width (inches) | 0,126 inch |
| Net weight | 0,16 g |
| Operating temperature range | -50...120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Advice label | Colour based on customer requirements (Please send M-Print PRO file) |
| Colour | To customer specification |
| Colour of printing | black |
| compatible printer | [PRINTJET CONNECT](~/p/2715590000) |
| Halogen | No |
| Material | Polyamide 66 |
| Number of markers per combination | 1 MultiCard = Conductor and cable markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -50...120 °C |
| Operating temperature range, max. | 120 °C |
| Operating temperature range, min. | −50 °C |
| Orientation of print | horizontal |
| Printed characters | Based on customer requirements (Please send M-Print PRO file) |
| Printing method | MC Laser |
| Size of labelling field | 12 x 3.2 mm |
| Type of printing | To customer specification |
| UL 94 flammability rating | V-0 |
| Width | 3,2 mm |
| Conductor cross-section, max. | 0,5 mm² |
| Conductor cross-section, min. | 0,25 mm² |
| Conductor O.D. | 1.2 - 1.6 mm |
| Conductor O.D., max. | 1,6 mm |
| Conductor O.D., min. | 1,2 mm |
| Cross-section for connected wire | 0.25 - 0.5 mm² |
| Halogen | No |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1906830000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
