Ominaisuudet

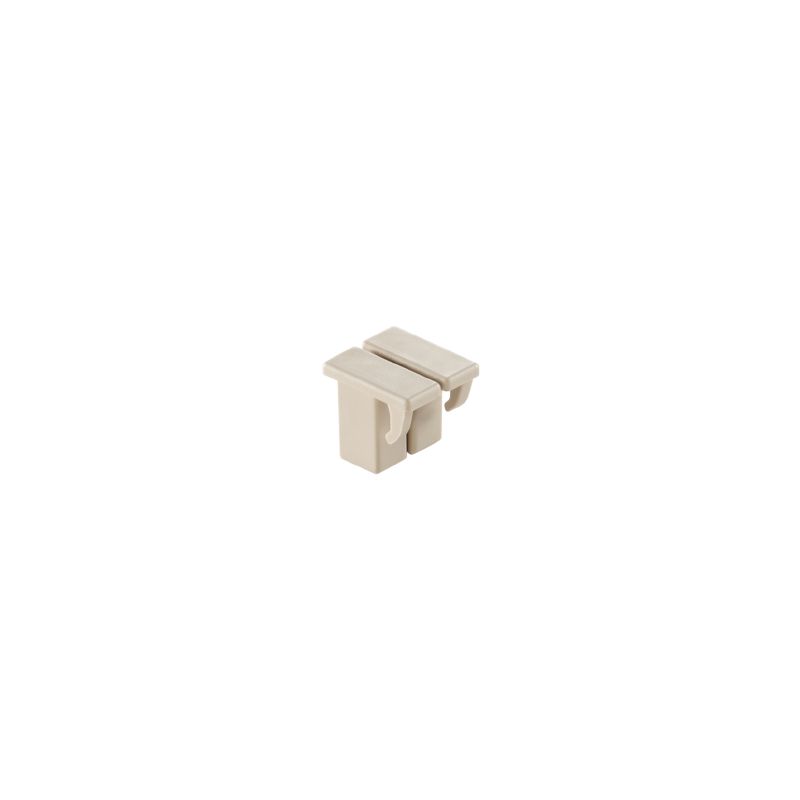

| Version | Terminal cover, dark beige, Wemid, Height: 11 mm, Width: 9.96 mm, Depth: 9.68 mm, V-0 |
| Order No. | 1142970000 |
| Type | WAD WMF2.5 |
| GTIN (EAN) | 4032248926039 |
| Qty. | 50 items |
| Depth | 9,68 mm |
| Depth (inches) | 0,381 inch |
| Height | 11 mm |
| Height (inches) | 0,433 inch |
| Width | 9,96 mm |
| Width (inches) | 0,392 inch |
| Net weight | 0,53 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | −50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version | For the terminals |
| Number of poles | 2 |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60559) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1142970000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1142970000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
