Ominaisuudet

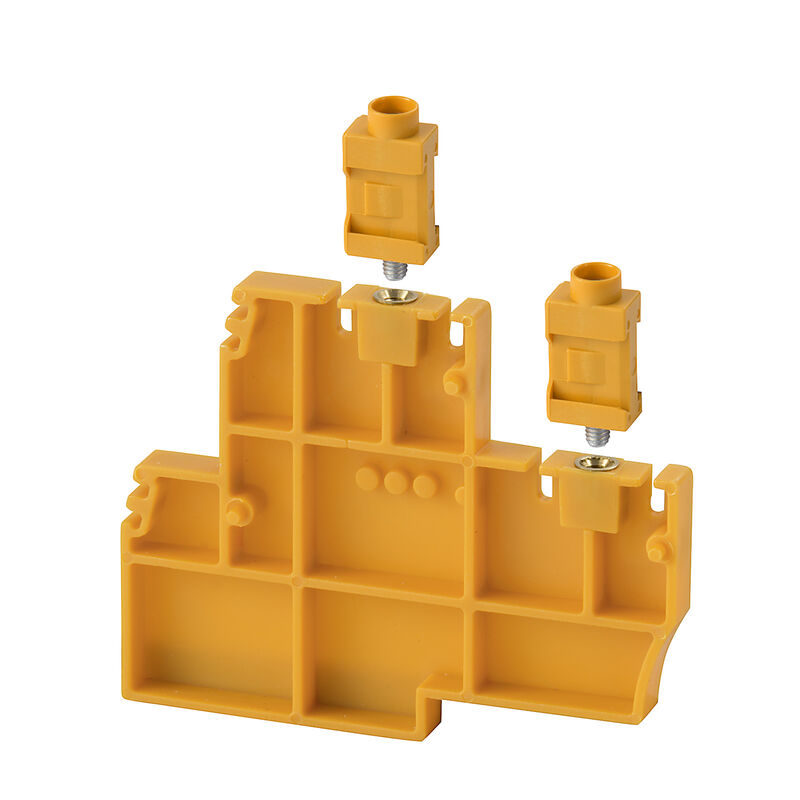

| Version | Partition plate (terminal), orange, Height: 58 mm, Width: 5 mm, V-2, PA 66 |
| Order No. | 1072760000 |
| Type | WBB ZA WDK2.5/BL5.08 |
| GTIN (EAN) | 4008190470548 |
| Qty. | 10 items |
| Depth | 45,2 mm |
| Depth (inches) | 1,78 inch |
| Height | 58 mm |
| Height (inches) | 2,283 inch |
| Width | 5 mm |
| Width (inches) | 0,197 inch |
| Net weight | 7,48 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | −50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 936a8f21-8ce1-4838-a60e-9ad69268c052 |
| Material | PA 66 |
| Colour | orange |
| UL 94 flammability rating | V-2 |
| Version | End and intermediate plate |
| Installation advice | Direct mounting |
| Snap-on | No |
| Installation advice | Direct mounting |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60270) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1072760000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1072760000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
On lisävaruste
-
Tuotteen tunnus:1038100000VPE:50 items
Multi-tier modular terminal, Screw connection, dark beige, 2.5 mm², 250 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Tuotteen tunnus:1034400000VPE:50 items
Multi-tier modular terminal, Screw connection, dark beige, 2.5 mm², 250 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Tuotteen tunnus:1027410000VPE:50 items
Multi-tier modular terminal, Screw connection, dark beige, 2.5 mm², 250 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
Terminal BlocksUniversal rangeClamping yoke technologyW-SeriesStandardterminal blocks with miscellaneous connection2-tier2.5 mm²
