Properties
| Version | Terminal (busbar connection) |
| Order No. | 2603850000 |

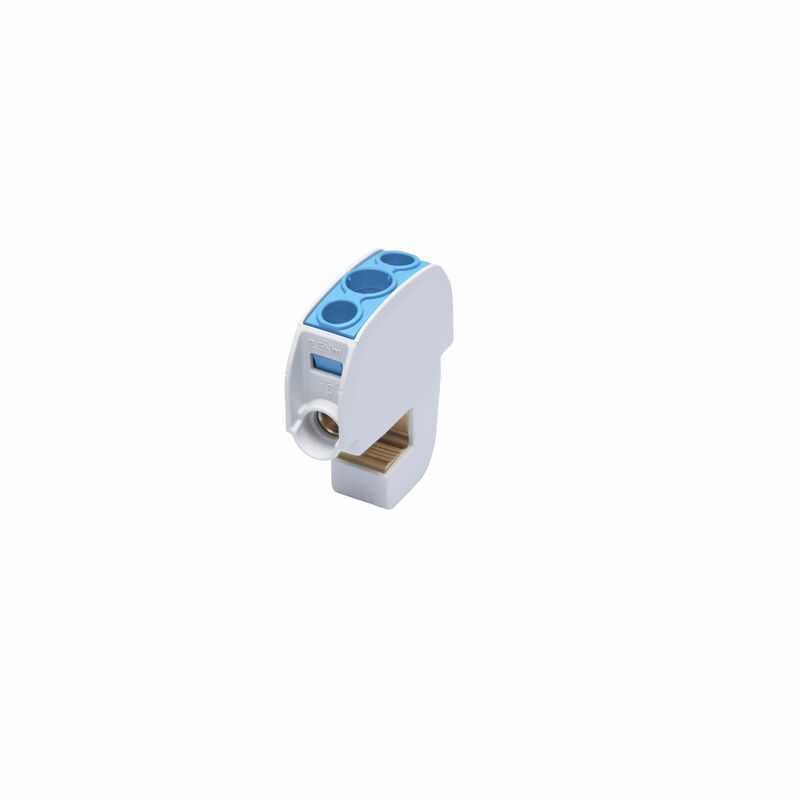

| Type | WBBD 16 BL |
| GTIN (EAN) | 4050118651584 |
| Qty. | 12 items |
| Depth | 55.2 mm |
| Depth (inches) | 2.173 inch |
| Height | 47.8 mm |
| Height (inches) | 1.882 inch |
| Width | 15.2 mm |
| Width (inches) | 0.598 inch |
| Net weight | 76.5 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 8eb3a2db-1bf7-4e36-90c8-13894424d475 |
| Material | Wemid |
| Insulating material | Wemid |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Version | Screw connection |
| End cover plate required | No |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Installation advice | Terminal rail / mounting plate |
| Type of mounting | Snap-on |
| Blade size | Gr. PZ2 |
| Clamping range, max. | 16 mm² |
| Clamping range, min. | 1.5 mm² |
| Clamping screw | M 6 |
| Connection cross-section, stranded, max. | 16 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection direction | on side |
| Number of connections | 2 |
| Stripping length | 12 mm |
| Tightening torque, max. | 2.5 Nm |
| Tightening torque, min. | 2.5 Nm |
| Type of connection | Screw connection |
| Wire connection cross section, finely stranded, max. | 16 mm² |
| Wire connection cross section, finely stranded, min. | 1 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 1 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 1.5 mm² |
| Installation advice | Terminal rail / mounting plate |
| Standards | IEC 60947-7-1 |
| Rated cross-section | 16 mm² |
| Rated voltage | 690 V |
| Rated DC voltage | 690 V |
| Rated current | 114 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0.42 mΩ |
| Power loss in accordance with IEC 60947-7-x | 2.43 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Approval/Certificate/Document of Conformity |
[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_245732)
[Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205546) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2603850000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2603850000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2603850000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000001 |
| ETIM 7.0 | EC000001 |
| ETIM 8.0 | EC000001 |
| ETIM 9.0 | EC000001 |
| ECLASS 9.0 | 27-14-11-46 |
| ECLASS 9.1 | 27-14-11-46 |
| ECLASS 10.0 | 27-14-11-46 |
| ECLASS 11.0 | 27-14-11-46 |
| ECLASS 12.0 | 27-14-11-46 |
| ECLASS 13.0 | 27-25-01-16 |
| Approvals |   |
| ROHS | Conform |
