Ominaisuudet
| Order No. | 2905370000 |
| Type | WBC-P-8BK-50 |
| GTIN (EAN) | 4099986026032 |
| Qty. | 5 items |
| Net weight | 45 g |
| Continuous operating temp., min. | −40 °C |
| Continuous operating temp., max. | 125 °C |
| Humidity | ≤85% RH |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| Approvals | UL 4128 |
| Colour | black |
| Conductor cross-section, max. | 50 mm² |
| Contact diameter, male Ø | 8 mm |
| Material | PA 66 |
| Outer cable diameter, max. | 13,2 mm |
| Outer cable diameter, min. | 12,5 mm |
| Surface finish | silver |
| Type | Female |
| Type of connection | Crimp connection |
| Operating altitude | ≤ 2000 m |
| Plugging cycles | ≥ 100 |
| Protection degree | IP67 plugged |

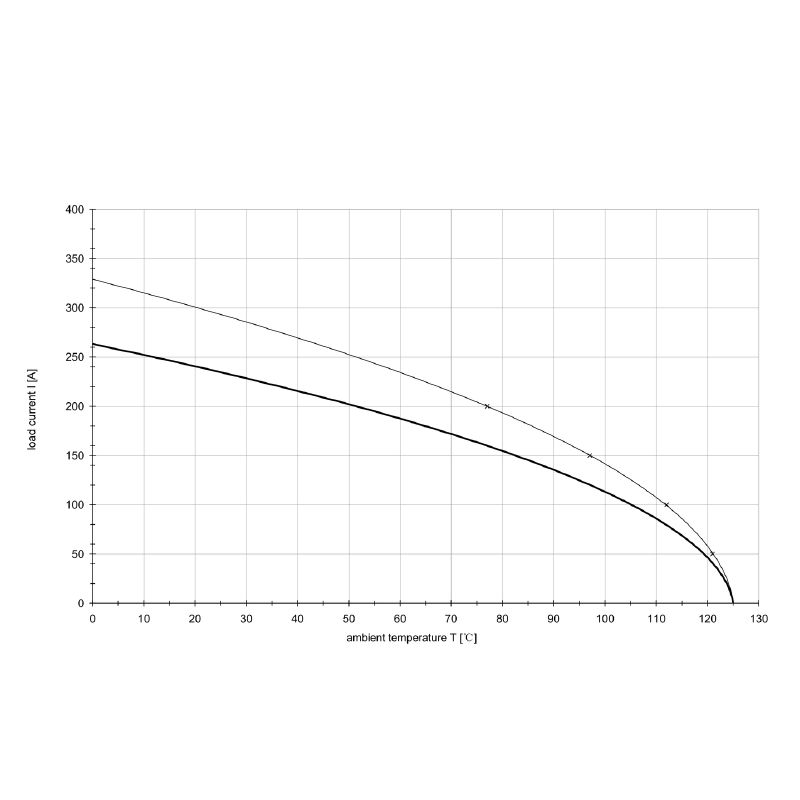

| Rated current | 200 A |
| Rated voltage | 1 500 V |
| Shock resistance | V2 |
| Surge voltage category | II |
| UL 94 flammability rating | V-0 |
| Vibration resistance | 30g |
| Volume resistance | ≥ 5000 MΩ |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_305229) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2905370000) |
| User Documentation |
[302681](https://mdcop.weidmueller.com/mediadelivery/asset/900_302681)
[Montageanleitung_WBC_P_8_200A](https://mdcop.weidmueller.com/mediadelivery/asset/900_320933) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 7.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 9.0 | EC001121 |
| ECLASS 10.0 | 27-44-03-12 |
| ECLASS 11.0 | 27-44-03-12 |
| ECLASS 12.0 | 27-44-03-12 |
| ECLASS 13.0 | 27-44-03-12 |
| ECLASS 14.0 | 27-44-03-12 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E529699 |
