Ominaisuudet
| Version | Cross-connector (terminal), when screwed in, Silver grey, 320 A, Number of poles: 3, Pitch in mm (P): 5.10, Insulated: Yes, Width: 99.3 mm |
| Order No. | 1802800000 |

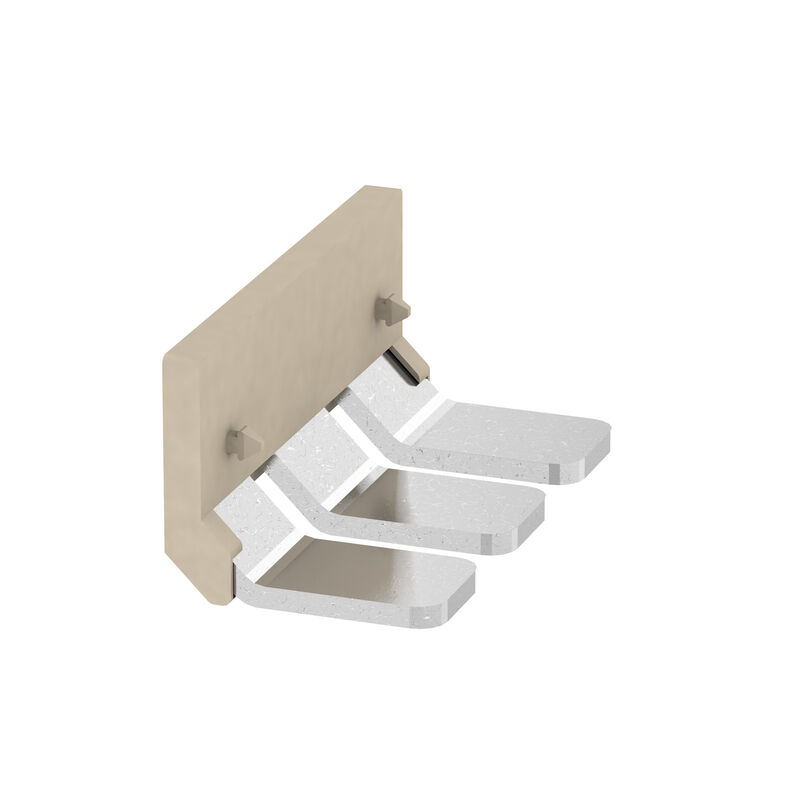

| Type | WQB 240/3 |
| GTIN (EAN) | 4032248313747 |
| Qty. | 5 items |
| Depth | 43,5 mm |
| Depth (inches) | 1,713 inch |
| Height | 49,3 mm |
| Height (inches) | 1,941 inch |
| Width | 99,3 mm |
| Width (inches) | 3,909 inch |
| Net weight | 208,56 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | tinned copper |
| Colour | Silver grey |
| Version | Cross-connector |
| Explosion-tested version | No |
| Installation advice | Feed-through (bushing) |
| Type of fixing | when screwed in |
| Type of mounting | when screwed in |
| Number of cross-connected terminals | 3 |
| Rated current, multi-pole | 320 A |
| Type | Cross-connector |
| Pitch in mm (P) | 5,1 mm |
| Installation advice | Feed-through (bushing) |
| Number of poles | 3 |
| Rated current | 320 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_236624) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1802800000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1802800000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| ROHS | Conform |
