Ominaisuudet

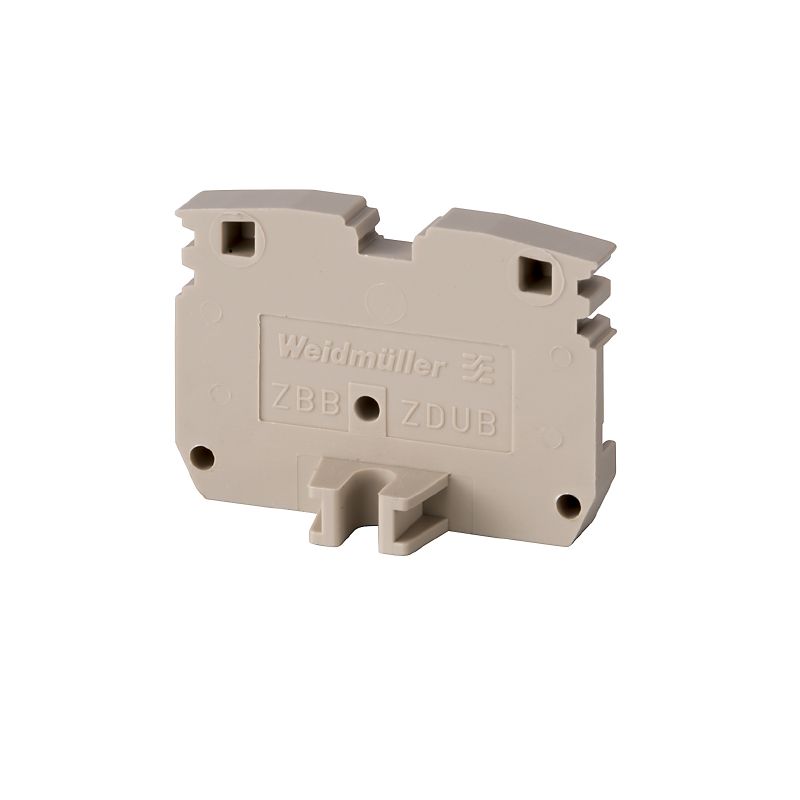

| Version | Accessories, Fixing bracket |
| Order No. | 1704740000 |
| Type | ZBB ZDUB |
| GTIN (EAN) | 4008190948399 |
| Qty. | 50 items |
| Depth | 23,8 mm |
| Depth (inches) | 0,937 inch |
| Height | 33,2 mm |
| Height (inches) | 1,307 inch |
| Width | 5,1 mm |
| Width (inches) | 0,201 inch |
| Net weight | 2,56 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 |
| Continuous operating temp., max. | 120 |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version | Mounting block |
| End cover plate required | Yes |
| Installation advice |
Direct mounting
Busbar |
| Snap-on | No |
| Installation advice |
Direct mounting
Busbar |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data |
[CAD data -- 26249_ZBB_ZDUB_DXF.dxf](https://mdcop.weidmueller.com/mediadelivery/asset/900_38056)
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_62917) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1704740000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1704740000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1704740000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-01 |
| ROHS | Conform |
On lisävaruste
-
Tuotteen tunnus:1704540000VPE:100 items
Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige, Direct mounting
-
Tuotteen tunnus:1704550000VPE:100 items
Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, blue, Direct mounting
-
Tuotteen tunnus:1704530000VPE:100 items
Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, yellow, Mounting foot needed for TS 32/ TS 35
-
Tuotteen tunnus:1704500000VPE:100 items
Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige, Direct mounting
-
Tuotteen tunnus:1704360000VPE:100 items
Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, blue, Direct mounting
-
Tuotteen tunnus:1704690000VPE:100 items
Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige, Direct mounting
-
Tuotteen tunnus:1704720000VPE:100 items
Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, yellow, Direct mounting
-
Tuotteen tunnus:1704560000VPE:100 items
Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, orange, Direct mounting
-
Tuotteen tunnus:1704570000VPE:100 items
Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, yellow, Direct mounting
-
Tuotteen tunnus:1704350000VPE:100 items
Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige, Direct mounting
-
Tuotteen tunnus:1704700000VPE:100 items
Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, blue, Direct mounting
-
Tuotteen tunnus:1704380000VPE:100 items
Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, yellow, Direct mounting
-
Tuotteen tunnus:1704370000VPE:100 items
Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, orange, Direct mounting
