Ominaisuudet

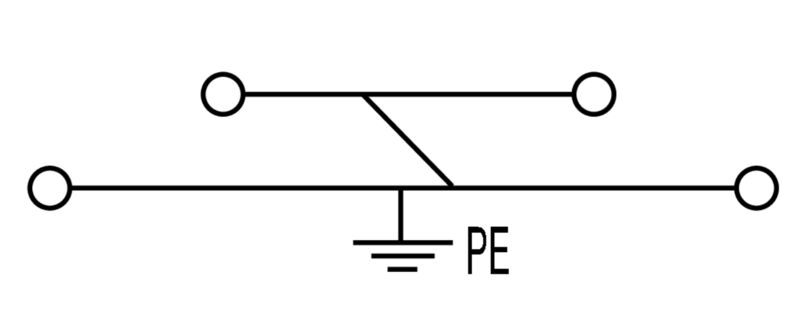

| Version | Double-tier terminal, PE terminal, Tension-clamp connection, 1.5 mm², 180 A (1.5 mm²), Green/yellow |
| Order No. | 1791150000 |
| Type | ZDK 1.5PE |
| GTIN (EAN) | 4032248239092 |
| Qty. | 50 items |
| Depth | 49,5 mm |
| Depth (inches) | 1,949 inch |
| Depth including DIN rail | 50 mm |
| Height | 75,5 mm |
| Height (inches) | 2,972 inch |
| Width | 3,5 mm |
| Width (inches) | 0,138 inch |
| Net weight | 2 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | −50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | Green/yellow |
| UL 94 flammability rating | V-0 |
| Version |
Tension-clamp connection
With PE connection One end without connector |
| End cover plate required | Yes |
| Number of levels | 2 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | Yes |
| PE connection | Yes |
| Rail | TS 35 |
| PE function | Yes |
| PEN function | No |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Number of similar terminals | 1 |
| Open sides | right |
| Type of mounting | Snap-on |
| Connection type, additional connection | Tension-clamp connection |
| Blade size | 0.4 x 2.0 mm |
| Clamping range, max. | 1,5 mm² |
| Clamping range, min. | 0,05 mm² |
| Connection cross-section, stranded, max. | 1,5 mm² |
| Connection direction | top |
| Gauge to IEC 60947-1 | B1 |
| Number of connections | 4 |
| Stripping length | 10 mm |
| Tube length for wire-end ferrule with plastic collar DIN 46228/4 |
|
| Tube length for wire-end ferrule without plastic collar DIN 46228/1 |
|
| Twin wire-end ferrules, max. | 0,75 mm² |
| Twin wire-end ferrules, min. | 0,5 mm² |
| Type of connection | Tension-clamp connection |
| Wire connection cross section AWG, max. | AWG 16 |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section, finely stranded, max. | 1,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 1,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 1,5 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Certificate No. (CSA) | 154685-1461041 |
| Wire cross section max. (CSA) | 16 AWG |
| Wire cross section min. (CSA) | 28 AWG |
| Installation advice | Direct mounting |
| Rail | TS 35 |
| Standards | IEC 60947-7-2 |
| Wire connection cross section AWG, max. | AWG 16 |
| Wire connection cross section AWG, min. | AWG 30 |
| Rated short-time current | 180 A (1.5 mm²) |
| PEN function | No |
| Rated cross-section | 1,5 mm² |
| Rated voltage to adjoining terminal | 500 V |
| Rated DC voltage | 500 V |
| Standards | IEC 60947-7-2 |
| Volume resistance according to IEC 60947-7-x | 1,83 mΩ |
| Rated impulse withstand voltage to adjacent terminal | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 0,56 W |
| Pollution severity | 3 |
| Certificate No. (cURus) | E60693 |
| Conductor size Factory wiring max. (cURus) | 16 AWG |
| Conductor size Factory wiring min. (cURus) | 28 AWG |
| Conductor size Field wiring max. (cURus) | 16 AWG |
| Conductor size Field wiring min. (cURus) | 28 AWG |
| Approval/Certificate/Document of Conformity |
[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37014)
[UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284533) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_216585) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1791150000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1791150000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1791150000&norm=0) |
| Product Change Notification |
[PCN_ZPE_Q2_2021 - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_102560)
[PCN_ZPE_Q2_2021 - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_151763) [Product Change Notification ZPE Q1/2022 DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_178202) [Product Change Notification Q1/2022 EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_178203) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 7.0 | EC000901 |
| ETIM 8.0 | EC000901 |
| ETIM 9.0 | EC000901 |
| ECLASS 11.0 | 27-14-11-41 |
| ECLASS 12.0 | 27-14-11-41 |
| ECLASS 13.0 | 27-25-01-04 |
| ECLASS 14.0 | 27-25-01-04 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
