ZDK 2.5/3AN DU-PE

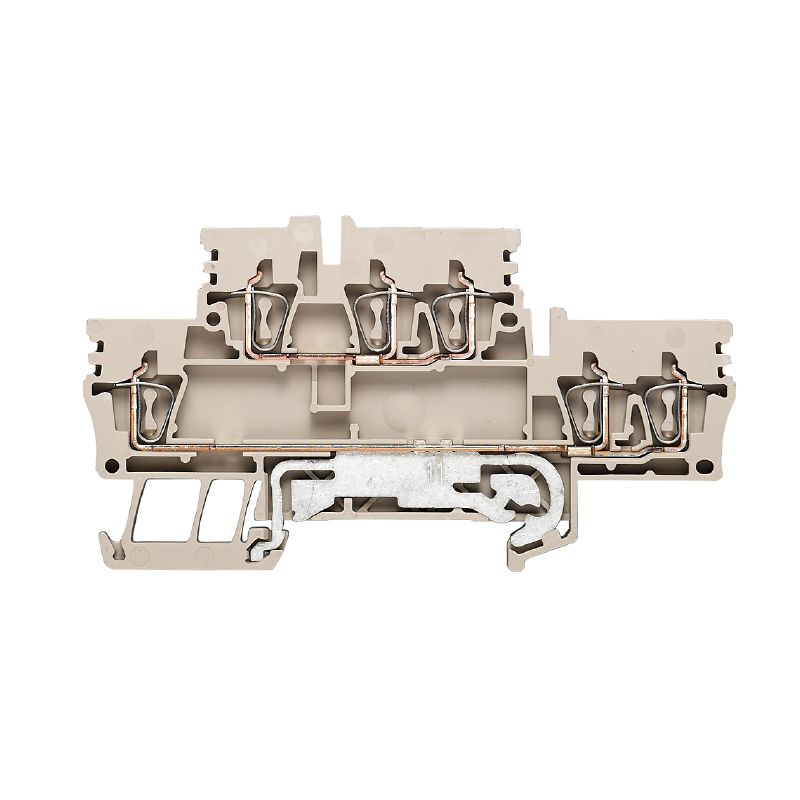

Product image
ZDK 2.5/3AN DU-PE

ZDK 2.5/3AN DU-PE

Átvezető sorkapocs, Húzórugós csatlakozás, 2.5 mm², 800 V, 24 A, sötétbézs

Tuotteen tunnus 1924460000
Avaa konfiguraattorissa
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 14 Samankaltaiset tuotteet 1068
Homologaciones Általános rendelési adatok Dimensiones y pesos Hőmérsékletek Conformidad medioambiental del producto Datos del material Datos nominales IECEx/ATEX Rendszer specifikációk Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) dane znamionowe wg CSA Dimensions General Datos nominales dane znamionowe wg UL Классификации

Homologaciones

Approvals
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/9c9311f3-ecc1-4734-91a1-2f3495436c72/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Uppfyllelse
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificat Nº (cURus)
E60693

Általános rendelési adatok

Version
Átvezető sorkapocs, Húzórugós csatlakozás, 2.5 mm², 800 V, 24 A, sötétbézs
Order No.
1924460000
Type
ZDK 2.5/3AN DU-PE
GTIN (EAN)
4032248563890
Qty.
50 items

Dimensiones y pesos

Depth
50,5 mm
Mélység (coll)
1,988 inch
Profondità inclusa guida DIN
51,5 mm
Height
93 mm
Wysokość (cale)
3,661 inch
Width
5,1 mm
Width (inches)
0,201 inch
Peso neto
18,98 g

Hőmérsékletek

Storage temperature
-25 °C...55 °C
Ambient temperature
-60 °C…85 °C
Continuous operating temp., min.
−60 °C
Continuous operating temp., max.
130 °C

Conformidad medioambiental del producto

RoHS Compliance Status
Conforme sin exención
REACH SVHC
Nej mSvHC över 0,1 viktprocent
Product Carbon Footprint
  • Cradle to gate:
    0.204 kg CO2 eq.

Datos del material

Basic material
Wemid
Color
dark beige
UL 94 flammability rating
V-0

Datos nominales IECEx/ATEX

Certificate No. (ATEX)
DEMKO16ATEX1729U
Certificate No. (IECEX)
IECEXULD16.0025U
Tensione max. (ATEX)
440 V
Current (ATEX)
21 A
Wire cross section max. (ATEX)
2.5 mm²
Max. voltage (IECEX)
440 V
Current (IECEX)
21 A
Wire cross section max. (IECEX)
2.5 mm²
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D

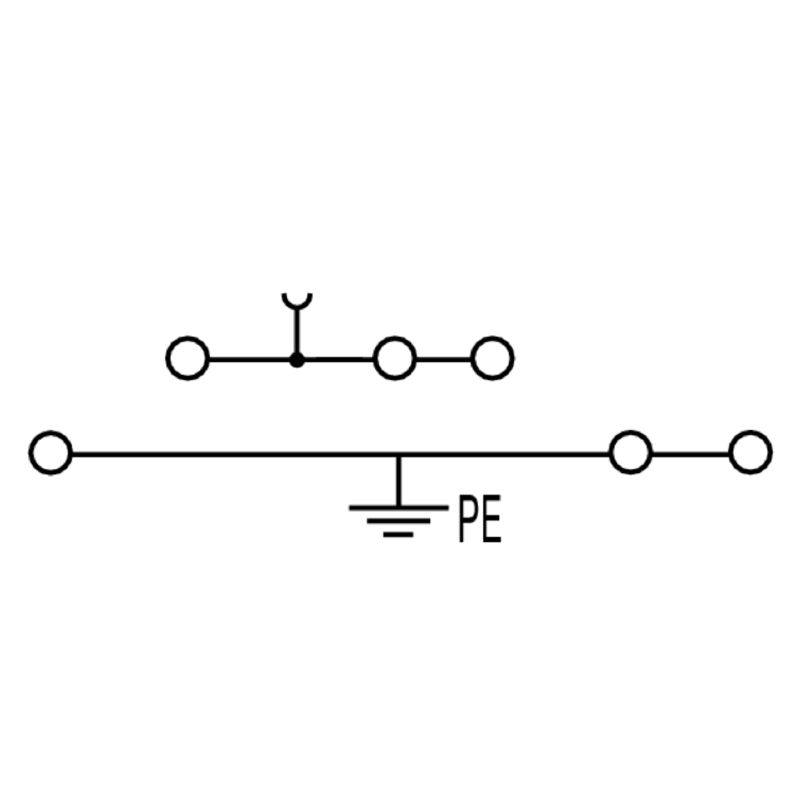

Rendszer specifikációk

Version
Húzókengyeles csatlakozás
dugaszolható keresztösszekötőhöz
PE-csatlakozással
Egyik oldalon szabad vég
Tapa final obligatoria
Tak
전위 수
2
Szintek száma
2
Number of clamping points per level
3
Levels cross-connected internally
No
PE connection
Yes
Carril de montaje
TS 35
Función PEN
No

Additional technical data

Explosion-tested version
Yes
Mounting plate every 200 mm
No
Open sides
right
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection
Tension-clamp connection

Conductors for clamping (rated connection)

Blade size
0,6 x 3,5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0,05 mm²
Connection cross-section, finely stranded, min.
0,05 mm²
Connection cross-section, stranded, max.
2,5 mm²
Connection cross-section, stranded, min.
0,05 mm²
Connection direction
top
Gauge to IEC 60947-1
A2
Number of connections
6
Stripping length
10 mm
Tube length for wire-end ferrule with plastic collar DIN 46228/4
  • Tube length:
    • min.:
      6 mm
    • max.:
      10 mm
  • Cross-section for conductor connection:
    • nominal:
      0,5 mm²
  • Tube length:
    • min.:
      6 mm
    • max.:
      10 mm
  • Cross-section for conductor connection:
    • nominal:
      0,75 mm²
  • Tube length:
    • min.:
      6 mm
    • max.:
      10 mm
  • Cross-section for conductor connection:
    • nominal:
      1 mm²
  • Tube length:
    • min.:
      8 mm
    • max.:
      10 mm
  • Cross-section for conductor connection:
    • nominal:
      1,5 mm²
  • Tube length:
    • nominal:
      8 mm
  • Cross-section for conductor connection:
    • nominal:
      2,5 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1
  • Tube length:
    • nominal:
      10 mm
  • Cross-section for conductor connection:
    • nominal:
      0,5 mm²
  • Tube length:
    • nominal:
      10 mm
  • Cross-section for conductor connection:
    • nominal:
      0,75 mm²
  • Tube length:
    • nominal:
      10 mm
  • Cross-section for conductor connection:
    • nominal:
      1 mm²
  • Tube length:
    • nominal:
      10 mm
  • Cross-section for conductor connection:
    • nominal:
      1,5 mm²
  • Tube length:
    • nominal:
      10 mm
  • Cross-section for conductor connection:
    • nominal:
      2,5 mm²
Type of connection
Tension-clamp connection
Type of connection 2
Tension-clamp connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 30
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire connection cross section, finely stranded, min.
0,05 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,05 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,05 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0,05 mm²

dane znamionowe wg CSA

Certificate No. (CSA)
200039-1842498
Current size C (CSA)
24 A
Leiterquerschnitt min (CSA)
30 AWG
Velikost proudu B (CSA)
24 A
Voltage size B (CSA)
300 V
Voltage size C (CSA)
300 V
Wire cross section max. (CSA)
12 AWG

Dimensions

TS 35 offset
25,5 mm

General

Mounting rail
TS 35
Standards
IEC 60947-7-1 (-7-2)
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 30

Datos nominales

Sección nominal
2,5 mm²
Tensión nominal
800 V
Rated voltage to adjoining terminal
800 V
Tensión nominal DC
800 V
Corriente nominal
24 A
Current at maximum wires
31 A
Normas
IEC 60947-7-1 (-7-2)
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Tension de choc nominale
8 kV
Sobretensión de choque nominal para bornes contiguos
8 kV
Pérdida de potencia según la norma IEC 60947-7-x
0,77 W
Pollution severity
3

dane znamionowe wg UL

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
30 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
30 AWG
Current size B (cURus)
20 A
Current size C (cURus)
20 A
Voltage size B (cURus)
300 V
Voltage size C (cURus)
300 V

Классификации

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-02
ECLASS 15.0
27-25-01-02
