Ominaisuudet

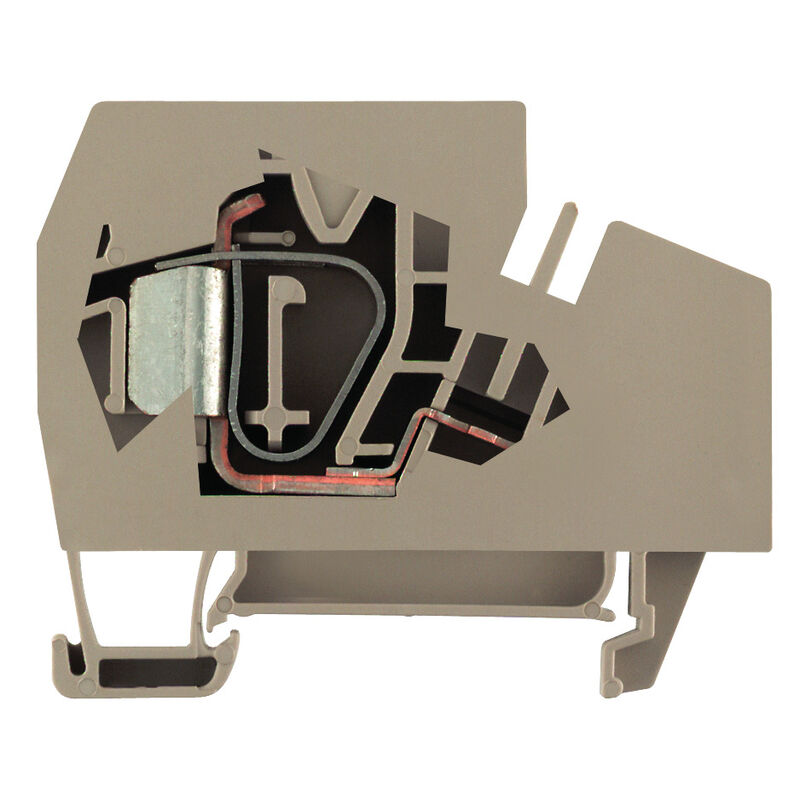

| Version | Supply terminal, Tension-clamp connection, 16 mm², 800 V, 76 A, dark beige |
| Order No. | 1772940000 |
| Type | ZEI 16-2/1AN |
| GTIN (EAN) | 4032248136568 |
| Qty. | 20 items |
| Depth | 50,5 mm |
| Depth (inches) | 1,988 inch |
| Depth including DIN rail | 51,5 mm |
| Height | 61,5 mm |
| Height (inches) | 2,421 inch |
| Width | 14 mm |
| Width (inches) | 0,551 inch |
| Net weight | 24,91 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | −50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version |
Tension-clamp connection
for plug-in cross-connector in closed state |
| End cover plate required | Yes |
| Number of levels | 1 |
| Number of clamping points per level | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| Explosion-tested version | No |
| Number of similar terminals | 1 |
| Open sides | closed |
| Type of mounting | Snap-on |
| Connection type, additional connection | Tension-clamp connection |
| Blade size | 1.0 x 5.5 mm |
| Clamping range, max. | 25 mm² |
| Clamping range, min. | 1,5 mm² |
| Connection cross-section, stranded, max. | 25 mm² |
| Connection cross-section, stranded, min. | 16 mm² |
| Connection direction | Inclined / angled |
| Gauge to IEC 60947-1 | A7 |
| Number of connections | 1 |
| Stripping length | 18 mm |
| Type of connection | Tension-clamp connection |
| Wire connection cross section AWG, max. | AWG 4 |
| Wire connection cross section AWG, min. | AWG 14 |
| Wire connection cross section, finely stranded, max. | 16 mm² |
| Wire connection cross section, finely stranded, min. | 1,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 1,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1,5 mm² |
| Wire connection cross-section, solid core, max. | 10 mm² |
| Wire connection cross-section, solid core, min. | 1,5 mm² |
| Certificate No. (CSA) | 200039-1152892 |
| Current size C (CSA) | 65 A |
| Voltage size C (CSA) | 600 V |
| Wire cross section max. (CSA) | 4 AWG |
| Wire cross section min. (CSA) | 14 AWG |
| Rail | TS 35 |
| Standards | In accordance with IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 4 |
| Wire connection cross section AWG, min. | AWG 14 |
| Rated cross-section | 16 mm² |
| Rated voltage | 800 V |
| Rated DC voltage | 800 V |
| Rated current | 76 A |
| Current at maximum wires | 76 A |
| Standards | In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0,42 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 2,43 W |
| Pollution severity | 3 |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 4 AWG |
| Conductor size Factory wiring min. (UR) | 14 AWG |
| Conductor size Field wiring max. (UR) | 4 AWG |
| Conductor size Field wiring min. (UR) | 14 AWG |
| Current size C (UR) | 65 A |
| Voltage size C (UR) | 600 V |
| Approval/Certificate/Document of Conformity |
[DNV Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_320351)
[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36792) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284531) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_224855) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1772940000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1772940000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1772940000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
| ECLASS 14.0 | 27-25-01-01 |
| Approvals |      |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
