Ominaisuudet

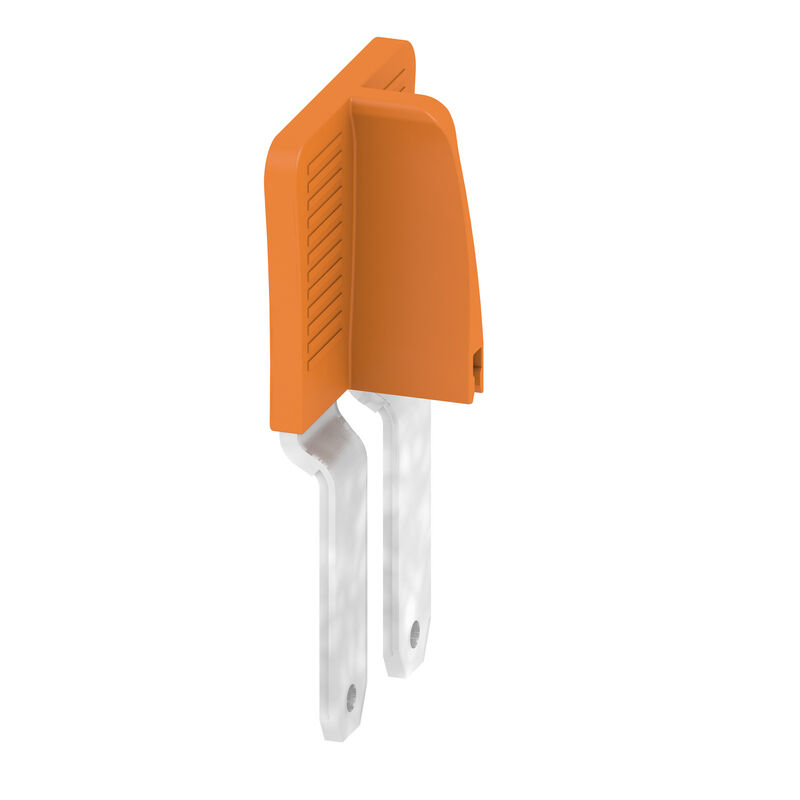

| Version | Cross-connector (terminal), Plugged, orange, 150 A, Number of poles: 2, Pitch in mm (P): 20.00, Insulated: Yes, Width: 38.13 mm |
| Order No. | 2663400000 |
| Type | ZQV 50/70N/2 |
| GTIN (EAN) | 4064675266198 |
| Qty. | 10 items |
| Depth | 17,1 mm |
| Depth (inches) | 0,673 inch |
| Height | 68,18 mm |
| Height (inches) | 2,684 inch |
| Width | 38,13 mm |
| Width (inches) | 1,501 inch |
| Net weight | 33,348 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature | -60 °C...130 °C |
| Continuous operating temp., min. | −60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | orange |
| UL 94 flammability rating | V-0 |
| Explosion-tested version | No |
| Type of fixing | Plugged |
| Type of mounting |
Plug
Plugged |
| Pitch in mm (P) | 20 mm |
| Number of poles | 2 |
| Rated current | 150 A |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205684) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2663400000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2663400000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2663400000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| ROHS | Conform |
