Ominaisuudet

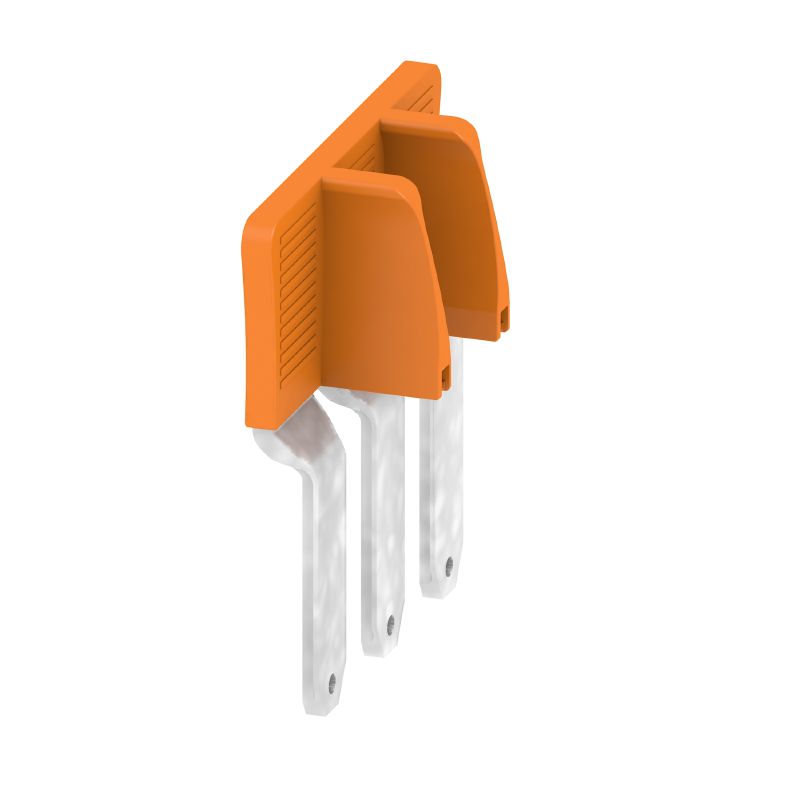

| Version | Cross-connector (terminal), Plugged, orange, 192 A, Number of poles: 3, Pitch in mm (P): 25.00, Insulated: Yes, Width: 23.1 mm |
| Order No. | 2694260000 |
| Type | ZQV 95/120N/3 |
| GTIN (EAN) | 4064675266570 |
| Qty. | 10 items |
| Width | 23,1 mm |
| Width (inches) | 0,909 inch |
| Net weight | 100,048 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature | -60 °C...130 °C |
| Continuous operating temp., min. | −60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | orange |
| UL 94 flammability rating | V-0 |
| Version | Cross-connector |
| Explosion-tested version | No |
| Type of fixing | Plugged |
| Type of mounting | Plugged |
| Pitch in mm (P) | 25 mm |
| Number of poles | 3 |
| Rated current | 192 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_244232) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2694260000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2694260000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2694260000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| ROHS | Conform |
