BLL 3.50/02/180 3.2SN OR TU
Product image
BLL 3.50/02/180 3.2SN OR TU
Product image
BLL 3.50/02/180 3.2SN OR TU
Dimensional drawing
BLL 3.50/02/180 3.2SN OR TU
Product benefits
Connection made easy
Safe board-to-board connection

BLL 3.50/02/180 3.2SN OR TU

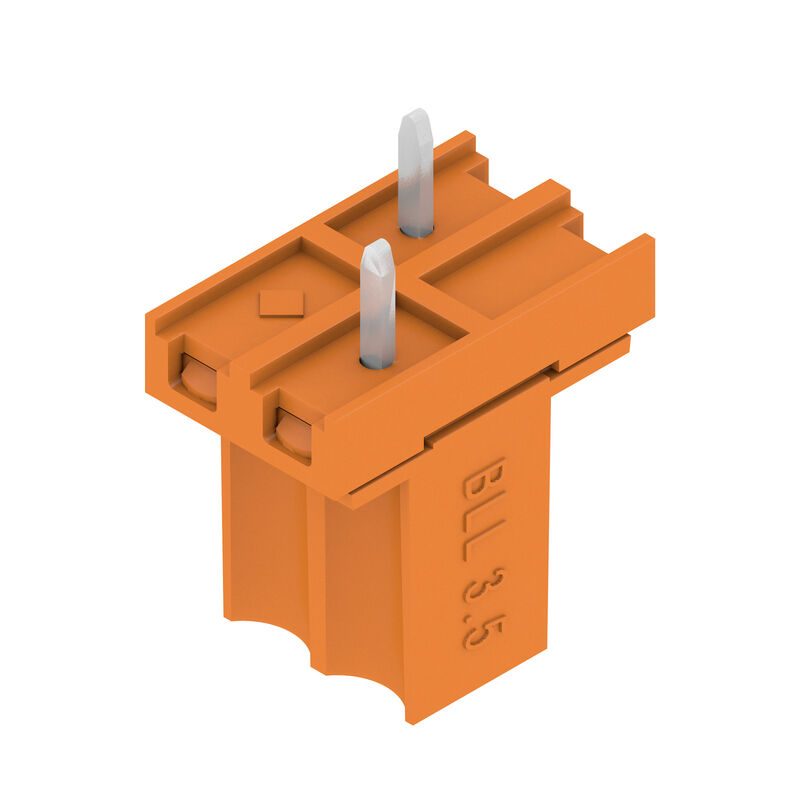

PCB plug-in connector, female header, closed side, THT solder connection, 3.50 mm, Number of poles: 2, 180°, Solder pin length (l): 3.2 mm, tinned, orange, Tube

Ürün No. 1376310000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
İlgili ürünler 16
Zulassungen General ordering data Abmessungen und Gewichte Environmental Product Compliance Systemkennwerte Werkstoffdaten Bemessungsdaten nach IEC Nenndaten nach CSA Rated data acc. to UL 1059 Verpackungen Important note Classifications

Zulassungen

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conformidad
UL File Number Search
[Sitio web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, female header, closed side, THT solder connection, 3.50 mm, Number of poles: 2, 180°, Solder pin length (l): 3.2 mm, tinned, orange, Tube
Order No.
1376310000
Type
BLL 3.50/02/180 3.2SN OR TU
GTIN (EAN)
4050118177374
Qty.
75 items
Product data
IEC: 320 V / 15.1 A
UL: 300 V / 9 A
Packaging
Tube

Abmessungen und Gewichte

Depth
11,85 mm
Depth (inches)
0,467 inch
Height
14,3 mm
Height (inches)
0,563 inch
Net weight
0,74 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Sin SVHC por encima del 0,1 % en peso

Systemkennwerte

Product family
OMNIMATE Signal - Serie BL/SL 3.50
Type of connection
Board connection
Mounting onto the PCB
Conexión por soldadura THT
Pitch in mm (P)
3,5 mm
Pitch in inches (P)
0,138 "
Outgoing elbow
180°
Number of poles
2
Number of solder pins per pole
1
Solder pin length (l)
3,2 mm
Solder pin length tolerance
+0,2 / -0,2 mm
Solder pin dimensions
d = 0,8 mm
Solder pin dimensions = d tolerance
0 / -0,03 mm
Solder eyelet hole diameter (D)
1,3 mm
Forrasztószem lyukátmérő tűrés (D)
+ 0,1 mm
L1 in mm
3,5 mm
L1, inch
0,138 "
Sorok száma
1
Érintkezősorok száma
1
Érintésvédelem a DIN VDE 57 106 szerint
Ujjak számára biztonságos
Érintésvédelem a DIN VDE 0470 szerint
IP 20 dugaszolva / IP 10 nem dugaszolva
Védelmi osztály
IP20
Térfogati ellenállás
≤5 mΩ
Kódolható
Igen
Dugaszolási erő/pólus, max.
8 N
Húzóerő / pólus, max.
7 N

Werkstoffdaten

Insulating material
PBT
Colour
orange
Colour chart (similar)
RAL 2000
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 200
UL 94 flammability rating
V-0
Contact material
Alliage de cuivre
Contact surface
étamé
Forrasztott csatlakozás rétegszerkezete
4...6 µm Sn fényes
Layer structure of plug contact
4...6 µm Sn fényes
Tárolási hőmérséklet, min.
-40 °C
Tárolási hőmérséklet, max.
70 °C
Temperatura d'esercizio , min.
-50 °C
Temperatura d'esercizio , max.
100 °C
Campo della temperatura di montaggio, min.
-25 °C
Campo della temperatura di montaggio, max.
100 °C

Bemessungsdaten nach IEC

geprüft nach Norm
IEC 60664-1
IEC 61984
Rated current at min. number of poles (Tu = 20 °C)
15,1 A
Rated current, max. number of poles (Tu=20°C)
7,7 A
Rated current, min. number of poles (Tu=40°C)
13 A
Rated current at max. number of poles (Tu = 40 °C)
6,6 A
Rated voltage for surge voltage class (pollution degree II/2)
320 V
Rated voltage for surge voltage class (pollution degree III/2)
160 V
Rated voltage for surge voltage class (pollution degree III/3)
160 V
Rated impulse voltage for surge voltage class (pollution degree II/2)
2,5 kV
Rated impulse voltage for surge voltage class (pollution degree III/2)
2,5 kV
Rated impulse voltage for surge voltage class (contamination degree III/3)
2,5 kV
Short-time withstand current resistance
3 x 1s mit 100 A

Nenndaten nach CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group C / CSA)
300 V
Rated current (Use group C / CSA)
9 A
Reference to approval values
Le specifiche indicano i valori massimi, per i dettagli fare riferimento al certificato di conformità.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
9 A
Rated current (Use group D / UL 1059)
9 A
Reference to approval values
Le specifiche indicano i valori massimi, per i dettagli fare riferimento al certificato di conformità.

Verpackungen

Packaging
Tube
VPE length
555 mm
VPE width
21 mm
VPE height
17 mm
Surface resistance
Rs = 109 - 1012 Ω

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Más variantes bajo solicitud
  • Contactos bañados en oro bajo pedido
  • Intensidad nominal relativa a la sección nominal y número mín. de polos.
  • P en el dibujo = paso
  • Los datos nom. se refieren al comp. corresp. las distancias en aire y fuga respecto a otros comp. se dimensionan s/normas aplicación relevantes.
  • De acuerdo con la norma IEC 61984, los conectores OMNIMATE son conectores sin capacidad de ruptura (COC). Durante el uso designado, no se permite que los conectores sean acoplados o desacoplados cuando estén en tensión o bajo carga
  • Almacenamiento a largo plazo del producto con una temperatura promedio de 50 °C y una humedad promedio del 70 %, 36 meses


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
