RSM-8 24V- 1CO S
RSM-8 24V- 1CO S

RSM-8 24V- 1CO S

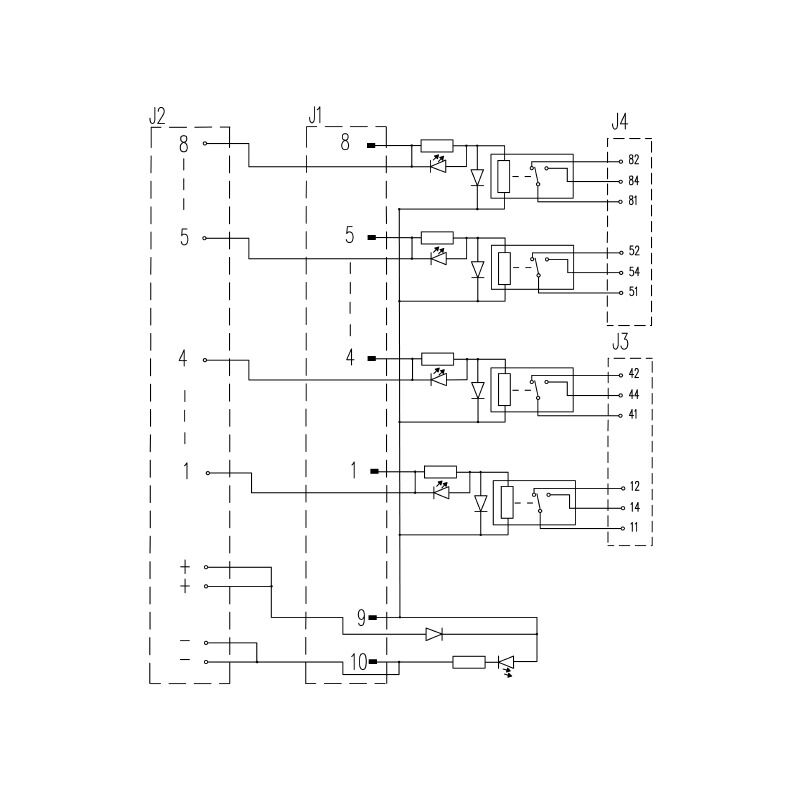

Interface, RSM, Screw connection

N. articolo 1447880000
Download foglio dati Product Downloads
Related products 36
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL General data Connection data Rating data Ratings data input Ratings data output Insulation coordination (EN50178) Insulation coordinates (EN50178) Connection field Classifications

Approvals

Homologaciones
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Сертификат № (UR)
E141197

General ordering data

Wersja
Interface, RSM, Screw connection
Číslo objednávky
1447880000
Typ
RSM-8 24V- 1CO S
GTIN (EAN)
4050118252316
Förp.
1 items
Delivery status
Discontinued

Dimensions and weights

Profundidad
66 mm
Depth (inches)
2.598 inch
높이
87 mm
Height (inches)
3.425 inch
Anchura
130 mm
Width (inches)
5.118 inch
Net weight
321 g

Temperatures

Temperatura de almacenamiento
-40...60 °C
Température de fonctionnement
-25...50 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
Esenzione RoHS (se applicabile/nota)
7a, 7cI
REACH SVHC
Lead 7439-92-1
4,4'-isopropylidenediphenol 80-05-7
SCIP
66e752f3-a24f-4fef-89c4-f29f52d01390

Rated data UL

Operating temperature UL, max.
25 °C
Operating temperature UL, min.
0 °C
Rated current IN
16.7 mA
Jmenovité napětí DC UN (napájení)
24 V
Rated current (supply)
1 A
Rated voltage DC UN (input)
24 V
Rated voltage AC UN (output)
250 V
Rated current Imax (output)
4.6 A

General data

LED status display per relay
green
LED status of the supply voltage
yellow

Connection data

Connection (field side)
LL 5.08 mm
Connection on control side
LP 5.08 + plug-in connector in acc. with IEC60603-13 / DIN41651, 10-pin
LL 5.08 mm

Rating data

Mechanical service life
30 x 106 switching cycles

Ratings data input

Input voltage
24 V DC ± 10%
Input current
16.7 mA

Ratings data output

Relay type
RCL
Type of output
Potential-free contact
Material of contacts
AgNi 90/10
Rated voltage
≤ 250 V AC
Max. AC continuous current
6 A
Minimum contact current
0.1 A
Minimum contact voltage
5 V

Insulation coordination (EN50178)

Pollution severity level
2
Pulse voltage test (1,2/50μs)
6 kV
Insulation test voltage AC
1.2 kV

Insulation coordinates (EN50178)

Rated input insulation voltage
<50 V AC
Rated output insulation voltage
250 V AC
Overvoltage category input/output
III
Overvoltage category output/output
II
Pollution severity level
2
Pulse voltage test (1,2/50μs)
6 kV
Insulation test voltage AC
1.2 kV
Clearance input/output
≥ 5.5 mm

Connection field

Clamping range, max.
6 mm²
Clamping range, min.
0.5 mm²
Flexible with sleeve, max.
2.5 mm²
Flexible with sleeve, min.
0.5 mm²
Flexible, max. H05(07) V-K
4 mm²
Flexible, min. H05(07) V-K
0.5 mm²
Max. wire cross-section, AWG
AWG 12
Min. wire cross-section, AWG
AWG 26
Sleeve with plastic collar, max.
2.5 mm²
Solid, max. H05(07) V-U
6 mm²
Solid, min. H05(07) V-U
0.5 mm²
Stripping length
6 mm
Tightening torque, max.
0.6 Nm
Tightening torque, min.
0.5 Nm
Type of connection
Screw connection

Classifications

ETIM 8.0
EC002780
ETIM 9.0
EC002780
ETIM 10.0
EC002780
ECLASS 14.0
27-14-11-52
ECLASS 15.0
27-14-11-52
