SAIL-M8GM8G-3-3.2U
SAIL-M8GM8G-3-3.2U
Dimensioned drawing
Straight socket
SAIL-M8GM8G-3-3.2U
Dimensioned drawing
Male, straight
SAIL-M8GM8G-3-3.2U
Pole scheme
Male
SAIL-M8GM8G-3-3.2U
Pole scheme
Socket
SAIL-M8GM8G-3-3.2U
Wiring diagram
Schaltbild
SAIL-M8GM8G-3-3.2U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M8GM8G-3-3.2U

Dette produkt er snart ikke længere tilgængeligt.

Last order date: /Date(1790719200000)/

Alternative product: 1824570300

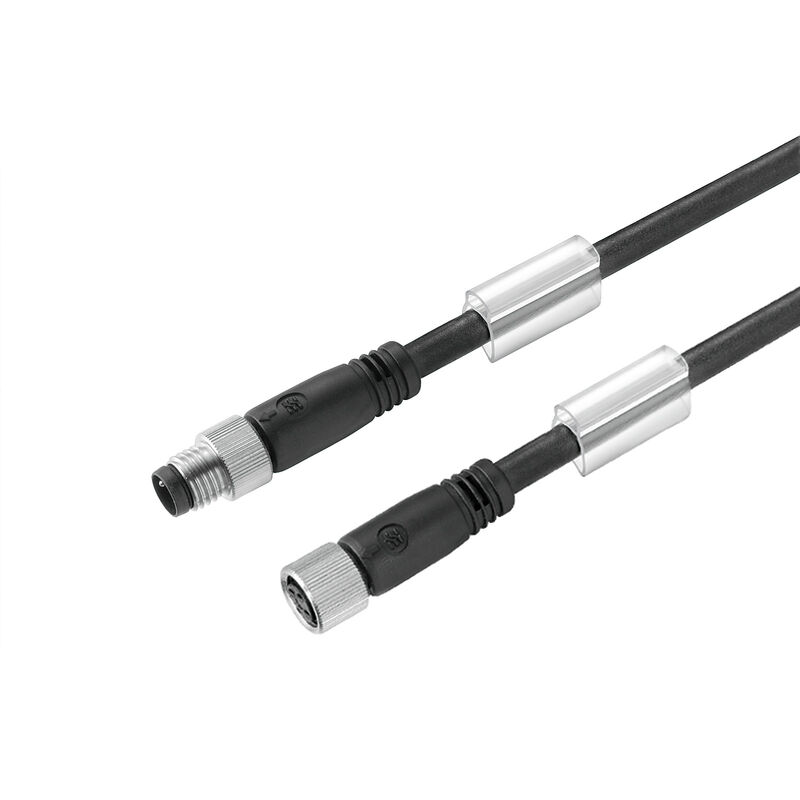

Sensor/actuator line, Connecting line, M8 / M8, Number of poles : 3, 3.2 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Produkt ID 1824570320
Download datablad Engineering-support Produktdownloads
Anvendte produkter 27
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Sensor/actuator line, Connecting line, M8 / M8, Number of poles : 3, 3.2 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1824570320
Type
SAIL-M8GM8G-3-3.2U
GTIN (EAN)
4050118566710
Qty.
1 Styk
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1790719200000)/
Alternative product
[1824570300](~/p/1824570300)

Dimensions and weights

Diameter
3,6 mm
Net weight
68,64 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Alogeni
No
Bending cycles at torsion
> 5 Mio.
Dräneringsledare integrerad
No
Färkodning
brown
blue
black
Idoneità all'installazione con catene portacavi
Yes
Konfigurowalna długość kabla
No
Köpeny színe
black (similar to RAL 9005)
Length of torsion
1 m
Longueur du câble
3.2 m
Number of poles
3
Odporne na hydrolizę i działanie mikroorganizmów
Yes
Olajokkal szembeni ellenállás
Yes
Outside diameter
3.6 mm + 0.15 mm
Prędkość
3.33 m/s
Resistance to spread of flame
in accordance with IEC 60332-2-2
In accordance with UL1581 UL / CUL FT2
Resistant to welding beads
No
Schermato
No
Sezione del conduttore
0.25 mm²
Sheath material
PUR
Temperature range, moving
-25...60 °C
Temperature range, stationary
-50...80 °C
Vridtålighet
180 °/m
Zewnętrzna okładzina zgodnie z UL AWM style
20549 (80 °C / 300 V)
Жила в соответствии с UL; проводниковые материалы для бытовых приборов (AWM)
10493 (80 °C / 300 V)
Облучение с перекрестными связями
No
Стойкость к сварочным искрам
No
加速
5 m/s²
絶縁
PP
구부림 반경, 최소, 고정
5 x cable diameter
구부림 반경, 최소, 이동
10 x cable diameter
구부림 주기
5 Mio

General technical data

Coding
A-coded
Connection thread
M8 / M8
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
LED
No
Nominal current
4 A
Nominal voltage
60 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP69
IP65
IP66
Temperature range of housing
-25…+85 °C
Threaded ring material
Brass, nickel-plated
Version
pin, straight - socket, straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
60 V

Plug, left

Plug left
M8, IP69, male contact, straight, Plastic, unshielded

Plug, right

Plug right
M8, IP69, female contact, straight, Plastic, unshielded

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
