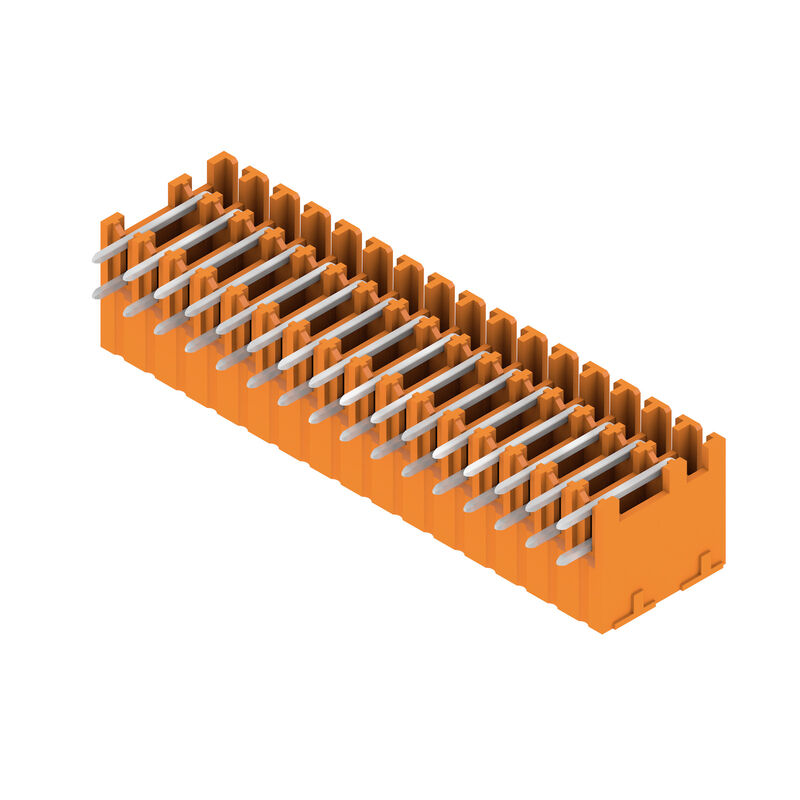

SCDN 3.81/32/90G 3.2SN OR BX
Product image

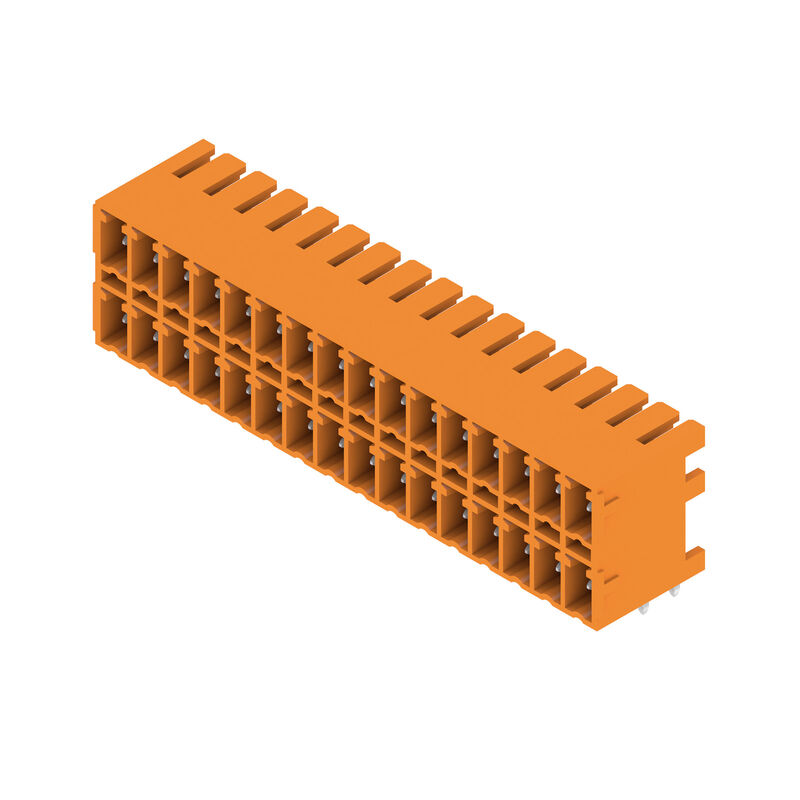

SCDN 3.81/32/90G 3.2SN OR BX
Dimensional drawing

SCDN 3.81/32/90G 3.2SN OR BX

PCB plug-in connector, male header, closed side, THT solder connection, 3.81 mm, Number of poles: 32, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Box

Ürün No. 1040570000
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 28
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

ROHS
Conform

General ordering data

Версия
PCB plug-in connector, male header, closed side, THT solder connection, 3.81 mm, Number of poles: 32, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Box
Заказ №
1040570000
Тип
SCDN 3.81/32/90G 3.2SN OR BX
GTIN (EAN)
4032248769216
Qty.
20 adet
Product data
IEC: 320 V / 17.5 A
UL: 300 V / 11 A
Packaging
Box

Dimensions and weights

Глубина
13,3 mm
Depth (inches)
0,524 inch
Высота
18,4 mm
Height (inches)
0,724 inch
Height of lowest version
15,2 mm
Ширина
62,35 mm
Width (inches)
2,455 inch
Net weight
11,5 g

Environmental Product Compliance

Состояние соответствия RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Termékcsalád
OMNIMATE Signal - series BC/SC 3.81
Csatlakozás típusa
Board connection
montaż na płytce drukowanej
THT solder connection
Raster w mm (P)
3,81 mm
Raster w calach (P)
0,15 "
90°
Number of poles
32
liczba kołków lutowanych na biegun
1
Forrasztótüske hossza (l)
3,2 mm
Tolerancja długości kołka lutowniczego
+0,02 / -0.2 mm
Solder pin dimensions
d = 1.0 mm
Octagonal
Forrasztótüske méretei=d Tűrés
0 / -0,03 mm
Solder eyelet hole diameter (D)
1,2 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
57,15 mm
L1 in inches
2,25 "
Number of rows
2
Pin series quantity
2
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Volume resistance
≤5 mΩ
Can be coded
Yes

Material data

Insulating material
PA GF
Colour
orange
Colour chart (similar)
RAL 2000
Insulating material group
II
Comparative Tracking Index (CTI)
≥ 550
UL 94 flammability rating
V-0
Contact material
Copper alloy
Contact surface
tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
17,5 A
Rated current, max. number of poles (Tu=20°C)
13,2 A
Rated current, min. number of poles (Tu=40°C)
17 A
Rated current, max. number of poles (Tu=40°C)
12,2 A
Rated voltage for surge voltage class / pollution degree II/2
320 V
Rated voltage for surge voltage class / pollution degree III/2
160 V
Rated voltage for surge voltage class / pollution degree III/3
160 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2,5 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
2,5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
2,5 kV
Short-time withstand current resistance
3 x 1s with 76 A

Rated data acc. to CSA

Napięcie znamionowe (grupa użytkowa B / CSA)
300 V
Napięcie znamionowe (grupa użytkowa D / CSA)
300 V
Prąd znamionowy (grupa użytkowa B / CSA)
11 A
Prąd znamionowy (grupa użytkowa D / CSA)
10 A

Rated data acc. to UL 1059

Névleges feszültség (B felhasználási csoport / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
11 A
Névleges áram (D felhasználási csoport/ UL 1059)
10 A

Packing

opakowanie
Box
Długość VPE
303 mm
Szerokość VPE
142 mm
Wysokość VPE
29 mm

Important note

IPC-konformitet
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Примечания
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • P on drawing = pitch
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
