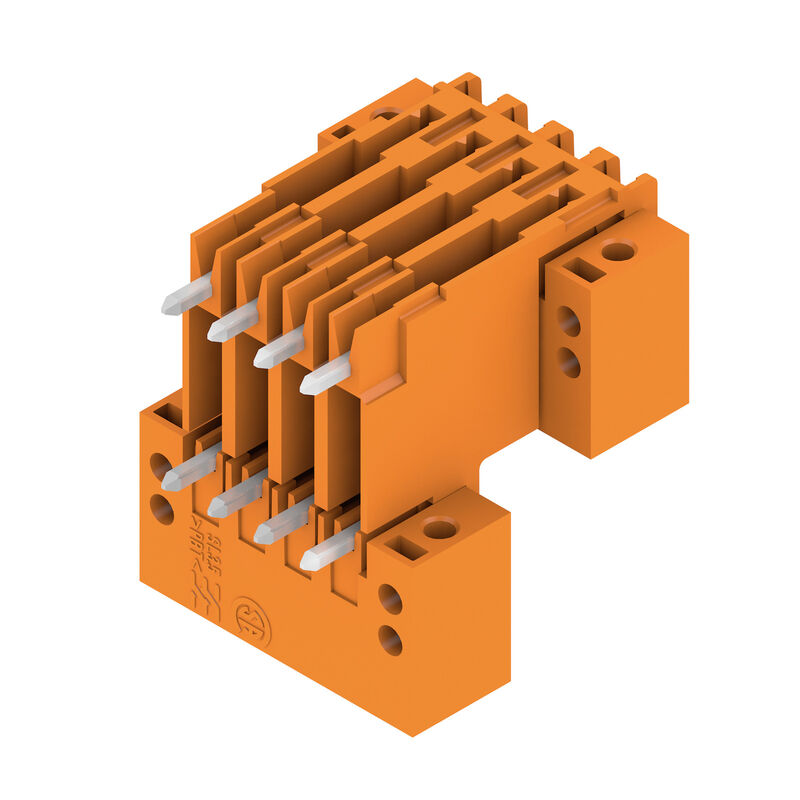

Product image
SLD 3.50 V/08/90F 3.2 SN OR BX

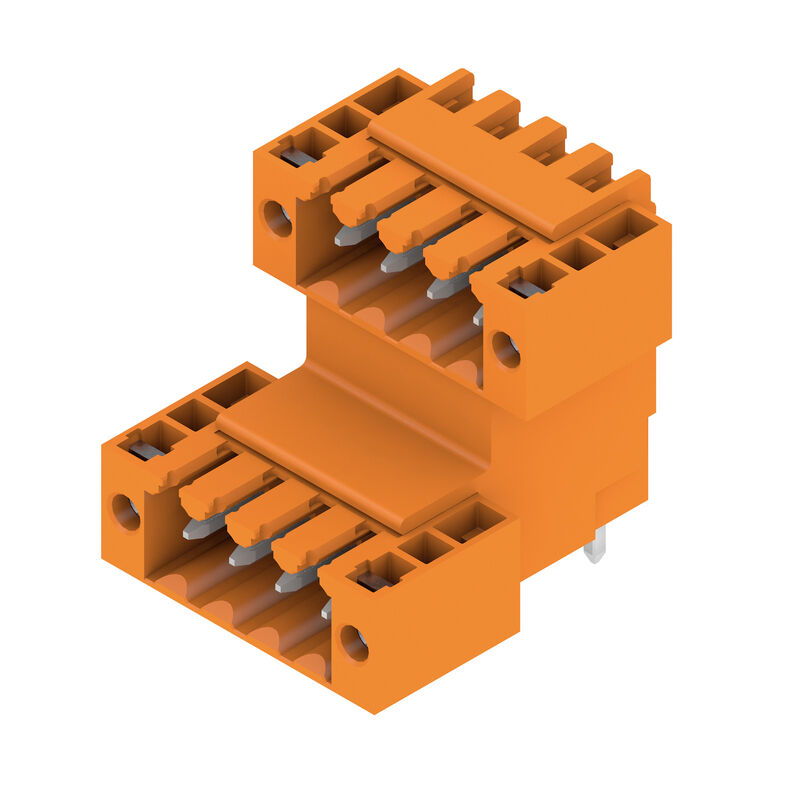

Product image
SLD 3.50 V/08/90F 3.2 SN OR BX
Dimensional drawing

SLD 3.50 V/08/90F 3.2 SN OR BX

Kretskortsstickanslutning, Stiftlist, Fläns, THT lödanslutning, 3.50 mm, Antal poler: 8, 90°, Lödstiftlängd (l): 3.2 mm, förtennad, orange, Box

Tuotteen tunnus 1642380000
Lataa tietosivu Engineering Support Produkt Downloads
Lisävarusteet 3 On vastine kohteelle 13 Samankaltaiset tuotteet 23
Approvals Основные данные для заказа Mått och vikter Environmental Product Compliance Specyfikacje systemu Material data Bemessungsdaten nach IEC CSA에 따른 정격 데이터 Rated data acc. to UL 1059 Imballaggio Important note Classifications

Approvals

Сертификаты
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

Основные данные для заказа

Версия
Kretskortsstickanslutning, Stiftlist, Fläns, THT lödanslutning, 3.50 mm, Antal poler: 8, 90°, Lödstiftlängd (l): 3.2 mm, förtennad, orange, Box
Order No.
1642380000
Type
SLD 3.50 V/08/90F 3.2 SN OR BX
GTIN (EAN)
4008190280901
Qty.
50 items
Product data
IEC: 200 V / 10.5 A
UL: 300 V / 8 A
Packaging
Box

Mått och vikter

Глубина
24.2 mm
Depth (inches)
0.953 inch
Height
25.2 mm
Height (inches)
0.992 inch
Height of lowest version
22 mm
Ширина
21 mm
Width (inches)
0.827 inch
Net weight
5.667 g

Environmental Product Compliance

Состояние соответствия RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Specyfikacje systemu

Product family
OMNIMATE Signal — серия BL/SL 3.50
Type of connection
Board connection
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
3.5 mm
Pitch in inches (P)
0.138 "
Угол вывода
90°
Number of poles
8
Количество контактных штырьков на полюс
1
Solder pin length (l)
3.2 mm
ソルダーピン長 公差
0 / -0.3 mm
Solder pin dimensions
d = 1.2 mm
Octagonal
Solder pin dimensions = d tolerance
0 / -0,03 mm
Solder eyelet hole diameter (D)
1.4 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
10.5 mm
L1 in inches
0.413 "
Number of rows
2
Pin series quantity
2
Touch-safe protection acc. to DIN VDE 57 106
finger-safe plugged/ back-of-hand-safe unplugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Volume resistance
≤5 mΩ
Can be coded
Yes
Plugging force/pole, max.
10 N
Pulling force/pole, max.
8 N
Tightening torque
  • Torque type:
    Mounting screw, PCB
  • Usage information:
    • Tightening torque:
      • min.:
        0.1 Nm
      • max.:
        0.15 Nm
    • Recommended screw:
      • Part number:
        1610740000

Material data

Insulating material
PBT
Colour
orange
Colour chart (similar)
RAL 2000
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 200
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of solder connection
2...3 µm Ni / 5...7 µm Sn glossy
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-30 °C
Temperature range, installation, max.
100 °C

Bemessungsdaten nach IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
10.5 A
Rated current, max. number of poles (Tu=20°C)
8 A
Rated current, min. number of poles (Tu=40°C)
9 A
Rated current, max. number of poles (Tu=40°C)
7 A
Rated voltage for surge voltage class / pollution degree II/2
200 V
Rated voltage for surge voltage class / pollution degree III/2
160 V
Rated voltage for surge voltage class / pollution degree III/3
125 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2.5 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
2.5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
2.5 kV
Short-time withstand current resistance
3 x 1s with 80 A

CSA에 따른 정격 데이터

Institut (CSA)
CSA
Tanúsítvány száma (CSA)
154685-1318353
Névleges feszültség (B felhasználási csoport / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Prąd znamionowy (grupa użytkowa B / CSA)
8 A
Номинальный ток (группа использования D/CSA)
8 A
Ссылка на утвержденные значения
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (UR)
UR
Certificate No. (UR)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
8 A
Rated current (Use group D / UL 1059)
8 A
Ссылка на утвержденные значения
Specifications are maximum values, details - see approval certificate.
