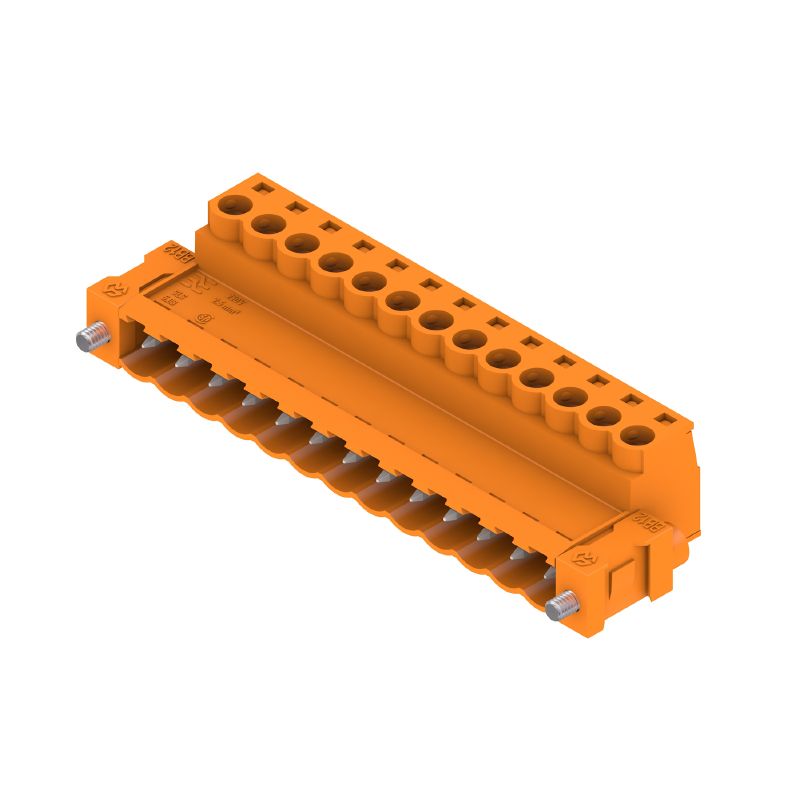

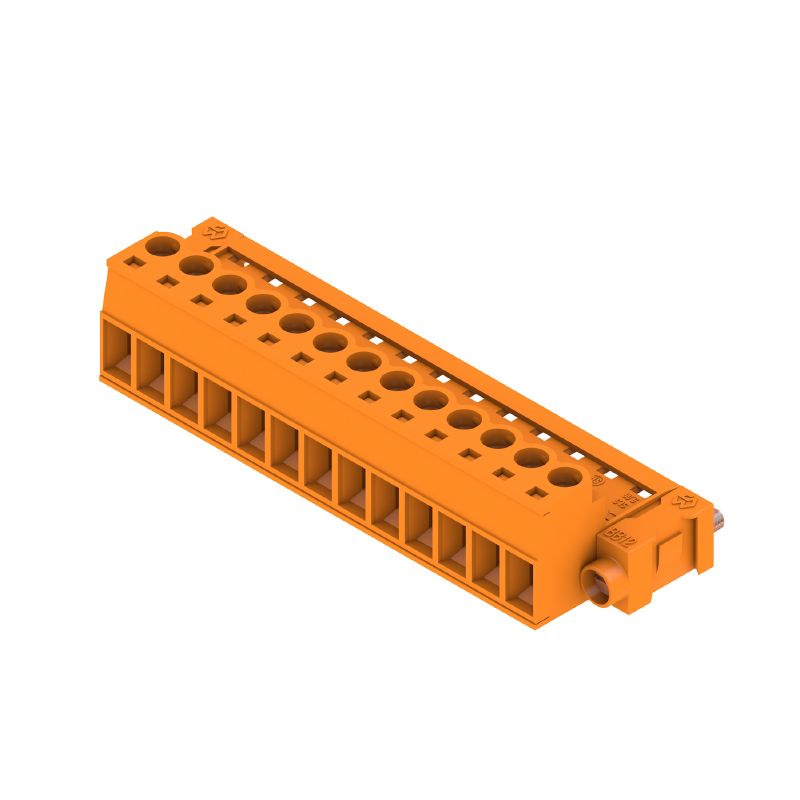

PCB plug-in connector, male plug, 5.08 mm, Number of poles: 13, 180°, Clamping yoke connection, Clamping range, max. : 3.31 mm², Box

Product ID 1846320000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 4 Is contradeel van 9 Verwante producten 15
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

General ordering data

Version
PCB plug-in connector, male plug, 5.08 mm, Number of poles: 13, 180°, Clamping yoke connection, Clamping range, max. : 3.31 mm², Box
Order No.
1846320000
Typ
SLS 5.08/13/180FI SN OR BX
GTIN (EAN)
4032248362608
Qty.
24 items
Product data
IEC: 400 V / 21.5 A / 0.2 - 2.5 mm²
UL: 300 V / 14 A / AWG 26 - AWG 12
Packaging
Box

Dimensions and weights

Depth
22,2 mm
Profondità (pollici)
0,874 inch
Height
15,3 mm
Height (inches)
0,602 inch
Čistá hmotnost
24,583 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Product family
OMNIMATE Signal - series BL/SL 5.08
Type of connection
Field connection
Wire connection method
Clamping yoke connection
Pitch in mm (P)
5,08 mm
Pitch in inches (P)
0,2 "
Conductor outlet direction
180°
Pólusszám
13
L1 in mm
60,96 mm
L1 in inches
2,4 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
finger-safe plugged/ back-of-hand-safe unplugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
when fully mounted
Volume resistance
≤5 mΩ
Can be coded
Yes
Stripping length
7 mm
Clamping screw
M 2.5
Screwdriver blade
0.6 x 3.5
Screwdriver blade standard
DIN 5264-A
Plugging cycles
25
Plugging force/pole, max.
4 N
Pulling force/pole, max.
3 N
Tightening torque
  • Torque type:
    Wire connection
  • Usage information:
    • Tightening torque:
      • min.:
        0,4 Nm
      • max.:
        0,5 Nm
  • Torque type:
    Screw flange
  • Usage information:
    • Tightening torque:
      • min.:
        0,2 Nm
      • max.:
        0,25 Nm

Material data

Izolační materiál
PBT
Barevný
orange
Barevný graf (podobné)
RAL 2000
Skupina izolačního materiálu
IIIa
Komparativní index sledování (CTI)
≥ 200
UL 94 flammability rating
V-0
Materiál kontaktu
Cu-alloy
Povrch kontaktu
tinned
Struktura vrstev kontaktu konektoru
4...8 µm Sn hot-dip tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Conductors suitable for connection

Clamping range, min.
0,13 mm²
3,31 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 12
Pevné, min. H05(07) V-U
0,2 mm²
Pevné, max. H05(07) V-U
2,5 mm²
Semi-rigide, min. H07V-R
0,2 mm²
semirrígido, máx. H07V-R
2,5 mm²
Pružné, min. H05(07) V-K
0,2 mm²
Pružné, max. H05(07) V-K
2,5 mm²
dutinkou s plastovým límcem, , DIN 46228 pt 4, min.
0,2 mm²
dutinkou s plastovým límcem, DIN 46228 pt 4, max.
2,5 mm²
s vodičem a dutinkou, DIN 46228 pt 1, min.
0,2 mm²
s vodičem a dutinkou, DIN 46228 pt 1, max.
2,5 mm²
Lehrdorn nach EN 60999 a x b; ø
2.8 mm x 2.0 mm; 2.4 mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0372600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        7 mm
    • Recommended wire-end ferrule:
      0372700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        7 mm
    • Recommended wire-end ferrule:
      0373000000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282700000
Referenční text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Jmenovitý proud, min. počet pólů (Tu=20 °C)
21,5 A
Jmenovitý proud, max. počet pólů (Tu=20 °C)
16 A
Jmenovitý proud, min. počet pólů (Tu=40 °C)
18 A
Jmenovitý proud, max. počet pólů (Tu=40 °C)
14 A
Jmenovité napětí pro třídu přepětí / stupeň znečištění II/2
400 V
Jmenovité napětí pro třídu přepětí / stupeň znečištění III/2
320 V
Jmenovité napětí pro třídu přepětí / stupeň znečištění III/3
250 V
Jmenovité impulzní napětí pro třídu přepětí / stupeň znečištění II/2
4 kV
Jmenovité impulzní napětí pro třídu přepětí / stupeň znečištění III/2
4 kV
Jmenovité impulzní napětí pro třídu přepětí / stupeň znečištění III/3
4 kV
Krátkodobý odpor proti zkratovému proudu
3 x 1s with 120 A

Rated data acc. to CSA

Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
15 A
Rated current (Use group D / CSA)
10 A
Wire cross-section, AWG, min.
AWG 26
Wire cross-section, AWG, max.
AWG 12

Rated data acc. to UL 1059

Institute (UR)
UR
Certificate No. (UR)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Intensidad nominal (Use Group B / UL 1059)
14 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 26
Wire cross-section, AWG, max.
AWG 12
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
350 mm
VPE width
135 mm
VPE height
35 mm

Type tests

Test: Durability of markings
  • Standard:
    VDE 0627 Tab. 7 item 3/6.86
  • Test:
    durability
  • Evaluation:
    passed
Test: Clampable cross section
  • Standard:
    VDE 0609 part 1 06.83, EN 60947-1 03.91
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
    • Type of conductor and conductor cross-section:
      H05V-U2.5
    • Type of conductor and conductor cross-section:
      H05V-K2.5
    • Type of conductor and conductor cross-section:
      AWG 28
    • Type of conductor and conductor cross-section:
      AWG 14
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    EN 60947-1/1991 section 8.2.4.3
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    0.7 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U2.5
    • Type of conductor and conductor cross-section:
      H07V-K2.5
  • Evaluation:
    passed
Pull-out test
  • Standard:
    EN 60947-1/1991 section 8.2.4.4
  • Requirement:
    ≥5 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/7
  • Evaluation:
    passed
  • Requirement:
    ≥50 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U2.5
    • Type of conductor and conductor cross-section:
      H07V-K2.5
    • Type of conductor and conductor cross-section:
      AWG 14/19
  • Evaluation:
    passed

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
