Propriétés
| Version | Connecteurs industriels étanches, Accessoires, Raccord à vis, Polycarbonate |
| Référence | 1045540000 |

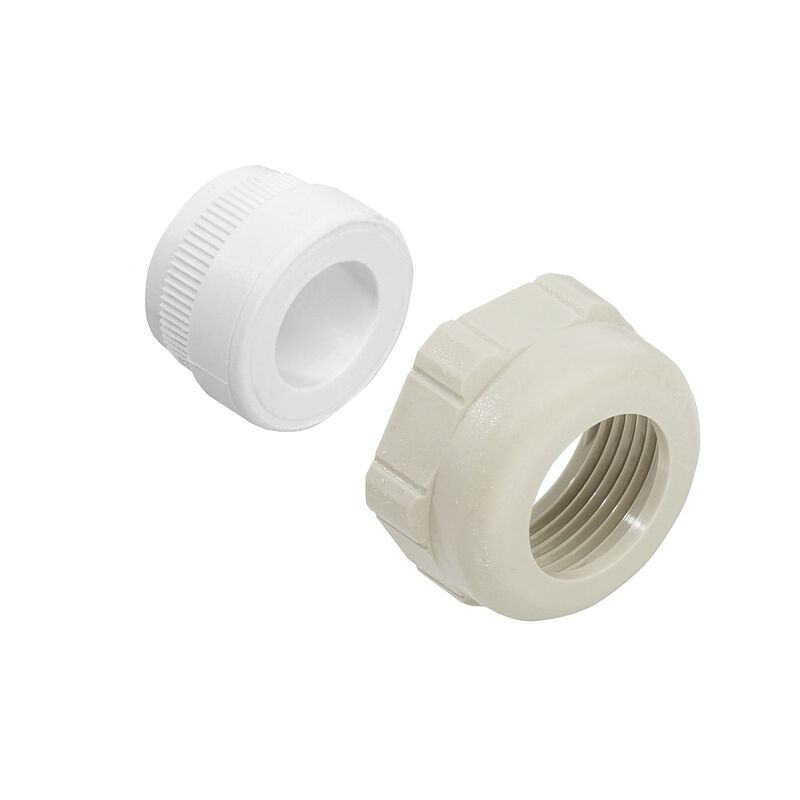

| Type | VG16 HQ K68 11,5-15,5SH |
| GTIN (EAN) | 4032248779444 |
| Qté. | 1 Pièce |
| Poids net | 5,56 g |
| Température limite | -20 °C ... 100 °C |
| REACH SVHC | / |
| Degré de protection | IP68 |
| Filetage (extérieur) | PG 16 |
| Matériau | Polycarbonate |
| Presse-étoupes | PG 16 |
| Taille de clé | 30 mm |
| Données techniques | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_224708) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1045540000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1045540000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1045540000&norm=0) |
| Notification de modification produit |
[20210205 Technical change to HQ Cable Glands](https://mdcop.weidmueller.com/mediadelivery/asset/900_190957)
[20210205 Technische Änderung zu HQ Kabelverschraubung](https://mdcop.weidmueller.com/mediadelivery/asset/900_190958) |
| Catalogue | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000441 |
| ETIM 7.0 | EC000441 |
| ETIM 8.0 | EC000441 |
| ETIM 9.0 | EC000441 |
| ECLASS 9.0 | 27-14-44-32 |
| ECLASS 9.1 | 27-14-44-32 |
| ECLASS 10.0 | 27-14-44-32 |
| ECLASS 11.0 | 27-14-44-32 |
| ECLASS 12.0 | 27-14-08-01 |
| ECLASS 13.0 | 27-14-08-01 |
| ROHS | Conforme |
