BCZ 3.81 AH11 BK BX
Product image

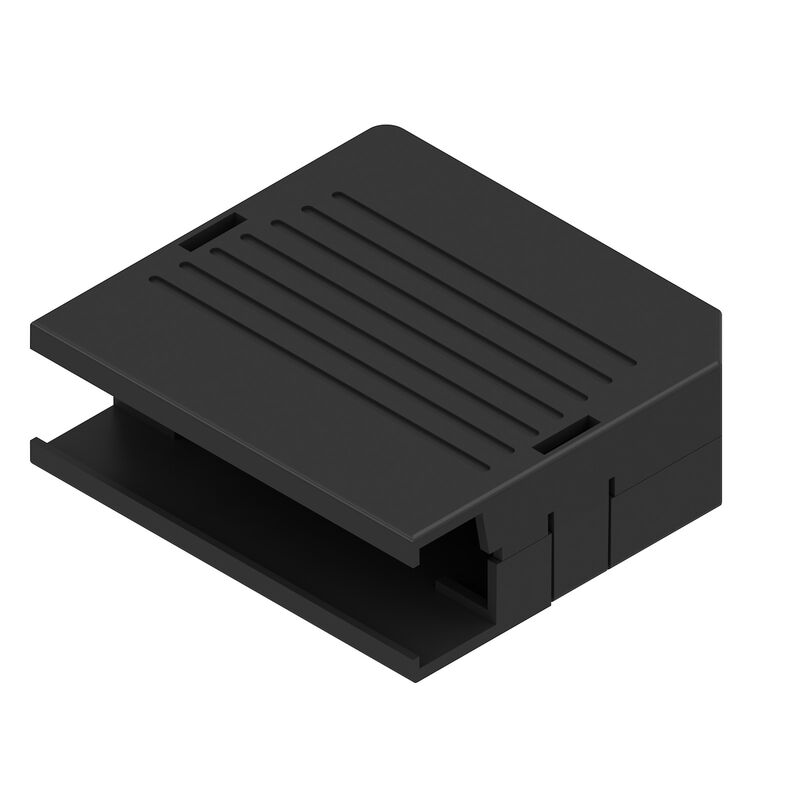

BCZ 3.81 AH11 BK BX
Product image

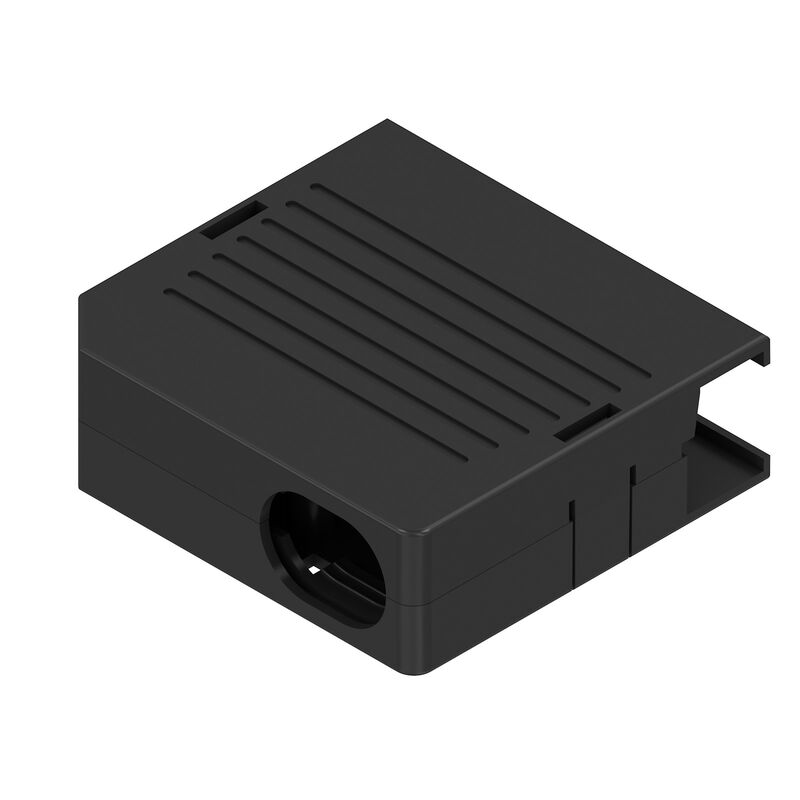

BCZ 3.81 AH11 BK BX
Example of use
BCZ 3.81 AH11 BK BX
Dimensional drawing

BCZ 3.81 AH11 BK BX

PCB plug-in connector, Accessories, Hood, black, Number of poles: 11

Ürün No. 1005360000
Veri sayfasını indir Engineering Support Product Downloads
aksesuarıdır 7 İlgili ürünler 37
승인 Allgemeine Bestelldaten Dimensions and weights Umweltanforderungen System specifications Údaje o materiálu Rated data acc. to IEC Balení Important note Clasificaciones

승인

ROHS
준수

Allgemeine Bestelldaten

Version
PCB plug-in connector, Accessories, Hood, black, Number of poles: 11
Order No.
1005360000
Type
BCZ 3.81 AH11 BK BX
GTIN (EAN)
4032248752584
Кол.
10 Штука
Продуктное отношение

Упаковка
Box

Dimensions and weights

Net weight
8,1 g

Umweltanforderungen

RoHS Compliance Status
Konform ohne Ausnahme
REACH SVHC
0.1 wt% 이상의 SVHC 없음

System specifications

Product family
OMNIMATE Signal - Serie BC/SC 3.81
Pitch in mm (P)
3,81 mm
Шаг в дюймах (P)
0,15 "
Number of poles
11
L1 in inches
0,15 "
Pin series quantity
1
Tightening torque
  • Torque type:
    Cover screw
  • Usage information:
    • Tightening torque:
      • min.:
        0,4 Nm
      • max.:
        0,5 Nm

Údaje o materiálu

Insulating material
PA 66 GF 30
Colour
black
Colour chart (similar)
RAL 9011과 유사
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984

Balení

Packaging
Box
VPE length
280 mm
VPE width
210 mm
VPE height
153 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • 평균 온도 50 °C 및 최대 습도 70% 조건에서 36개월간 제품 장기 보관


Clasificaciones

ETIM 8.0
EC002943
ETIM 9.0
EC002943
ETIM 10.0
EC002943
ECLASS 14.0
27-46-04-05
ECLASS 15.0
27-46-04-05
