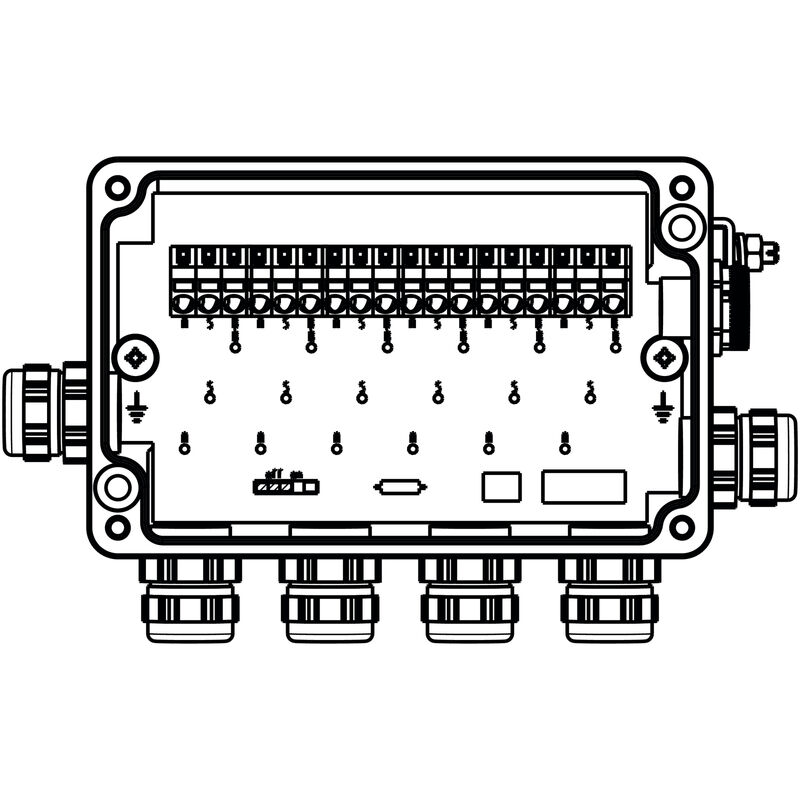

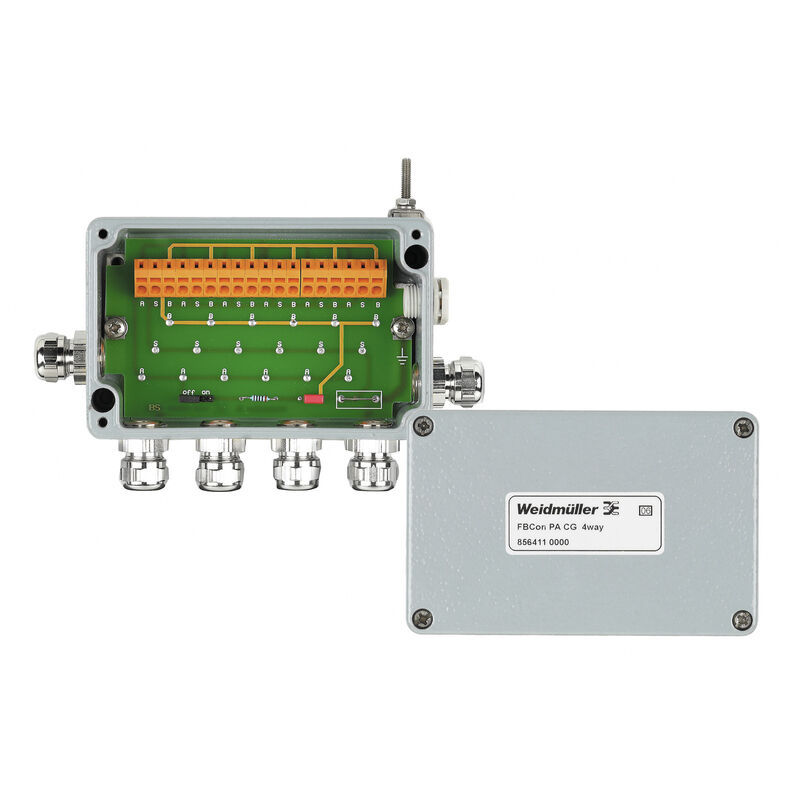

Standard distributor with bus termination (active), 4-way distributor, IP65, IP66, Round

Tuotteen tunnus 8564110000
Lataa tietosivu Tekninen tuki Ohjelmistotuki Tuotelataukset
Lisävarusteet 4 Samankaltaiset tuotteet 22
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Connection data Technical data Part description Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Zertifikat-Nr. (cULus)
E141197

General ordering data

Ausfuehrung
Standard distributor with bus termination (active), 4-way distributor, IP65, IP66, Round
Best.-Nr.
8564110000
Art
FBCON PA CG 4WAY
GTIN (EAN)
4032248235704
Qty.
1 items

Dimensions and weights

Tiefe
34 mm
Depth (inches)
1,339 inch
Höhe
37 mm
Height (inches)
1,457 inch
Breite
80 mm
Width (inches)
3,15 inch
Net weight
684 g

Temperatures

Lagertemperatur
-40 °C...80 °C
Umgebungstemperatur
-40 °C…80 °C
Betriebstemperatur
-40 °C...80 °C
Humidity
5...95 %, no condensation

Probability of failure

SIL gemäß IEC 61508
None

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant with exemption
RoHS-Ausnahme (falls zutreffend/bekannt)
6c, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
3a5f5913-76fc-4ff5-8563-4463f80bbe02

Connection data

Clamping range, min.
4 mm²
Clamping range, max.
6 mm²

Technical data

Bus system
Profibus PA
Fieldbus Foundation
Cable entry
Kerek
Cable glands
황동 케이블 글랜드
Conductor O.D., max.
9,5 mm
Conductor O.D., min.
6,5 mm
Connection type PE
Spur line with cable gland
Contact carrier material
Brass
Contact material
CuZnAu
Design of housing
With pressure compensation element
Housing main material
Aluminium
AISi12
Aluminum
Housing surface
powder coating
Number of contact sockets
4
Number of poles
3
Operating voltage
30 V
Operating voltage Umax, max.
30 V DC
Pollution severity
3
Protection degree
IP65
IP66
Type of distribution
4-way distributor
Type of mounting
surface-mounted

Part description

Produktbeschreibung

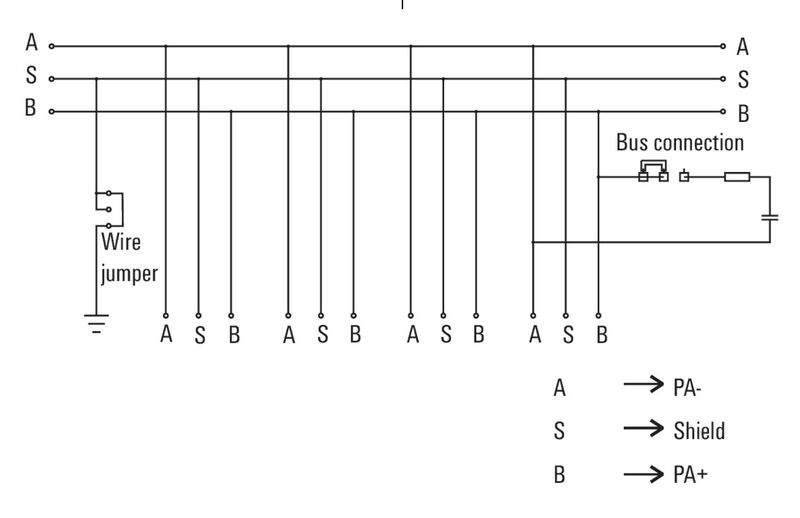

The device is a passive field distributor for the fieldbus systems Profibus PA and Foundation Fieldbus H1. The device complies with protection class IP66/IP67. Functional description The device connects up to eight field devices with a fieldbus segment. The device supports earthing concepts with multi-point screen earthing or single-point screen earthing. The earthing concepts are explained in the Profibus PA and Foundation Fieldbus guidelines.

Classifications

ETIM 8.0
EC001604
ETIM 9.0
EC001604
ETIM 10.0
EC001604
ECLASS 14.0
27-44-01-11
ECLASS 15.0
27-44-01-11
