Properties
Version | HDC enclosures |
Order No. | 1479130000 |

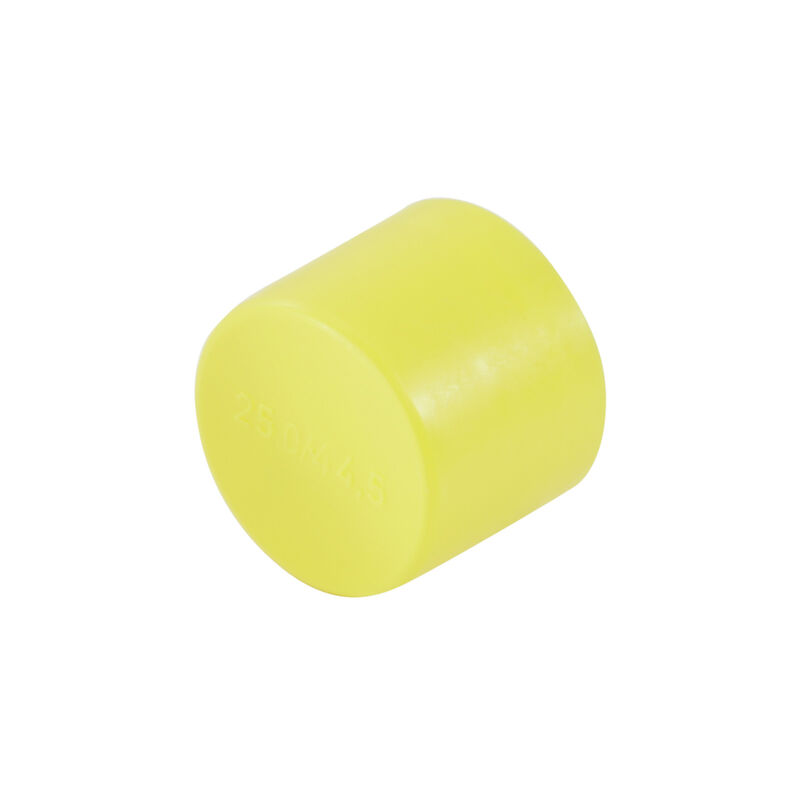

Type | HDC HP SUKA 1P 550A |
GTIN (EAN) | 4050118373608 |
Qty. | 10 items |
Net weight | 12 g |
Colour | yellow |
Material | Polyethylene LD |
Protection degree | IP20 |
Colour | yellow |
Material | Polyethylene LD |
Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_310603) |
Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1479130000) |
WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1479130000&norm=0) |
Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
ETIM 6.0 | EC002943 |
ETIM 7.0 | EC002943 |
ETIM 8.0 | EC002943 |
ETIM 9.0 | EC002943 |
ECLASS 9.0 | 27-44-02-92 |
ECLASS 9.1 | 27-44-01-92 |
ECLASS 10.0 | 27-44-02-92 |
ECLASS 11.0 | 27-44-02-92 |
ECLASS 12.0 | 27-44-02-92 |
ECLASS 13.0 | 27-44-02-92 |
ROHS | Conform |
Is accessory of
-
Item No.:1506860000Packaging unit:1 PC
RockStar® HDC kits-Heavy-duty connectors, Plug-in connector, HighPower, 1500 V, 550 A, diecast aluminium, Plug housing
-
Item No.:1488220000Packaging unit:1 PC
HDC kits, 1500 V, 550 A, Number of poles: 1, Crimp connection
-
Item No.:1506850000Packaging unit:1 PC
HDC kits, 1500 V, 550 A, Number of poles: 3, Crimp connection
-
Item No.:1470130000Packaging unit:1 PC
HDC kits, 1500 V, 550 A, Number of poles: 1, Crimp connection
