Ominaisuudet

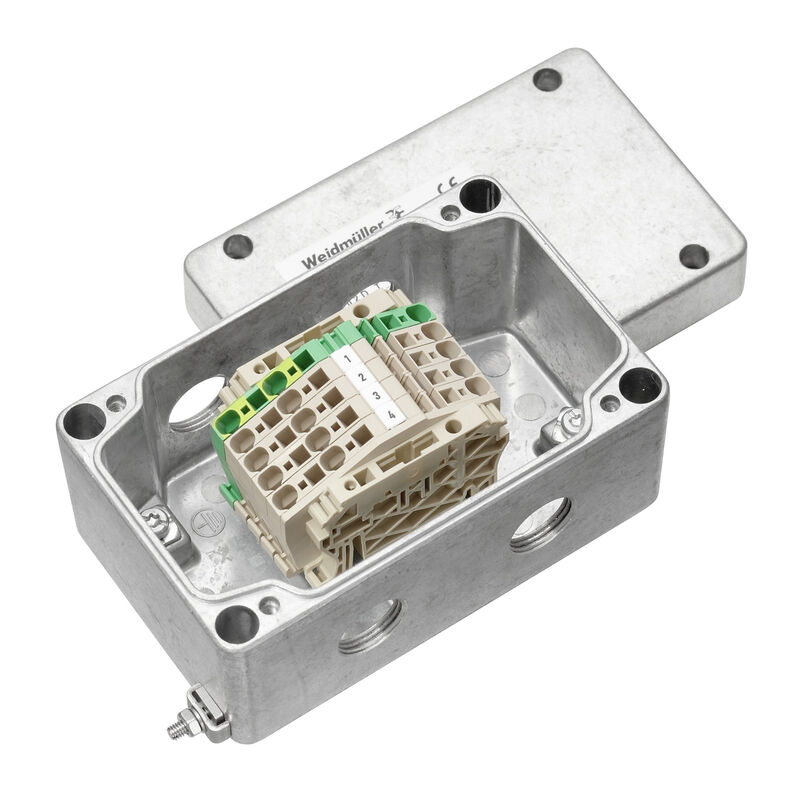

| Version | Terminal Box, ATEX ll 2GD T85°C Ex e ll T6, KLIPPON K4 EX, KL SET 4Z4 S, Drill holes side A: 2 x M20x1.5, Drill holes side B: 2 x M20x1.5 |
| Order No. | 8000004217 |
| Type | KLIPPON K4 M20ZCSS EX |
| GTIN (EAN) | 4032248986651 |
| Qty. | 1 items |
| Depth | 72 mm |
| Depth (inches) | 2,835 inch |
| Height | 82 mm |
| Height (inches) | 3,228 inch |
| Width | 130 mm |
| Width (inches) | 5,118 inch |
| Net weight | 1 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Certificate no. Terminal Box (ATEX) | IBExU12ATEX1145 X |
| Certificate no. Terminal Box (IECEx) | IECEx IBE 13.0002X |
| Material | Aluminium AlSi12 |
| Surface finish | untreated |
| Protection degree |
IP66
IP67 |
| Drill holes side A | 2 x M20x1.5 |
| Drill holes side B | 2 x M20x1.5 |
| Material | Aluminium AlSi12 |
| Version | ATEX ll 2GD T85°C Ex e ll T6 |
| Approval/Certificate/Document of Conformity |
[IBEXU12ATEX1145X](https://mdcop.weidmueller.com/mediadelivery/asset/900_157739)
[IECEXIBE13.0002X](https://mdcop.weidmueller.com/mediadelivery/asset/900_157741) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002503 |
| ETIM 7.0 | EC002503 |
| ETIM 8.0 | EC002503 |
| ETIM 9.0 | EC002503 |
| ETIM 10.0 | EC002503 |
| ECLASS 9.0 | 27-18-05-02 |
| ECLASS 9.1 | 27-18-05-90 |
| ECLASS 10.0 | 27-18-05-02 |
| ECLASS 11.0 | 27-18-05-02 |
| ECLASS 12.0 | 27-18-05-02 |
| ECLASS 13.0 | 27-18-05-02 |
| ECLASS 14.0 | 27-18-05-02 |
| ECLASS 15.0 | 27-18-05-02 |
| ROHS | Conform |
Lisävarusteet
-
Tuotteen tunnus:2066730000VPE:100 items
VPK EX 7J (Ex blanking plug, plastic, 7J), Blanking plug, in closed state, M 20, 11 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6
Cable Entry Systems and ComponentsCable GlandsSupplemental accessoriesBlanking plugsPlastic blanking plugs Ex e/i 7 Joule
Samankaltaiset tuotteet
-
Tuotteen tunnus:9526910000VPE:1 items
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 82 mm, Width: 130 mm, Depth: 72 mm, Material: Aluminium AlSi12, untreated, silver
Enclosure Systems and ComponentsAluminium enclosuresKlippon® K 4 - 82 x 130 x 72 mm
