RS 8AIO I-M-DP SD S
RS 8AIO I-M-DP SD S

RS 8AIO I-M-DP SD S

Interface, RS, Spacer, 2-wire, Screw connection

Produkt ID 9448110000
Download datablad Engineering Support Product Downloads
Anvendte produkter 13
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL General data Connection data Ratings data Insulation coordination (EN50178) Connection field Supply connection Classifications

Approvals

Dopuszczenia
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E141197

General ordering data

Versión
Interface, RS, Spacer, 2-wire, Screw connection
Order No.
9448110000
Art
RS 8AIO I-M-DP SD S
GTIN (EAN)
4032248253418
Cantidad
1 Styk

Dimensions and weights

Depth
81 mm
Depth (inches)
3,189 inch
Height
109 mm
Height (inches)
4,291 inch
Szélesség
114 mm
Width (inches)
4,488 inch
Net weight
372 g

Temperatures

보관 온도
-40...60 °C
Рабочая температура
-20...50 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6aI, 6c
REACH SVHC
Lead 7439-92-1
SCIP
7b5ffb72-271d-4c73-8b09-bd0aaee3697a

Rated data UL

Operating temperature UL, max.
25 °C
Operating temperature UL, min.
0 °C
Rated current IN
0,5 A
Jmenovitý proud Imax.
0,5 A
Rated voltage UN
≤ 25 V AC 50 V DC
Bemessungsspannung DC UN (Versorgung)
24 V
Rated current (supply)
3 A
Rated voltage fuse UN (supply)
250 V
Fusible de corriente nominal (alimentación)
3,15 A

General data

LED status display per channel
No
Disconnection per channel
Yes
Voltage point of measurement
Yes
Current-measuring testpoint
Yes
Type of test point
Diameter: 4 mm
LED status of the supply voltage
No
Power supply fuse
3.15 A
Common pole polarity
Positive or negative can be selected using jumper

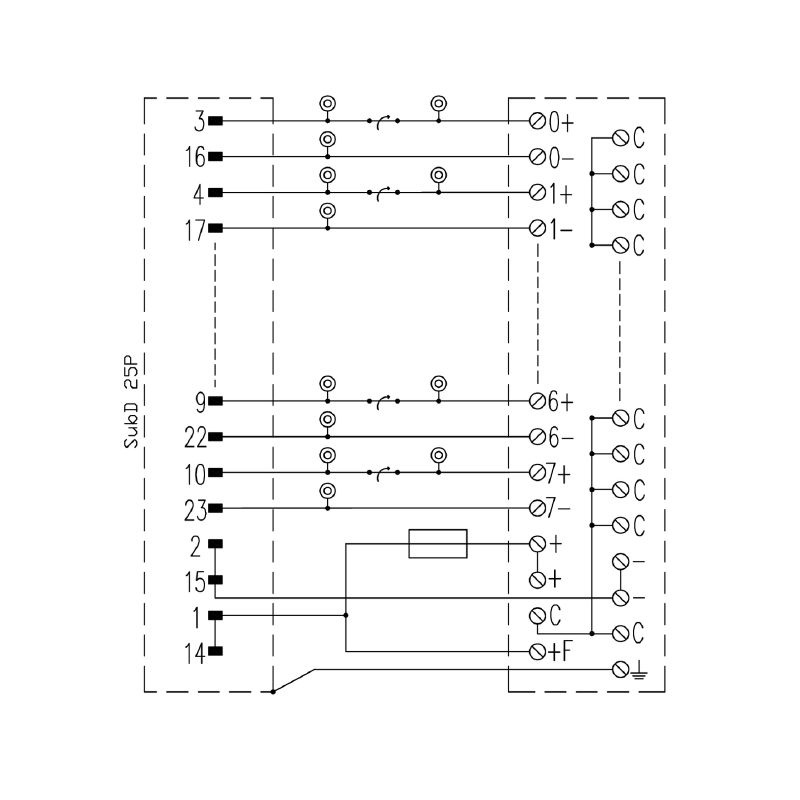

Connection data

Connection (field side)
LP2N 5.08mm
Connection on control side
D-sub connectors, acc. to IEC 60807 / DIN 41652
Connection supply
LL2N 5.08 mm
Number of poles (control side)
25-pole plug
Protective earth connection
Shielding in SUB-D plug-in connector
Wiring system
2-wire

Ratings data

Operating voltage
≤ 25 V AC / 50 V DC
Max. current for common pole
3.15 A
Max. current per channel
0,5 A

Insulation coordination (EN50178)

According to
DIN EN 50178
Rated insulation voltage
<50 V AC
Surge voltage category
III
Pollution severity level
2
Pulse voltage test (1,2/50μs)
0,8 kV
Insulation test voltage AC
0,35 kV

Connection field

Clamping range, max.
6 mm²
Clamping range, min.
0,13 mm²
Flexible with sleeve, max.
2,5 mm²
Flexible with sleeve, min.
0,5 mm²
Flexible, max. H05(07) V-K
4 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Max. wire cross-section, AWG
AWG 12
Min. wire cross-section, AWG
AWG 26
Sleeve with plastic collar, max.
2,5 mm²
Solid, max. H05(07) V-U
6 mm²
Solid, min. H05(07) V-U
0,5 mm²
Stripping length
6 mm
Tightening torque, max.
0,6 Nm
Tightening torque, min.
0,5 Nm
Type of connection
Screw connection

Supply connection

Type of connection
Screw connection
Clamping range, min.
0,13 mm²
Clamping range, max.
6 mm²
Solid, min. H05(07) V-U
0,5 mm²
Solid, max. H05(07) V-U
6 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Flexible, max. H05(07) V-K
4 mm²
Flexible with sleeve, max.
2,5 mm²
软导线带管状端头，最小接线面积
0,5 mm²
Ferrule with plastic collar, max.
2,5 mm²
Wire cross-section, min. AWG
AWG 26
Wire cross-section, max. AWG
AWG 12
Tightening torque, min.
0,5 Nm
Tightening torque, max.
0,6 Nm
Stripping length
6 mm

Classifications

ETIM 8.0
EC002780
ETIM 9.0
EC002780
ETIM 10.0
EC002780
ECLASS 14.0
27-14-11-52
ECLASS 15.0
27-14-11-52
