SAIL-M12GM12G-4-5.5U
SAIL-M12GM12G-4-5.5U
Dimensioned drawing
Male, straight
SAIL-M12GM12G-4-5.5U
Dimensioned drawing
Straight socket
SAIL-M12GM12G-4-5.5U
Pole scheme
M12 = A-coded
SAIL-M12GM12G-4-5.5U
Pole scheme
M12 = A-coded
SAIL-M12GM12G-4-5.5U
Wiring diagram

SAIL-M12GM12G-4-5.5U

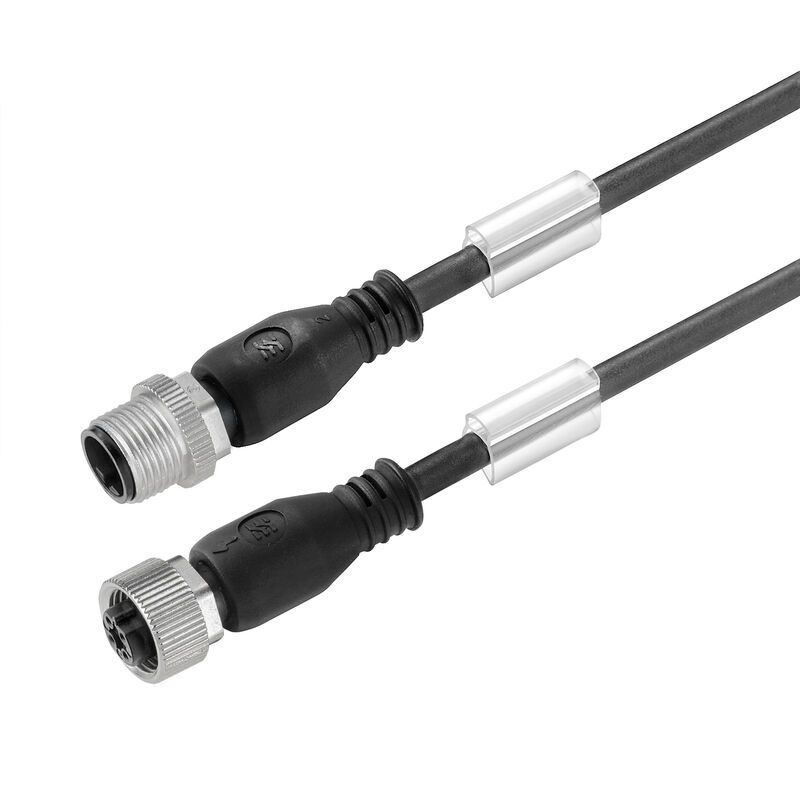

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 5.5 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Item No. 1906300550
Download data sheet Engineering Support Product Downloads
Related products 69
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 5.5 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1906300550
Type
SAIL-M12GM12G-4-5.5U
GTIN (EAN)
4050118626599
Qty.
1 items

Dimensions and weights

Net weight
4.4 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles
12 Mio
Bending cycles at torsion
> 5 Mio.
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Bez LABS
Yes
Cable length
5.5 m
Core cross-section
0.34 mm²
Halogen
No
Hydrolýza a odolnost proti mikrobům
Yes
Insulation
PP
Irradiazione con legami trasversali
No
Konfigurovatelná délka kabelu
Yes
Length of torsion
1 m
Mantel nach UL AWM style
20549 (80 °C / 300 V)
Materiál pláště
PUR
Number of poles
4
Number of wires
4
Núcleo de conformidad con el estilo UL AWM
10493 (80 °C / 300 V)
Odporność na iskry spawalnicze
No
Outside diameter
4.1 mm + 0.15 mm
Resistance to oils
Yes
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Resistant to welding beads
No
Rychlost
3.33 m/s
Sheathing colour
black (similar to RAL 9005)
Shielded
No
Suitable for cable carriers
Yes
Temperature range, moving
-25...60 °C
Temperature range, stationary
-50...80 °C
Vridtålighet
180 °/m
Цветовая кодировка
brown
white
blue
black

General technical data

IP65
IP66
IP67
IP68
when screwed in
IP69
Connection thread
M12 / M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Shock and vibration proof according to
Section B
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Version
pin, straight - socket, straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250 V

Standards

Shock and vibration proof according to
Section B

Plug, left

Plug left
M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Plug right
M12, A-coded, IP69, female contact, straight, Plastic, unshielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
